White Powder Painted Steel 4000K 5000K Linear Bay LED Light 130W 140W 21450LM 28050LM
Product Description:
The Noonlight Linear Highbay LED fixture is an exceptional lighting solution suitable for a diverse range of applications and mounting heights. Its various lumen packages make it the perfect choice for replacing traditional fluorescent and metal halide high bay systems.
The Noonlight Linear Highbay LED fixture provides several benefits over conventional lighting systems. For instance, its superior energy efficiency and durability significantly reduce maintenance and operational expenses. The fixture's high-quality design maximizes illumination while minimizing heat emission, thus contributing to a comfortable working environment. Additionally, the Noonlight Linear Highbay LED fixture provides superior color rendering, which enhances the visual appeal of interior spaces.
The Noonlight Linear Highbay LED fixture is suitable for numerous applications, including warehouses, industrial facilities, recreation centers, and retail spaces. Because it meets diverse mounting height requirements and can replace traditional high bay units, it offers flexibility for use in multiple settings. Additionally, its ability to provide precise, uniform lighting throughout a given space makes it ideal for areas with high ceilings.
Features:
This driver is designed to provide power to devices with a maximum power consumption of 320W. It comes with Class 2 certification, which ensures that it meets safety standards for low voltage power sources. The driver is compatible with power sources in the 100-347VAC range.
The driver is equipped with a four-step power selection feature, allowing you to fine-tune the power output to suit your needs. Additionally, an optional three-color temperature tuning feature further enhances the driver's flexibility. With these features, you can minimize your stock needs as you only need one SKU to cover up to 12 models.
The driver is equipped with plug-able PIR and motion sensors, that are Zhaga compliant. This makes it easy to integrate the driver with your existing sensor infrastructure. With these sensors, the driver provides energy-efficient and convenient lighting solutions, enabling accurate detection of human presence and movement.
Front Access Door for easy maintenance, Built-in Emergency Driver
To facilitate easy maintenance, the driver comes with a front access door that makes it easy to access the driver components. Additionally, the driver includes a built-in emergency driver option. With this feature, the driver can switch to emergency mode in case of an outage, ensuring that your devices remain operational even in critical situations.
Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Color Temperature | 4000K / 5000K |
| Beam Angle | 120° |
| Warranty | 5 Years |
| Input Voltage | 100-277VAC Or 100-347VAC Or 347-480VAC |
| CRI | Ra>80 |
| Working Temperature | -20~+45℃ |
| Lifespan | 50,000hrs |
| Light Source | SMD2835 |
| Material | White Powder Painted Steel |
| Power | 130W - 140W - 155W - 170W |
Advantages
HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
|
Power Adjustable Slide Switch Position
|
||||
|
Size/Positon
|
0 | 1 | 2 | 3 |
|
1X2
|
30W | 35W | 40W | 50W |
|
1X2
|
50W | 55W | 60W | 65W |
|
1X2
|
60W | 70W | 75W | 85W |
|
1X2
|
95 | 105 | 115 | 125 |
|
1X2
|
130 | 140 | 155 | 170 |
Applications:

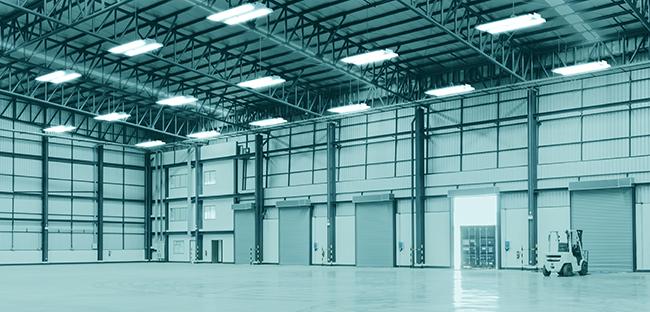

Warehouse Factory And Workshop Highway Toll Station And Gas Station Exhibition Hall Gymnasium And Supermarkets, Etc.
