Product Description:

The frosted lens is specifically designed to deliver uniform light output with exceptional color rendering capabilities and minimal glare. This feature makes it a perfect choice for installations in a wide range of commercial and industrial environments, including offices, educational institutions, healthcare facilities, hospitality establishments and retail spaces.
Along with its functional benefits, the architectural design of the frosted lens is also a key characteristic that makes it a popular lighting choice. Its clean lines and modern style provide a sleek appearance that seamlessly complements the aesthetic of various interiors.
In addition to its visual appeal and functional advantages, the frosted lens is also energy-efficient, making it a great choice for environmentally-conscious organizations. This lighting solution offers significant energy savings, reducing overall costs and benefiting the environment.
In conclusion, the frosted lens delivers superior lighting performance and features that make it an ideal fit for a wide variety of industrial and commercial environments. Its combination of aesthetic appeal, energy efficiency, and high-quality light output make it a reliable and effective lighting option for any organization.

Features:

The CLASS P Programmable LED Driver is a versatile solution for your lighting needs. With 4 step power adjustable settings, this driver provides optimal lighting for various settings. It also boasts a high Color Rendering Index (CRI) of over 80, ensuring that colors are accurately represented.
This driver is equipped with CCT Tunable technology, offering customizable color temperature settings ranging from 3000K to 5000K. This means one driver can cover a maximum of 16 different models, minimizing the need for excess stock.
The CLASS P Programmable LED Driver also offers added convenience with built-in PIR sensor and motion sensor options. With these features, you can adjust the lighting based on occupancy and save energy.
For added safety, the Wolumetric LED Troffer Light built-in emergency driver option ensures that your space remains illuminated even during power outages. With a L70 lifespan of over 50,000 hours and a 5-year warranty, you can trust the durability of this efficient lighting solution.

Technical Parameters:

Accessories

Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

Specification

• Input: 12-24VDC, >8ma
• 0-10V DC output signal
• Memeory function with one bottun commissiong.
• IR Remote controller commission.
• Detecton Range: Max. 6m in diameter.
• Mounting Height: 3-4m.
• Optional Daylight Harvesting

Default Setting/Setting

• Sensitivity: 100%/25%, 50%, 75%, 100%
• Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux, 50lux, 100lux, 300lux, Disable
• Hold Time: 5min/30s, 90s, 5 min, 10min, 30min
• Twilgith Time: never turn off/10s, 5min, 10min, 30min, 1h, never tun off
• Twilight Level: 30%/off, 10%, 30%, 50%

Advantages
HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

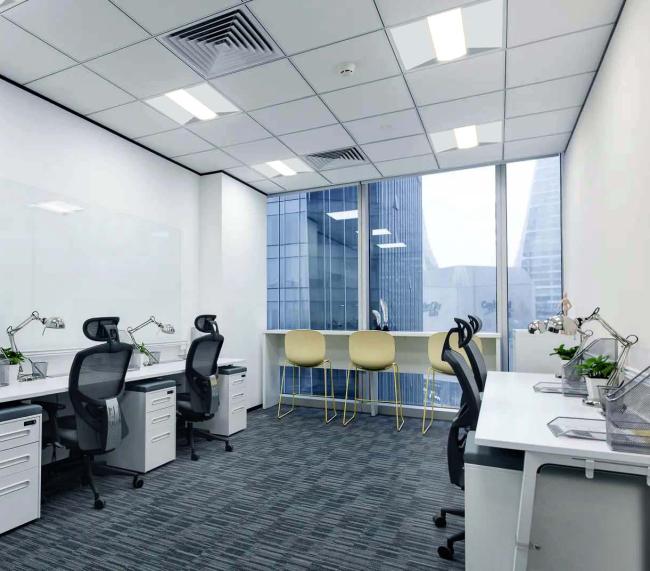

Applications:


Schools, offices, conference room, hospitality etc.
