16W / 20W / 24W / 27W White Powder Steel LED Troffers 120° Beam Angle 3000K-5000K CRI 50
Product Description:
Noonlight LED Troffers are a great solution for both new construction and remodel projects. They are designed to replace traditional fluorescent troffers with a super slim LED fixture that provides brighter lighting with energy-efficient technology.
The CCT and wattage adjustable technology of the Noonlight LED Troffers provide customers with the ability to choose the color temperature and lumen output that best suits their lighting needs. With this advanced technology, customers can achieve better lighting results that are tailored to their specific application.
Features:
The CLASS P Programmable LED Driver offers superior lighting solutions for various applications. With the ability to adjust power in four different steps, users can customize the lighting output to suit their specific needs. Additionally, the high color rendering index (CRI>80) ensures that colors appear accurately and vividly.
CCT (correlated color temperature) tunable technology is also featured in this LED driver, allowing users to choose from a range of color temperatures, including 3000K, 3500K, 4000K, and 5000K. This feature not only allows for better customization but also makes it easier to match the lighting with the surroundings.
Another benefit of the CLASS P Programmable LED Driver is its depth design. It is available in two designs: super thin and standard. The troffer light also comes with an EM battery backup, ensuring uninterrupted illumination during power outages.
Users can dim the lighting output between 5-100% using the 0-10V dimmer, which is flicker-free and can be dimmed to off. For enhanced functionality, this LED driver also features built-in PIR and motion sensor options. In addition, the CCT troffer light is built with an emergency driver option to handle unforeseen and unexpected situations.
The CLASS P Programmable LED Driver is built to last, with an L70 life of over 50,000 hours. The product also comes with a five-year warranty, ensuring peace of mind for the buyer.
Technical Parameters:
| Product Name | LED Troffer Lights |
|---|---|
| Application | Schools, Offices, Conference Room, Hospitality Etc. |
| Input Voltage | 100-277VAC Or 100-347VAC |
| Lifespan | 50,000hrs |
| CRI | >80 |
| Beam Angle | 120° |
| Material | White Powder Painted Steel |
| Warranty | 5 Years |
| Power | 16W / 20W / 24W / 27W |
| Luminous Flux | 2000-2500-3000-3375LM |
Accessories
MICROWAVE MOTION SENSOR
Sensitivity: 25%, 50%, 75%, 100%Default Setting/Setting
- Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux,50lux, 100lux, 300lux, Disable
- Hold Time: 3s, 30s, 90s, 5min, 10min, 30min
- Twilgith Time: 10s, 5min, 10min, 30min, 1h, Infinite
- Twilight Level: Off, 10%, 30%, 50%
CCT and Power Tuanable LED Troffer Light Installation
INSTRUCTION FOR SURFACE MOUNTING
·1.Disconnect or turn off power before installation,see step ①.
·2.Put the new volumetric troffer fixture onto the T grid,see step②
·3.Make the electrical connection to the fixture in accordance with local electrical code.Make all necessary wiringconnections,observing proper voltage and polarity.See step@ . Make sure the power feeds are put into the fixturejunction box.
·4 Once finished with the electrical connection, bend the earthquak clips to attach to the T grid.See step④
·5.Turn on power, the fixture will illuminate. See step .

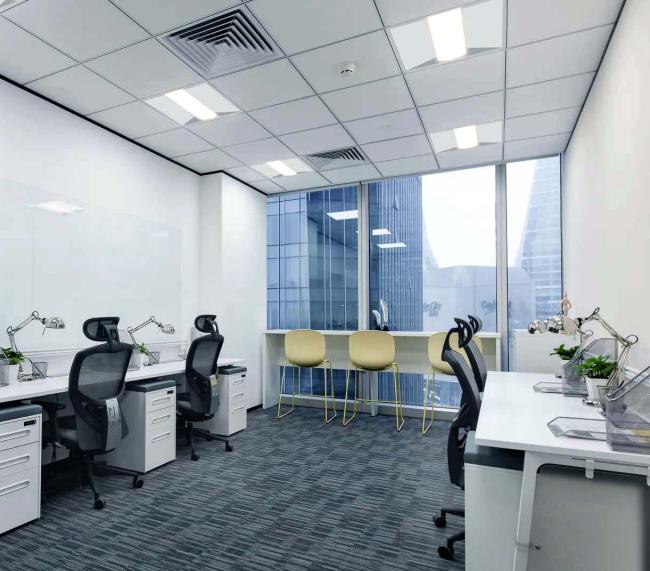

Applications:
Schools, offices, conference room, hospitality etc.
