CCT Tunable LED Stairwell Pendant Mount Diffused Lens 120° White Powder Painted Steel
Product Description:

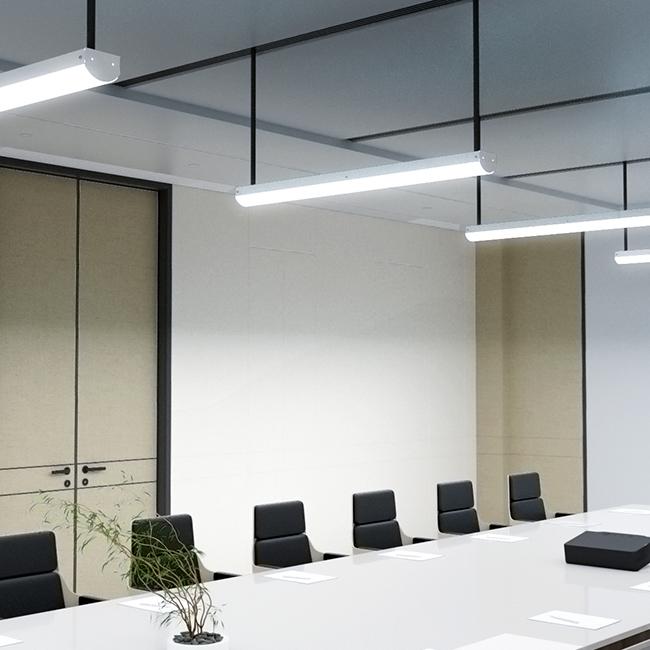

The 4” Linear Strip Light/Stairwell fixture is an ideal source of diffused light specifically designed for commercial, retail, and residential settings. It has a compact build that can easily fit into tight spaces without compromising its illuminating capacity.
With 2ft, 4ft, and 8ft length options, the Linear Strip Light/Stairwell fixture can cater to different room sizes and layout requirements. You can choose the most appropriate length that suits your preference and the specific needs of your space.
Features:
The CLASS P Programmable LED Driver is the perfect solution for any lighting needs. It comes with 4-step power adjustable options to customize your lighting experience. Additionally, it has a high color rendering index (CRI) of over 80 and the ability to adjust the correlated color temperature (CCT) with options ranging from 3000K to 5000K.
Choose from various lens options such as clear or frosted, and the 5-100% 0-10V dimmable feature ensures that you can control the brightness of your lighting without any flicker, even when dimmed to off.
The built-in emergency driver option ensures that your lighting will remain operational during unexpected power outages. Lastly, the L70>50,000hrs and 5-year warranty guarantee that you can rely on this product for long-lasting and reliable use.
Technical Parameters:
| Product Name | LED Linear Strip Stairwell |
| Power | 12W / 18W / 25W / 40W |
| Beam Angle | 120° |
| CRI | >80 |
| Luminous Flux | 1600LM / 2450LM / 3400LM / 5260LM |
| Color Temperature | 3000K / 3500K / 4000K / 5000K |
| Input Voltage | 100-277VAC / 100-347VAC / 347-480VAC |
| Lifespan | 50,000 Hours |
| Installation | Pendant Mounting / Surface Mounting |
| Warranty | 5 Years |
| Additional Features | Wattage adjustable LED Stairwell, 4" width Linear LED Strip |
Accessories
Bi-level 12VDC 0-10V Motion Sensor
Specification
- Dual PD Technology: can idenify daylight and artificatial light.
- Input Voltage: 12VDC
- Output: 0-10V, 25mA sinking current
- Mouting Height: Max. 40ft.
- Detection Range: 30ft @ 40ft height in diameter
- IR remote commissing: easy setting via remote controller
- Photocell available
Advantages
HOW TO CHANGE THE CCT IN THIS FIXTURE
|
CCT Tunable Slide Switch Position
|
|
| Position/Group | CCT |
| CCT1 | 3000K |
| CCT2 | 3500K |
| CCT3 | 4000K |
| CCT4 | 5000K |
Applications:
Stairwell Lighting, Passageway Lighting, Corridor Lighting, Shop Lighting, Strip Lighting, Low Bay Lighting, Warehouse Lighting
