50W Energy Saving LED Grid Light with 160LM/W Luminous Efficacy and 120-277VAC / 120-347VAC / 220-240VAC Input Voltage
Product Description:
The LED grille panel light is a great lighting solution that offers a unique architectural design with a sleek and super thin form factor. Its slim profile makes it easy to install in a variety of settings and it can be used for pendant, mounted, recessed, or even T-grid installations.
One of the key features of this light is the smart and flexible choice of light source quantity. This means that you can choose how much light you need for your space, without having to worry about overpowering your environment. Whether you need a lot of light for a large area, or just a small amount for a specific task, this light can be customized to meet your needs.
Another benefit of the LED grille panel light is the variety of lighting beam angles that are available. You can choose from a wide range of beam angles, depending on your lighting needs. This allows you to create a customized lighting solution that is tailored to your specific space and requirements.
Features:
In terms of voltage, this product is versatile and can be compatible with 120~277VAC, 120~347VAC, and 220~240VAC.
Consuming 20W, 30W, 40W, or 60W, this product offers various power consumption options to suit different needs.
Depending on the lighting requirements, users can choose between 125Lm/W or 160Lm/W light efficiency options.
The beam angle is adjustable and can be set to 30°, 60°, 90°, or 120°.
This product also features easy dimming options, including 0-10V (dual channel), Dali 2, or non-dim settings. Additionally, it offers 4 wattage adjustable options and 4 CCT tunable options.
To ensure high-quality lighting, users can opt for CRI>80, CRI>90, or CRI>95 options.
For additional convenience and safety, a motion sensor and emergency battery pack are also available.
Certifcate
Specification
| Model No | ETL | Input Voltage | Wattage | LPW | Lumen | Beam Angle |
| N-GL-22-20W-2L-DF | YES | 120-277VAC 120-347VAC 220-240VAC |
20W(Max) | 160LM/W(Max) | 3200LM(Max) | 120° |
| N-GL-22-20W-2L-[30,60,90] | 125LM/W(Max) | 2500LM(Max) | 30°,60°,90° | |||
| N-GL-22-30W-3L-DF | YES | 120-277VAC 120-347VAC 220-240VAC |
30W(Max) | 160LM/W(Max) | 4800LM(Max) | 120° |
| N-GL-22-30W-2L-[30,60,90] | 125LM/W(Max) | 3750LM(Max) | 30°,60°,90° | |||
| N-GL-24-40W-2L-DF | YES | 120-277VAC 120-347VAC 220-240VAC |
40W(Max) | 160LM/W(Max) | 6400LM(Max) | 120° |
| N-GL-24-40W-2L-[30,60,90] | 125LM/W(Max) | 5000LM(Max) | 30°,60°,90° | |||
| N-GL-24-60W-1L-DF | YES | 120-277VAC 120-347VAC 220-240VAC |
60W(Max) | 160LM/W(Max) | 9600LM(Max) | 120° |
| N-GL-24-60W-1L-[30,60,90] | 125LM/W(Max) | 7500LM(Max) | 30°,60°,90° | |||
| N-GL-14-20W-1L-DF | YES | 120-277VAC 120-347VAC 220-240VAC |
20W(Max) | 160LM/W(Max) | 3200LM(Max) | 120° |
| N-GL-14-20W-1L-[30,60,90] | 125LM/W(Max) | 2500LM(Max) | 30°,60°,90° | |||
| N-GL-14-40W-1L-DF | YES | 120-277VAC 120-347VAC 220-240VAC |
40W(Max) | 160LM/W(Max) | 6400LM(Max) | 120° |
| N-GL-14-40W-1L-[30,60,90] | 125LM/W(Max) | 5000LM(Max) | 30°,60°,90° | |||
| N-GL-4F-30W-1L-DF | YES | 120-277VAC 120-347VAC 220-240VAC |
30W(Max) | 160LM/W(Max) | 4800LM(Max) | 120° |
| N-GL-4F-30W-1L-[30,60,90] | 125LM/W(Max) | 3750LM(Max) | 30°,60°,90° |
Applications:

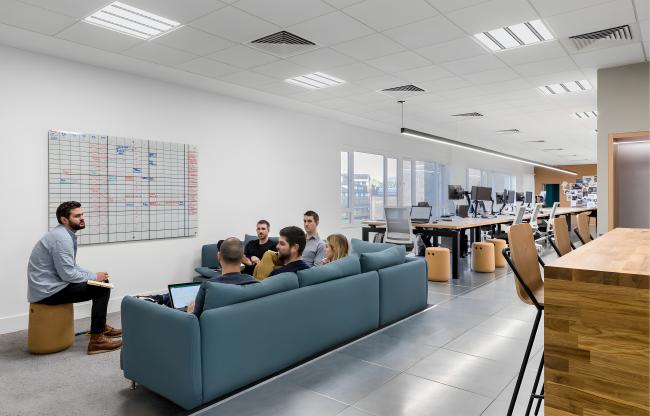

Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall
