CRI80 Energy Saving White Powder Painted Steel LED Grid Light Panel With 160LM/W Luminous Efficacy
Product Description:
Our LED grille panel light is a top-of-the-line lighting solution for your residential or commercial space. It boasts a unique architectural design that is sure to add an elegant touch to your interiors.
The best part is, this panel light is incredibly thin, making it easy to install in any space. Whether you want to suspend it from the ceiling or mount it using T-grid installation, our panel light is the perfect choice. It can even be recessed into your ceiling for a sleek and modern look.
Our LED grille panel light is also incredibly smart and flexible. You have the freedom to choose the quantity of light sources that best suits your space, so you can create the perfect lighting ambiance.
Moreover, our panel light is equipped with various lighting beam angles, so you have even more control over your lighting design. You can easily adjust the light to suit your preferences and needs.
Lastly, our LED grille panel light comes in both standard and customizable lengths. So whether you need a specific length for a large commercial area or a smaller length for your residential space, we've got you covered.
Features:
The LED lighting system has a broad range of voltage specifications, including 120~277VAC, 120~347VAC, and 220~240VAC. Hence, it is compatible with an extensive range of power sources, making them convenient for various applications.
The LED lighting system has different power consumption options, including 20W, 30W, 40W, and 60W. You can choose the appropriate power level based on your lighting needs and energy requirements.
There are two light efficiency options for the LED lighting system, including 125Lm/W and 160Lm/W. These options provide different levels of brightness for different lighting applications while ensuring optimal energy efficiency and cost-effectiveness.
The LED lighting system comes with various beam angle options, including 30°, 60°, 90°, and 120°. These options are designed to provide different lighting coverage areas and can be adapted to different settings and ambiance.", "
The LED lighting system is also dimmable and can be configured to operate at different levels using 0-10V (dual channel), Dali 2, or Non-dim. You can adjust the lighting level to match your preferences, creating a comfortable and relaxing environment in your space.
The LED lighting system has four wattage adjustable options, allowing you to control the energy consumption and level of brightness that you need, depending on your lighting requirements. Additionally, it has four CCT tunable settings, enabling you to choose between different shades of white light to achieve the ambiance that you desire.

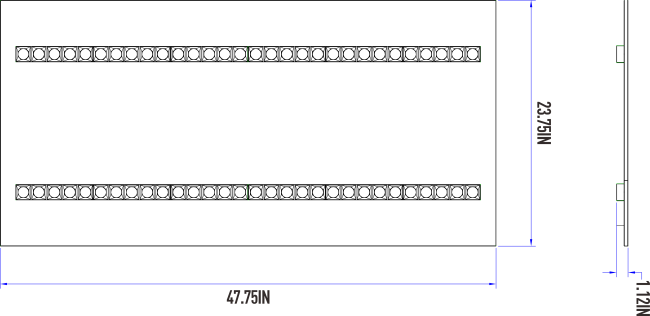

Dimension:
Technical Parameters:
| Technical Parameter | Value |
|---|---|
| CRI | >80, >90, >95 |
| Application | Super Market, Office, Commercial Places, Hospital, Gym, Warehouse, Workshop, Shopping Mall |
| Input Voltage | 120-277VAC / 120-347VAC / 220-240VAC |
| Power | 40W(Max) / 60W(Max) |
| Beam Angle | 30°,60°,90°,120° |
| Warranty | 5 Years |
| Luminous Flux | 6400LM(Max) / 9600LM(Max) |
| Material | White Powder Painted Steel |
| Lifespan | 50,000hrs |
| Product Name | LED GRILLE LIGHT |
| Keywords | Grille Style Lighting, Light Grid Panel, Lighting Grille Lamp |
Accessories
Current:100mA max. Input Power Rating:7W max. Output Voltage:25V~230Vdc
Emergency Power:30W max. Recharge Time:24Hrs
Ni-MH: 41~149°F(5~65°C)
Applications:
Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall
