20W/40W LED Panel Grid With 5000LM White Powder Painted Steel CRI 120-347VAC
Product Description:
-Modular light source design
-Smart and flexible choice of light source quantity
-Various of lighting beam angles
-Very low UGR<22 / UGR<19 for option
Features:
A range of power options are available with this lighting solution, with power consumption settings varying between 20W, 30W, 40W and 60W. The lighting options also come with a choice of 125Lm/W or 160 Lm/W light efficiency for enhanced performance.
Users are also offered the ability to customize their lighting solution by selecting from a range of beam angles that include 30°, 60°, 90°, or 120°. Additionally, 4 CCT tunable options are available, as well as a CRI>80, CRI>90, or CRI>95 for users seeking more specialized configurations.
The lighting comes equipped with a motion sensor and an emergency battery pack, making it a practical and reliable lighting solution for both residential and commercial use.
The lighting system is compliant with multiple certifications, including ETL, DLC, CE, and RoHS. Additionally, a 5-year warranty is provided for users seeking quality assurance, making it a durable and long-lasting choice for daily use.
Certifcate:
Specification
| Model No | ETL | Input Voltage | Wattage | LPW | Lumen | Beam Angle |
| N-GL-22-20W-2L-DF | YES | 120-277VAC 120-347VAC 220-240VAC |
20W(Max) | 160LM/W(Max) | 3200LM(Max) | 120° |
| N-GL-22-20W-2L-[30,60,90] | 125LM/W(Max) | 2500LM(Max) | 30°,60°,90° | |||
| N-GL-22-30W-3L-DF | YES | 120-277VAC 120-347VAC 220-240VAC |
30W(Max) | 160LM/W(Max) | 4800LM(Max) | 120° |
| N-GL-22-30W-2L-[30,60,90] | 125LM/W(Max) | 3750LM(Max) | 30°,60°,90° | |||
| N-GL-24-40W-2L-DF | YES | 120-277VAC 120-347VAC 220-240VAC |
40W(Max) | 160LM/W(Max) | 6400LM(Max) | 120° |
| N-GL-24-40W-2L-[30,60,90] | 125LM/W(Max) | 5000LM(Max) | 30°,60°,90° | |||
| N-GL-24-60W-1L-DF | YES | 120-277VAC 120-347VAC 220-240VAC |
60W(Max) | 160LM/W(Max) | 9600LM(Max) | 120° |
| N-GL-24-60W-1L-[30,60,90] | 125LM/W(Max) | 7500LM(Max) | 30°,60°,90° | |||
| N-GL-14-20W-1L-DF | YES | 120-277VAC 120-347VAC 220-240VAC |
20W(Max) | 160LM/W(Max) | 3200LM(Max) | 120° |
| N-GL-14-20W-1L-[30,60,90] | 125LM/W(Max) | 2500LM(Max) | 30°,60°,90° | |||
| N-GL-14-40W-1L-DF | YES | 120-277VAC 120-347VAC 220-240VAC |
40W(Max) | 160LM/W(Max) | 6400LM(Max) | 120° |
| N-GL-14-40W-1L-[30,60,90] | 125LM/W(Max) | 5000LM(Max) | 30°,60°,90° | |||
| N-GL-4F-30W-1L-DF | YES | 120-277VAC 120-347VAC 220-240VAC |
30W(Max) | 160LM/W(Max) | 4800LM(Max) | 120° |
| N-GL-4F-30W-1L-[30,60,90] | 125LM/W(Max) | 3750LM(Max) | 30°,60°,90° |
Accessories
Default Setting/Setting
Sensitivity: 100% / 25%, 50%, 75%, 100%
Daylight Sensor: Disable / 2lux,10lux, 25lux, 50lux ,100lux, 300lux, Disable , Ambient Learn
Twilgith Time: Infinite / 10s, 5min, 10min, 30min, 1h,Infinite
Applications:

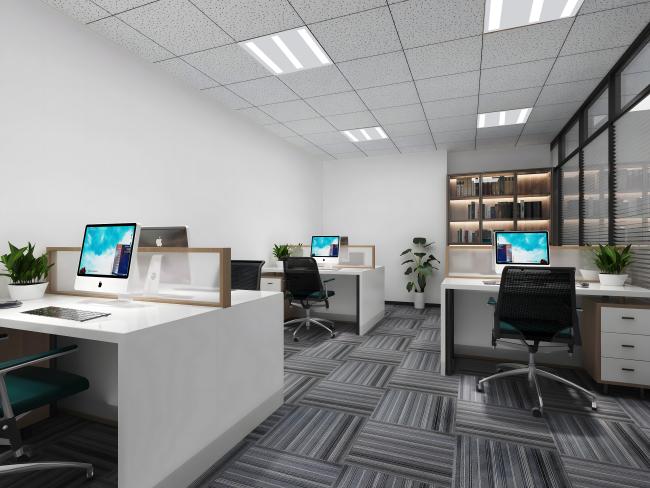

Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall
