50000 Hour Lifespan LED Trunking Lighting System for Commercial and Industrial Lighting Luminous Flux 5625LM Max
Product Description:

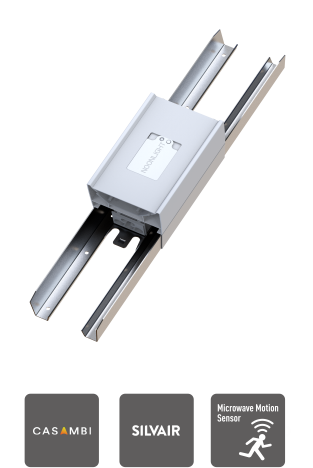

The LED trunking light system boasts a seamless daisy chain connection, which enables easy linking and installation of multiple lights in one go. With different beam angles to choose from, the system offers an array of lighting possibilities. Not only does it provide a downward lighting option, but it also features uplighting.
One of the best things about the LED trunking light system is the flexibility it provides. The customizable length means that users can tailor it to their specific lighting needs, ideal for spaces of any size or shape. Additionally, the system offers combined shapes, ensuring that there is a configuration for every lighting requirement.
The system also has an incredibly low UGR (<22 or <19), which reduces glare and unwanted reflections, making it easier on the eyes. Users can choose between a standard length system or a customized length to meet their specific requirements.
- Seamless daisy chain connection
- Various lighting beam angles
- Up & Down lighting available
- Customized length and combined shapes
- Very low UGR (<22 / <19 for option)
- Standard length or customized length available
Features:
Our lighting system is compatible with 120~277VAC, 120~347VAC and 220~240VAC power sources.
We provide two options for light efficacy- 125 Lm/W and 160 Lm/W.
The system is dimmable using either:
- 0-10V (dual channel)
- Dali 2
- Non-dim
Certifcate:
Technical Parameters:
| Product Name: | LED Trunking Lighting System |
| Application: | Intelligent LED Trunking Fixtures, LED Trunking Light System Solutions |
| Power: | 45W(Max) |
| Luminous Efficacy: | 125LM/W(Max) |
| Warranty: | 5 Years |
| Lifespan: | 50,000hrs |
| Beam Angle: | 30°,60°,90°,120° |
| Color Temperature: | 3000K / 3500K, 4000K / 5000K |
| Material: | Aluminum + Acrylic/Iron +PS Lens |
| CRI: | >80, >90, >95 |
Accessories:
· Input Voltage: 12 - 24V DC.
· Input Current:≥25ma.
· *1~10V DC. Output Signal.
· IR Remote Commissioning, Easy Setting And User Friendly.
· Detection Range Up To 12min Diameter.
· Operation Temperature: -20°c~+ 70°c.
· RoHS Compliant.
* Sink Current: Max.100mA
Applications:
Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall
