PC Lens 3000K LED Stairwell Lights 24 Gauge Steel Housing
4ft High output 2000-5200lm Lumen Adjustable Full Size LED Wraparound Fixture, 3000K 3500K 4000K 5000K Color Switchable DLC Listed
- NOONLIGHT 8” Wide Full Size LED Wraparound Fixture are designed to deliver general lighting for surface mounted applications.
- Integral of new trend of field-adjustable functions provide our customers greater flexibility on wattages and color temperatures.
- Built-in Occupancy Sensor allows for Bi-level controls
- UP TO 135LM/W
- CLASS P Programmable LED Driver, 4 Step Power Adujustable,
- CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
- Minimize stock, 1 SKU can cover max. of 16 models.
- An auxiliary to connect low voltage sensor/BLE or other IOT network.
- 2 Depth Design: Super Thin & Standard
- 5-100% 0-10V dimmable, flicker free, Dim to off.
- Built-in PIR Sensor and Motion Sensor Options.
- Built-in Emergency Driver Option.
- L70>50,000hrs, 5 year warranty.
| Model No | DLC | Input Voltage | Wattage | Lens | CRI/CCT | Rated Lumen @ 50K |
Rated Efficancy @ 50K |
Viewing Angle |
Rated Lifetime |
DLC Category |
|
N-LS8-4FT-40W-1XX-[Blank, HV]-[Blank, S1, S2]-D-FL-[CT, FA, DW]-Z |
YES |
120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable, DIm to Off
|
40 |
Frosted
|
Ra>80, 30K 35K 40K 50K |
5200 | 130 | 120° |
L70> 50000hrs |
Direct Linear Ambient Luminaires |
|
N-LS8-4FT-30W-1XX-[Blank, HV]-[Blank, S1, S2]-D-FL-[CT, FA, DW]-Z |
YES |
120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable, DIm to Off |
30 |
Frosted |
Ra>80, 30K 35K 40K 50K |
4000 | 130 | 120° |
L70> 50000hrs |
Direct Linear Ambient Luminaires |
|
N-LS8-4FT-25W-1XX-[Blank, HV]-[Blank, S1, S2]-D-FL-[CT, FA, DW]-Z |
YES |
120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable, DIm to Off |
25 |
Frosted |
Ra>80, 30K 35K 40K 50K |
3250 | 130 | 120° |
L70> 50000hrs |
Direct Linear Ambient Luminaires |
|
N-LS8-4FT-15W-1XX-[Blank, HV]-[Blank, S1, S2]-D-FL-[CT, FA, DW]-Z |
YES |
120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable, DIm to Off |
15 |
Frosted |
Ra>80, 30K 35K 40K 50K |
2000 | 130 | 120° |
L70> 50000hrs |
Direct Linear Ambient Luminaires |
HOW TO CHANGE THE WATTAGE IN THIS FIXTURE
|
Power Adjustable Slide Switch Position |
||||
|
Size/Positon |
W1 |
W2 |
W3 |
W4 |
|
2FT |
30W |
20W |
15W |
10W |
|
4ft |
40W |
25W |
18W |
12W |
|
4ft |
80W |
70W |
60W |
45W |
|
CCT Tunable Slide Switch Position |
|
|
Position/Group |
CCT |
|
CCT1 |
3000K |
|
CCT2 |
3500K |
|
CCT3 |
4000K |
|
CCT4 |
5000K |
NOONLIGHT LED Wrap Series is surface mounted, wall mounted and suspended mounted

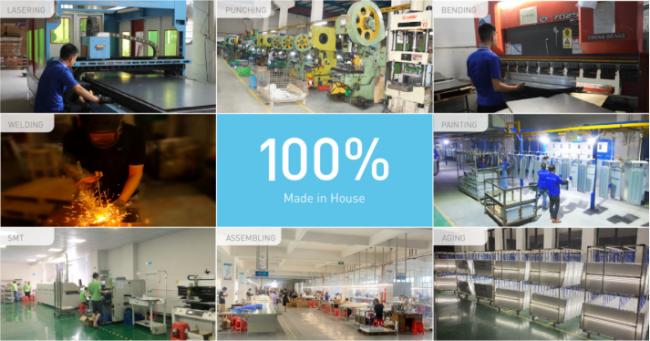

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.
NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:
OEM/ODM Serivce
Photometric/IES file
PCB Design/Driver Design
Heat Management/Optical Design
Industry Design
Market Support
3D Printing
Multiple Listing/Private Label.
Stairwell Lighting, Passageway Lighting, Corridor Lighting, Shop Lighting, Strip Lighting, Low Bay Lighting, Warehouse Lighting
