R210LC-9 R220LC-9S Rotary Reducer 31Q6-10140 31Q6-10141 Hyundai
R210LC-9 R220LC-9S Rotary Reducer 31Q6-10140 31Q6-10141 Hyundai
Specifiion
| Applicable Model | R160LC-9 R210LC-9 R220LC-9S |
| Product Name | Swing Reduction Gear |
| Appliion | Hyundai Excavator |
| Material | High Strength Cast Iron |
| Part Number | 31Q6-10141 31Q6-10140 |
| Color | Black |
| Condition | 100% New |
| Size | Standard |
| Reference Weight | 180 kg |
| Availability | In Stock |

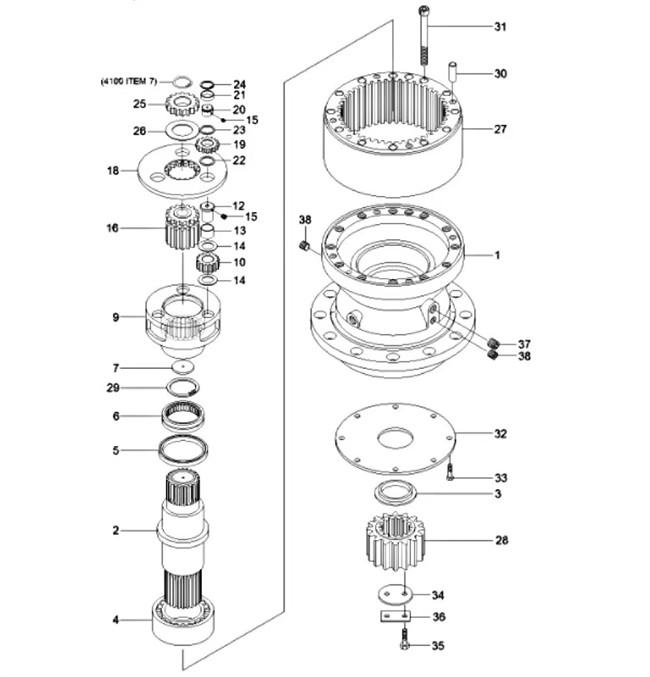

Swing Reduction Gear Parts
1. XKAQ-00771/XKAQ-00962 [1] Housing
2. XKAQ-00403/XKAQ-00780 [1] Shaft drive
3. XKAQ-00018 [1] Gasket
4. XKAQ-00026 [1] Bearing-Roller
5. XKAQ-00032 [1] Sealing oil
6. XKAQ-00029 [1] Bearing roller
6. XKAQ-00961 [1] Bearing-Roller
7. XKAQ-00404 [1] Plate thrust
8. XKAQ-00753 [1] Carrier Assembly 2
9. XKAQ-00075 [1] Carrier 2
10. XKAQ-00023 [3] Gear planet 2
11. XKAQ-00643 [3] Pin Assembly 2
12. XKAQ-00070 [3] Pin 2
13. XKAQ-00291 [1] Bushing 2
14. XKAQ-00071 [6] Washer thrust
15. XKAQ-00048 [3] Pin spring
16. XKAQ-00755 [1] Gear-Sun 2
17. XKAQ-00754 [1] Carrier Assembly 1
18. XKAQ-00531 [1] Carrier 1
19. XKAQ-00025 [3] Gear planet 1
20. XKAQ-00415 [3] Pin 1
21. XKAQ-00030 [3] Cage Needle
22. XKAQ-00057 [3] Board 1
23. XKAQ-00040 [3] Panel 2
24. XKAQ-00041 [3] Ring stop
25. XKAQ-00010 [1] Gear-Sun 1
26. XKAQ-00534 [1] Panel 3
27. XKAQ-00529 [1] Ring gear
28. XKAQ-00977 [1] Pinion
29. XKAQ-00074 [1] Ring stop
30. XKAQ-00072 [2] PIN-KNOCK
31. XKAQ-00065 [12] Bolt socket
32. XKAQ-00031 [1] Board cover
33. XKAQ-00064 [8] Bolt - Hex
34. XKAQ-00043 [1] Board lock
35. XKAQ-00042 [2] Bolt - Hex
36. XKAQ-00292 [1] Washer lock
