Long Distance Backhaul 5GHZ Antennas 4900MHz To 6500MHz
Price:
USD 59-65
MOQ:
20
Delivery Time:
15-20 working days
Brand:
XJS
Product Description

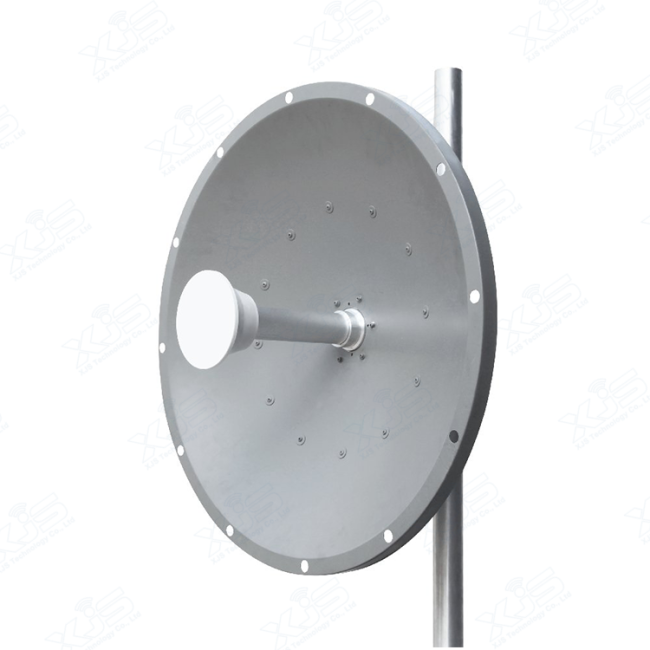

Long Range 4.9-6.4GHz 5ghz 30dBi WiFi Wlan Mimo Dish Antenna
TDD-4965-30HV is a ultra performance wideband dual polarized solid dish antenna with ultra electrical performance and mechanical stability, the parabolic dish antenna can be used in a wide variety of 4.9GHz and 6.4 GHz range (4.9/5.1/5.3/5.4/5.8/6.4GHz) wireless applications.
Features

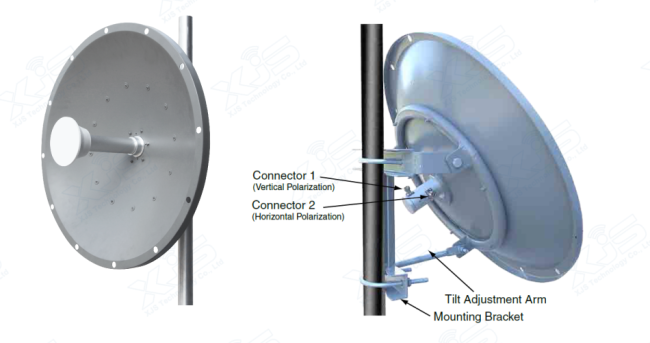

- (2) N-Female connectors
- Dual Polarization (horizontal and vertical) or for X-Polarization (+45° and -45°)
- Aluminum reflector dish with UV stable light gray polymer finish

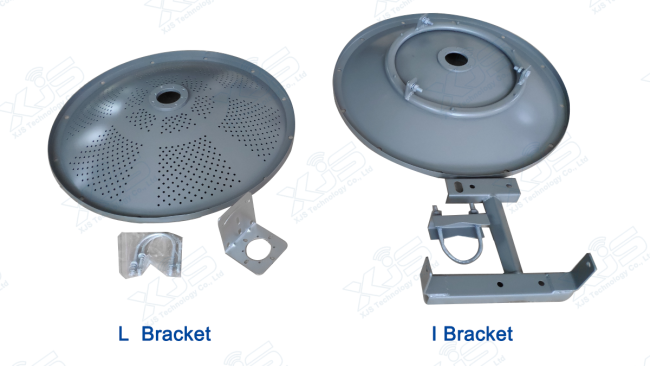

- Includes tilt and swivel mast mount kit
- Optional radome cover kits available
Application
- 4.9 GHz Public Safety Band
- 5.1/5.3/5.4/5.8 GHz ISM and UNII Band Applications
- Long Distance Backhaul and Point to Point Data Links
- MIMO and 802.11 n Applications
- WiMAX Applications
Electrical Specifications
| Frequency Range | 4900-6500 MHz |
| Gain (dBi) | 30 dBi |
| Horizontal Beamwidth | 5.5° |
| Vertical Beamwidth | 5.5° |
| VSWR | <1.8 |
| Polarization | Horizontal+Vertical |
| F/B Ratio | ≥32db |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | 2*N-female |
| Dimensions | Φ600mm |
| Weight (Kg) | 7kg |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |
| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |

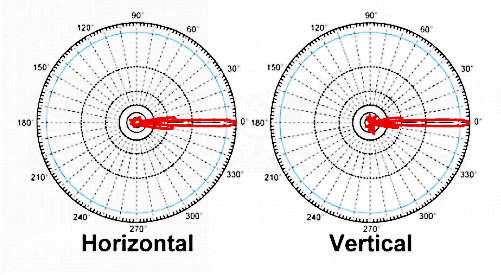

RF Antenna Patterns

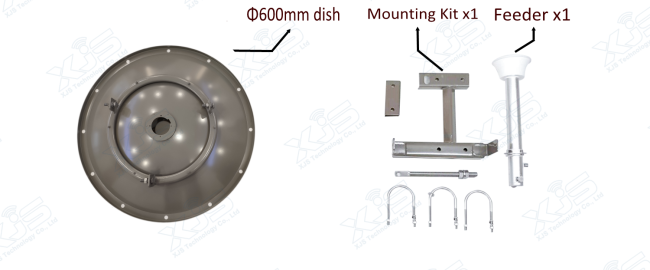

Package Content
