2400MHz To 2500MHz UNII ISM Long Range WiFi Antenna 10DBi
Omni Directional 2.4/5.8 GHz Dual Band 10 DBi WiFi Dual Polarized Mimo Omni Antenna

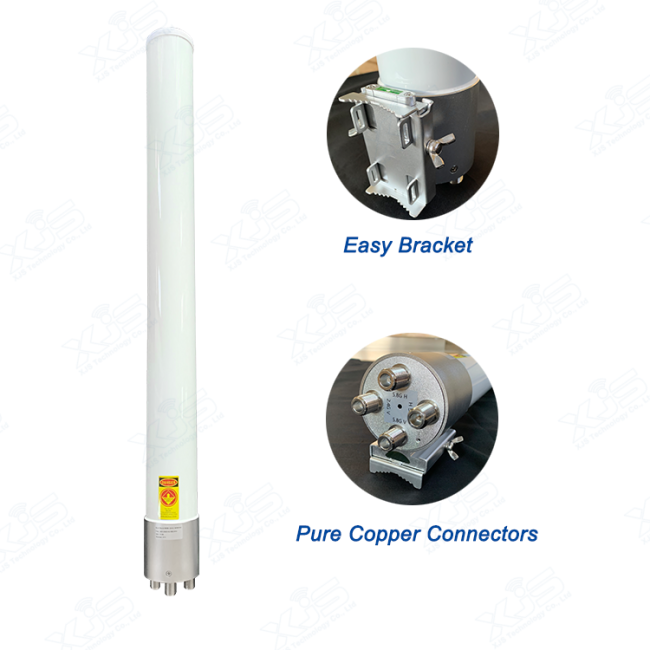

The TQO-2458-10 is a professional high gain dual band omnidirectional base station Wi-Fi antenna designed and optimized for the 2.4 and 5.8GHz frequency. This antenna is ideally suited for multipoint applications where long range and wide coverage is desired.
The TQO-2458-10 construction features a heavy-duty fiberglass radome for durability and aesthetics. Designed to operate in the harshest of environments, the TQO-2458-10 far exceeds other omnidirectional antennas.
Applications
- 5.8 GHz UNII and ISM applications
- 2.4/5.8 GHz IEEE 802.11a/b/g and 802.11ac applications
- 2.4GHz Wi-Fi applications
- Point-to-multipoint applications
- Wireless video system
Features
- Integral N-Female connector
- Twin heavy duty steel mounting brackets and u-bolts
- All weather operation
- Fiberglass radome
- Heavy duty industrial grade design
Electrical Specifications
| Frequency Range | 2400-2500 MHz/5150-5850MHz |
| Gain (dBi) | 10 dBi |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 10° |
| VSWR | <1.5 |
| Polarization | Horizontal and Vertical |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | Customized |
| Dimensions | Φ75x860mm |
| Weight (Kg) | 3.50 kg |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |
| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |

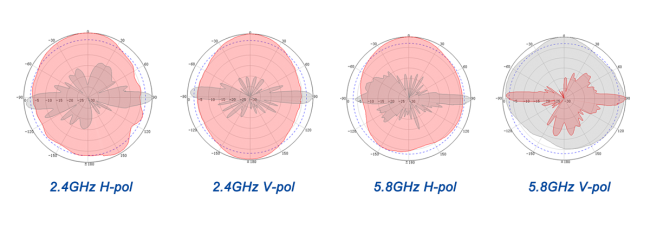

Radiation Patterns
RF Antenna Patterns

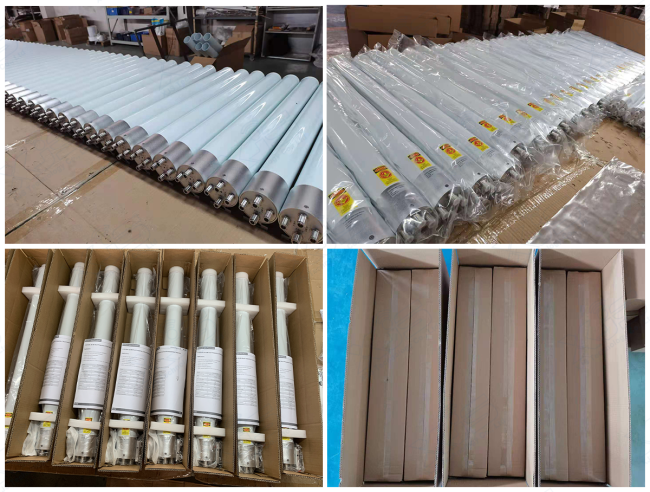

Antenna Packing
