OEM ODM Long Range 4G LTE Antennas 24dBi WiFi Wlan Mimo Dish Antenna
Price:
USD 59-65
MOQ:
20
Delivery Time:
15-20 working days
Brand:
XJS
Product Description

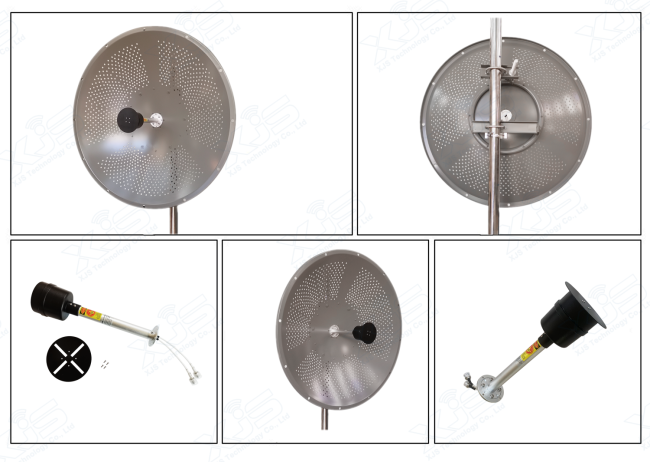

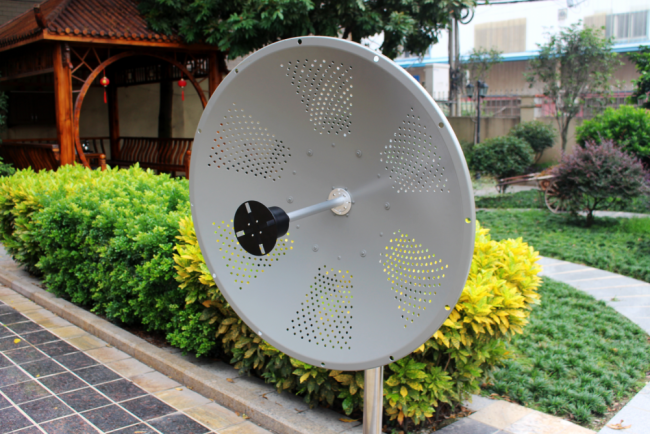

4G LTE Long Range 1700-2700 MHz 24dBi WiFi Wlan Mimo Dish Antenna
Boost your 4G/LTE/5G signal with this Powerful Grid Antenna Compatible with : Huawei 5G CPE Pro , B535 : B525 , B316 PLDT Fx - ID3 , Fx P4 , Fx-ID5 (modified) - ZTE MF283 + MR286R
Features
- * 24dBi directional operation, ideal for extraordinary long-distance outdoor directional connection
* Weather proof design, suitable for all weather conditions
* N Female connector, applicable in most outdoor solutions
* Provides easy installation mounting kits
Application
- * 2.4 GHz ISM band
* 1700-2700MHz band
* IEEE 802.11b/g/n Wireless LAN applications
* WiFi systems and long range directional applications
* Point to Point systems and Point to Multi-Point systems
* Wireless bridges, backhaul applications and wireless video systems
Electrical Specifications
| Frequency Range | 1700-2700 MHz |
| Gain (dBi) | 24 dBi |
| Horizontal Beamwidth | 10°~15° |
| Vertical Beamwidth | 10°~15° |
| VSWR | <1.8 |
| Polarization | Horizontal+Vertical |
| F/B Ratio | ≥30db |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | 2*N-female |
| Dimensions | Φ900mm |
| Weight (Kg) | 13.5kg |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |
| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |
