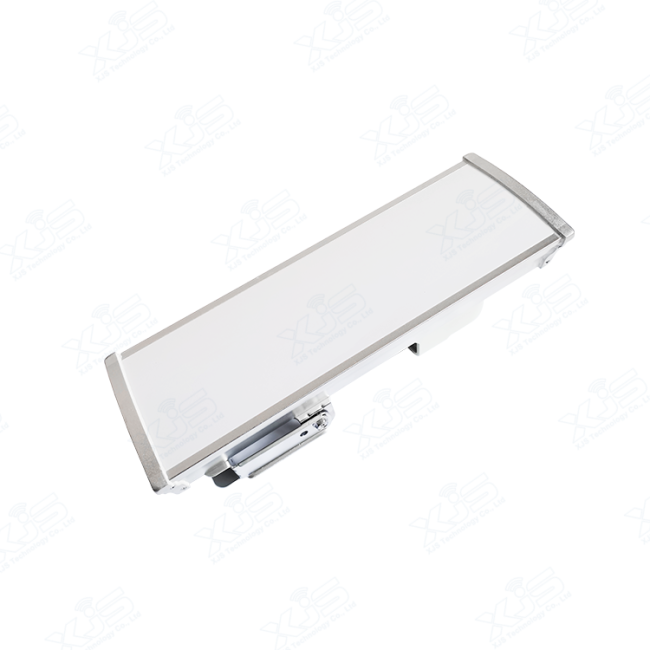

4.8-6.5GHz 21dBi 45 Degree WiFi WLAN 2×2 MIMO Sector Antenna

This a 4-Port 45 Degree Dual Slant Polarized +45°/-45° Sector Antenna that features a versatile radio mounting system for attaching Ubiquiti Networks RocketM5 or Rocket Prism 5AC, Mimosa C5c, Cambium ePMP™ 1000 or TP-Link WBS-510 directly to the antenna.

Features

· Expanded Coverage: 4800 MHz to 6500 MHz
· 2 ports, Suits for Radio like RocketM5, Mimosa C5c
· Cross Polarized, ±45° Polarization (Polarization Diversity)
· 45 Degree Beamwidth
· All-Weather Outdoor Operation
· Heavy Duty Tilt Mounting Brackets
· MIMO Applications
· 5 GHz 802.11a
· Wi-Fi Hotspots
· WISP Base Station
· WiMAX

Electrical Specifications

Mechanical Specifications

Radiation Patterns

RF Antenna Patterns

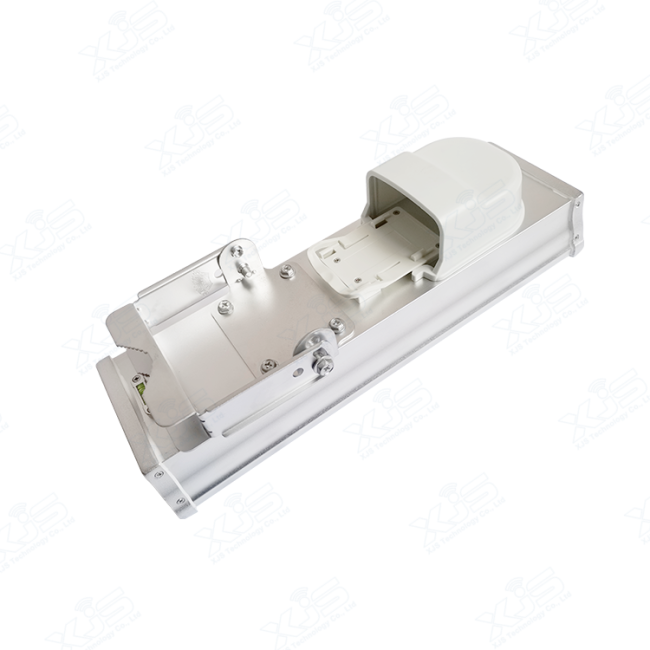

With radio mounting bracket

This antenna includes mounting bracket for attaching AP radio to the rear of the antenna, minimizing the required tower space. The kit also includes 2 low loss RP-SMA Male to RP-SMA Male cables for connecting the radio to the antenna.
