4800MHz To 6500MHz 19dBi 90 Degree Sector Antenna For Mobile Communication
4.8-6.5GHz 19dBi 90 Degree WiFi WLAN MIMO Sector Antenna for communication
This 90° mimo sector antenna provides high gain with a wide 90° beam-width making them ideal professional quality antennas designed primarily for service providers in the 4.8-6.5GHz band.
The TDD-4865-19 offers high-gain 19dBi, 90-degree wireless beam performance for broad coverage. Combine with other sector antennas to create 360-degree area coverage; apply to a variety of point-to-multipoint scenarios.
Features
- Dual Polarity feed system in single enclosure
- MIMO - Multiple-Input and Multiple-Output
- Two integral N-Female connectors
- UV-resistant radome for all-weather operation
Application
- 4.9/5.1/5.3/5.4/5.8/6.4/6.5 GHz Wireless LAN systems
- MIMO PtMP 1x2, 2x2 base station
- Supports IEEE 802.11a/n applications
- WiMAX, WISP, WiFi, Mobile Communication, Cell-site
Electrical Specifications
| Frequency Range | 4800-6500 MHz |
| Gain (dBi) | 19 dBi |
| Horizontal Beamwidth | 90° |
| Vertical Beamwidth | 4° |
| VSWR | <1.8 |
| Polarization | ±45° |
| F/B Ratio | ≥26db |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | Customized |
| Dimensions | 700*135*35 mm |
| Weight (Kg) | 3.8 kg |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |

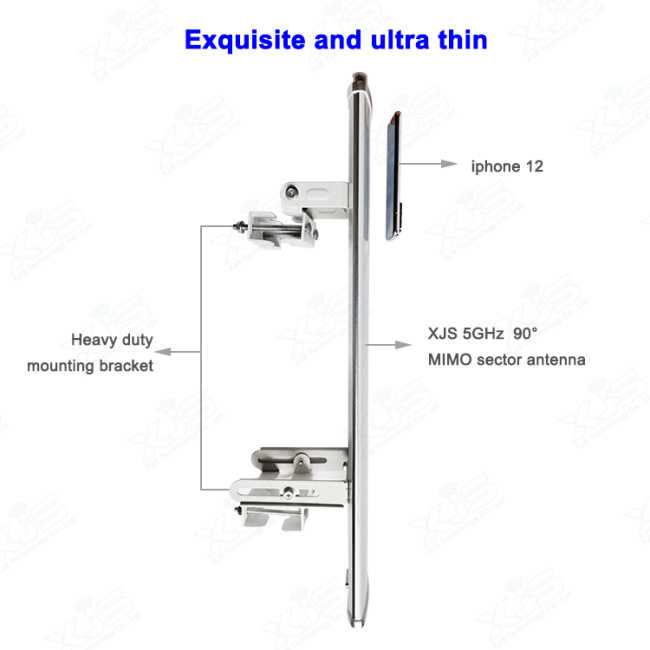

| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |

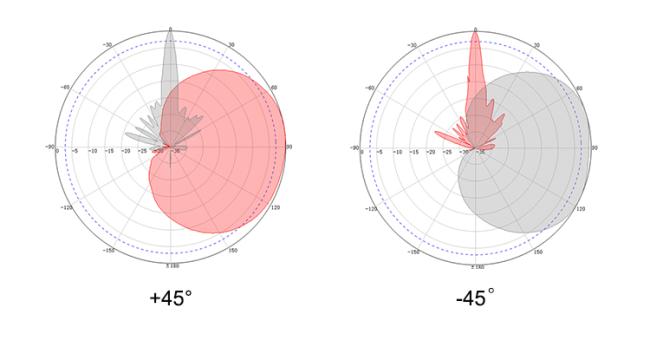

Radiation Patterns
