OEM 360 Degree 12dBi 2.4GHZ WIFI Antennas Center Fed Collinear Array Antenna
Price:
Negotiable
MOQ:
2
Delivery Time:
5~10 work days
Brand:
XJS
Product Description

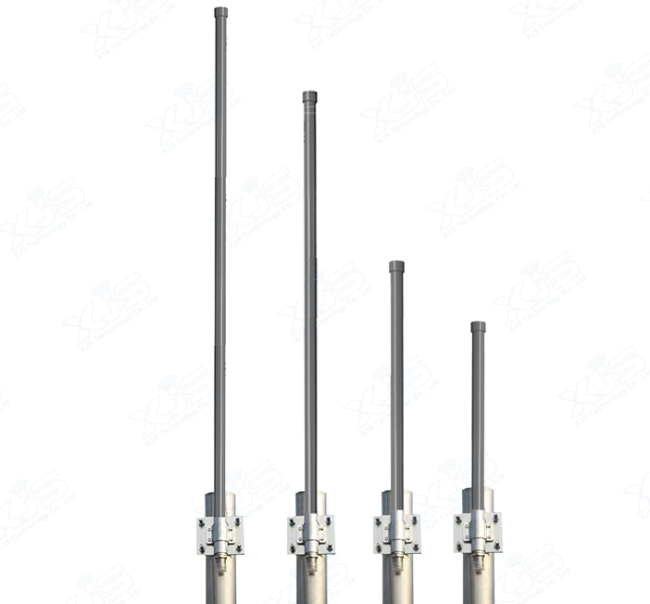

2.4 GHz 12dBi Omni Fiberglass Antenna
It is a Professional Grade Omni-Directional antenna that can be used for Commercial installations. The antenna features high gain and superior VSWR. The unit is optimized for the 2.4GHz ISM band.
Features
- Center fed collinear array

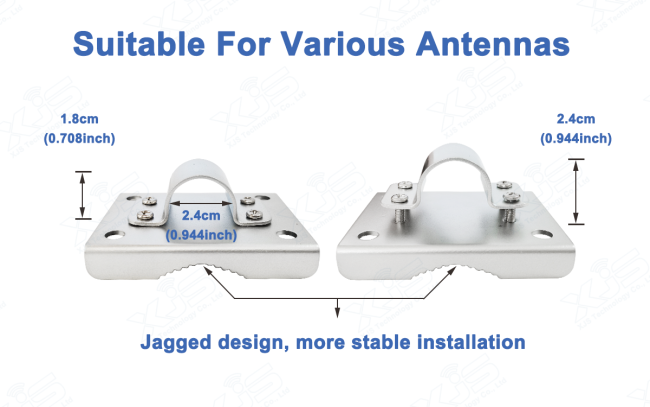

- Heavy-duty steel mounting brackets
- Integral N-Female connector
- Commercial grade antenna
- Solid Brass Elements
Application
- Public Wireless Hotspot
- 2.4 GHz ISM Band
- Supports IEEE 802.11b/g/n applications
- WiFi and 2.4 GHz wireless video systems
Electrical Specifications
| Frequency Range | 2400-2500 MHz |
| Gain (dBi) | 12 dBi |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 6° |
| VSWR | <1.5 |
| Polarization | Vertical |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | Customized |
| Dimensions | Φ20x1250mm |
| Weight (Kg) | 0.5 |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |

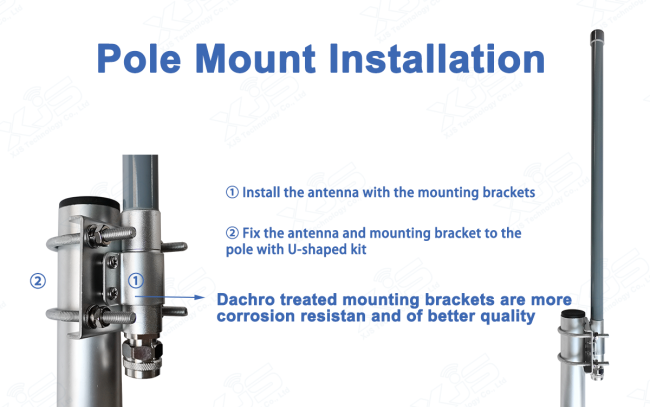

| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |

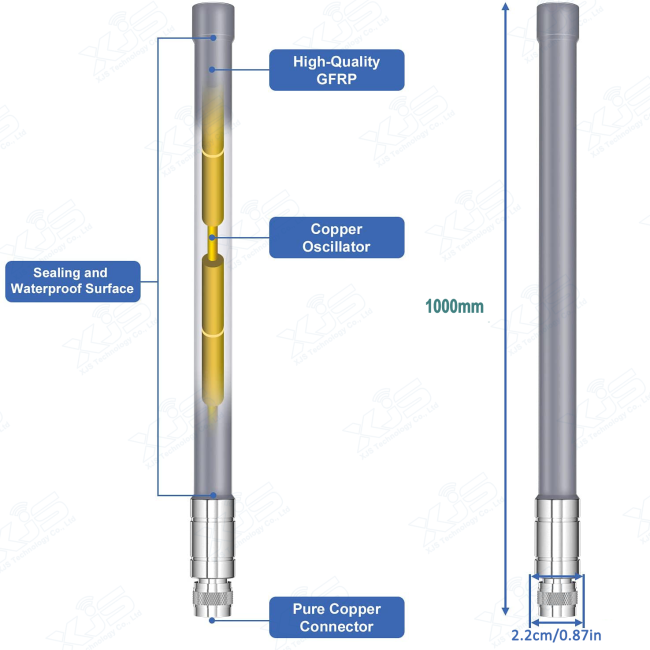

This antenna's construction features a durable fiberglass radome for durability and aesthetics. Its mounting system features twin heavy-duty mounting brackets and U-Bolts for superior strength. The thick brass elements provide long life in hostile environments.
