Hotspot 18dBi 2.4GHZ WIFI Antennas 2.4 Ghz Directional Wireless Panel Antenna
2.4G 18dBi panel antenna 2.4 ghz directional wireless panel antenna

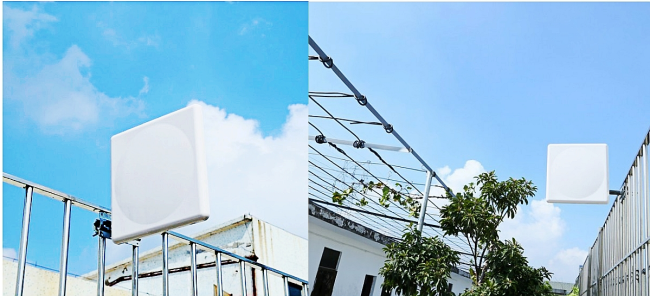

high performance directional flat patch WiFi antennas are suitable for indoor and outdoor applications in the 2.4GHz ISM band, including IEEE 802.11b, 802.11g and 802.11n wireless LANs, and public wireless hotspots.

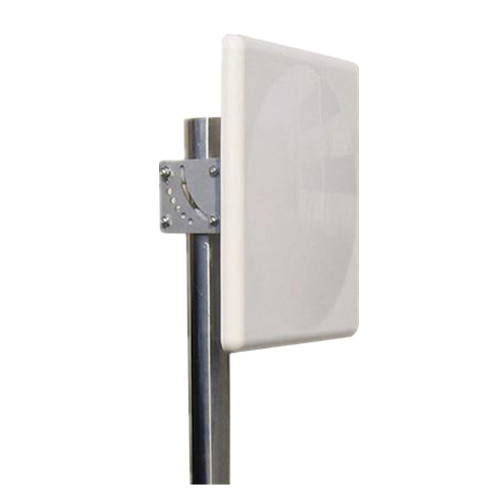

This WiFi antenna is lightweight and features an aesthetic UV-stable, UL flame rated white plastic radome which can also be painted to match the room or building structure. It can be installed for horizontal or vertical polarization.
Features
- Heavy duty all weather radome
- Can be mounted for horizontal or vertical polarization
- DC ground lightning protection

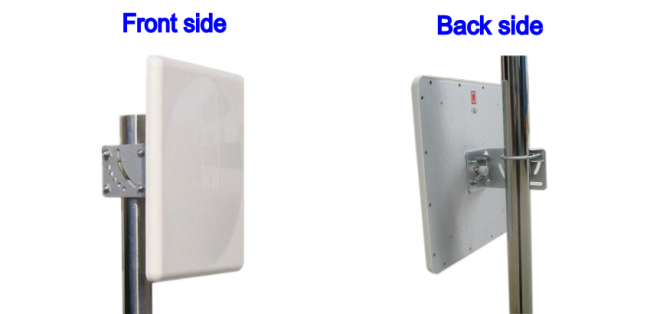

- Includes tilt and swivel mast mount
- N-Female connector
Application

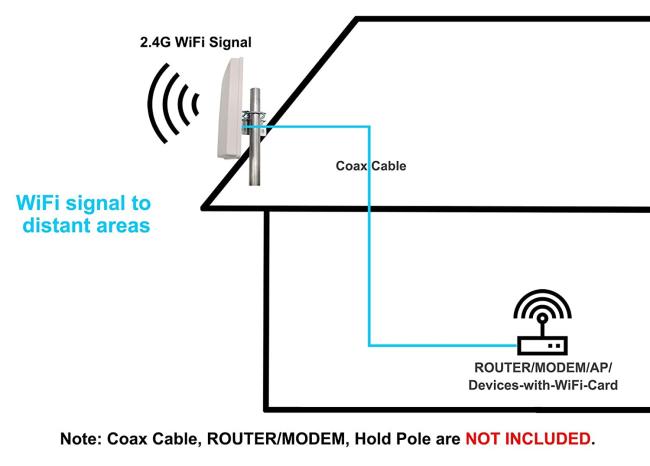

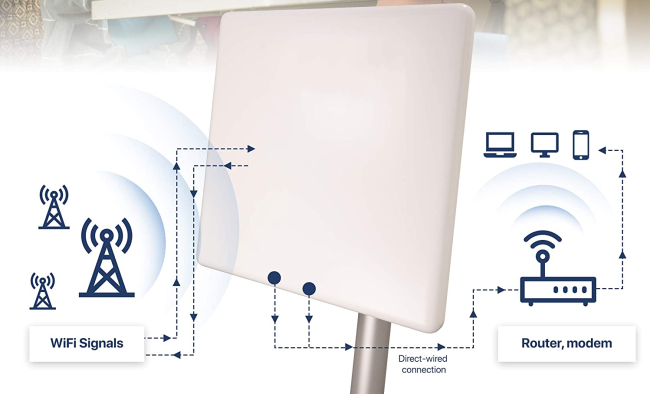

- 2.4 GHz Indoor/Outdoor Wireless LAN systems
- Subscriber sites and CPE applications
- Supports IEEE 802.11b/g/n applications
- WiFi and 2.4 GHz wireless video systems
- Public wireless hotspots
Electrical Specifications
| Frequency Range | 2400-2500 MHz |
| Gain (dBi) | 18 dBi |
| Horizontal Beamwidth | 20° |
| Vertical Beamwidth | 20° |
| VSWR | <1.5 |
| Polarization | Vertical |
| F/B Ratio | ≥25db |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | N-female |
| Dimensions | 305 x 305 x 30mm |
| Weight (Kg) | 1.5kg |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |
| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |

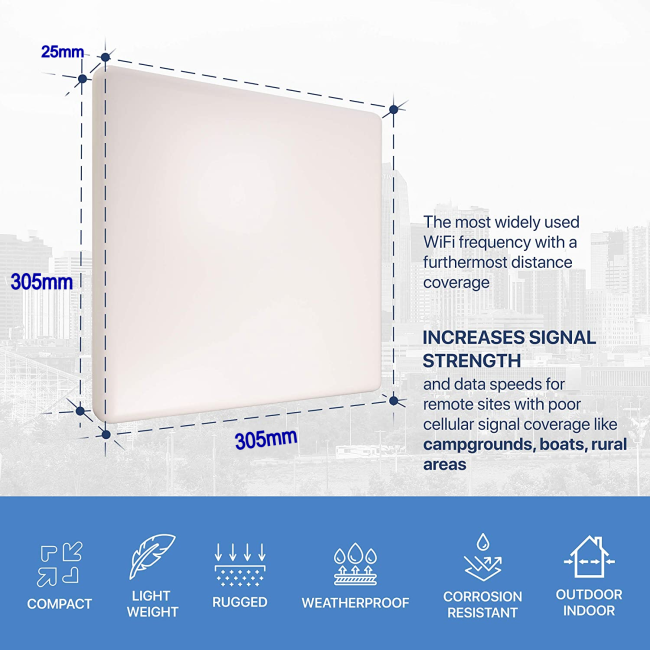

It is a roughly square box of 305mm x 305mm and 30mm thick. It is mainly made from aluminium with a durable white ABS plastic cover which is UV resistant.



Due to it's high gain, the Panel antenna sends and receives through a very narrow signal of just 20 degrees.
