PtP PtMP 50W 19dBi 2.4ghz Grid Antenna 400*600mm WiFi WLAN Antenna
Price:
Negotiable
MOQ:
2
Delivery Time:
Negotiable
Brand:
XJS
Product Description

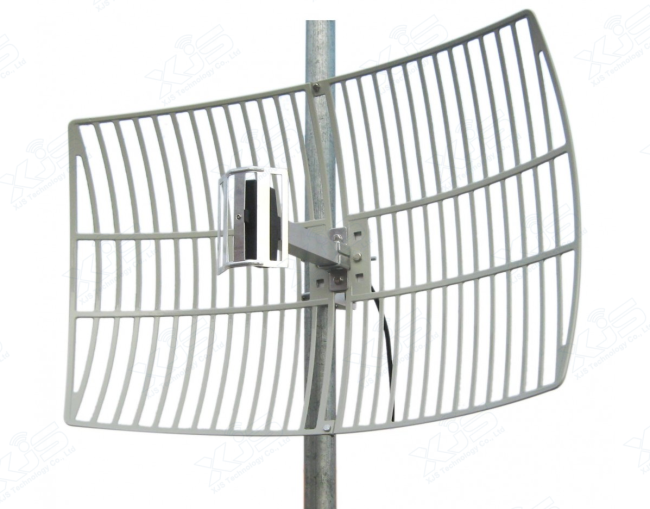

2.4GHz 19dBi WiFi WLAN Grid Antenna
It’s high gain and quality construction. It is ideal for long range point-to-point operation in the 2.4 GHz Wi-Fi Band. The antenna's precise beam pattern and excellent front-to-back ratio help reduce unwanted interference.
It has 16° Vertical and 12° Horizontal Beamwidth patterns with vertical or horizontal polarization and features Type N male connectors.
it shipped as a 2-piece reflector grid which is simple to assemble and greatly reduces shipping costs.
Features
- All weather operation
- Easy to assemble
- UV stable powder coat finish
- Die-cast aluminum construction
Application
- 2.4 GHz ISM Band
- IEEE 802.11b/g/n Wireless LAN Applications

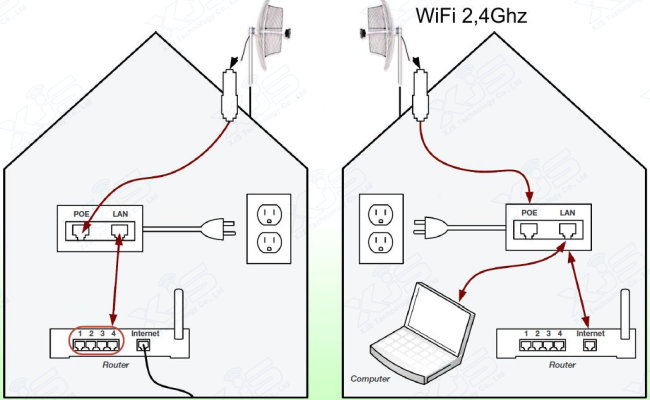

- Point to Point (PtP) Systems & Point to Multi-point (PtMP) Systems
- Wi-Fi Systems & Long-range Directional Applications
- Wireless Bridges, Backhaul Applications & Wireless Video Systems
Electrical Specifications
| Frequency Range | 2400-2500 MHz |
| Gain (dBi) | 19 dBi |
| Horizontal Beamwidth | 12° |
| Vertical Beamwidth | 16° |
| VSWR | <1.5 |
| Polarization | Vertical |
| F/B Ratio | ≥30db |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | N-female |
| Dimensions | 400*600 mm |
| Weight (Kg) | 1.5 kg |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |
| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |
