3200-4200MHz Feeder 5G Communication Antenna Feeder 30dBi Mimo Antenna Feed Horn
Price:
USD 79-86
MOQ:
20
Delivery Time:
5-10 working days
Brand:
XJS
Product Description
3.5GHz 30dBi 5G Communication Mimo Dish Antenna Feed Horn Feeder
3.5 GHz Dish Antenna Feeder features excellent front to back ratio. It is ideally suited for directional applications, backhaul applications and point to point systems. Typical applications include IEEE 802.16e, WiMAX and Mobile WiMAX applications.
Features
- Superior performance
- All weather operation
- Easy to assemble
Application
- 3.5 GHz Wireless access system
- Point to Point (PtP) and Multi-point to Point (MPtP) Systems
- Wireless Bridges
- Long-range Directional Applications
Electrical Specifications
| Frequency Range | 3200-4200 MHz |
| Gain (dBi) | 30 dBi |
| Horizontal Beamwidth | 4° |
| Vertical Beamwidth | 5° |
| VSWR | <1.8 |
| Polarization | Horizontal+Vertical |
| F/B Ratio | ≥32 dB |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | 2*N-female |
| Dimensions of Dish | Φ900mm |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |
| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |

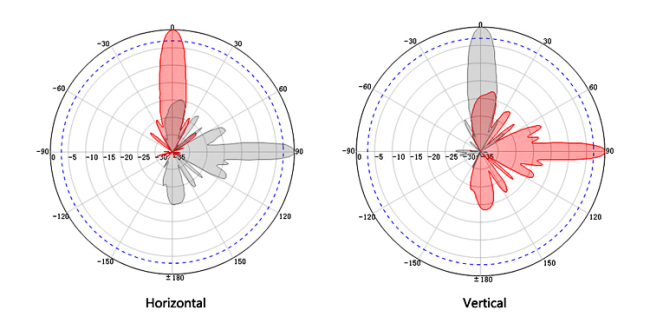

Radiation Patterns
