2400MHz To 2500MHz 2.4ghz Panel Antenna 18dbi Wireless Lan Antenna

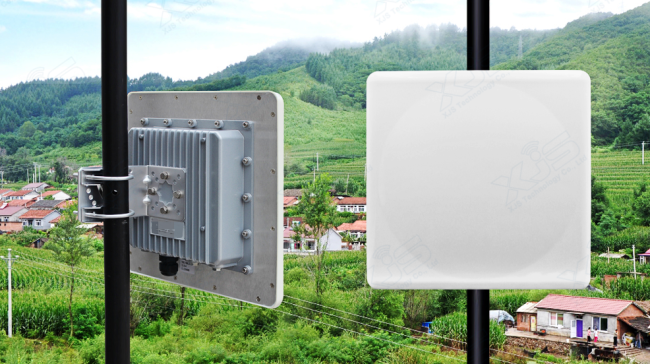

2.4GHz 18dBi panel antenna with radio enclosure
Panel Enclosure Antennas are high performance directional panel antennas suitable for indoor and outdoor applications in the 2.4GHz band allowing the integration of the customer's electronic equipment inside.

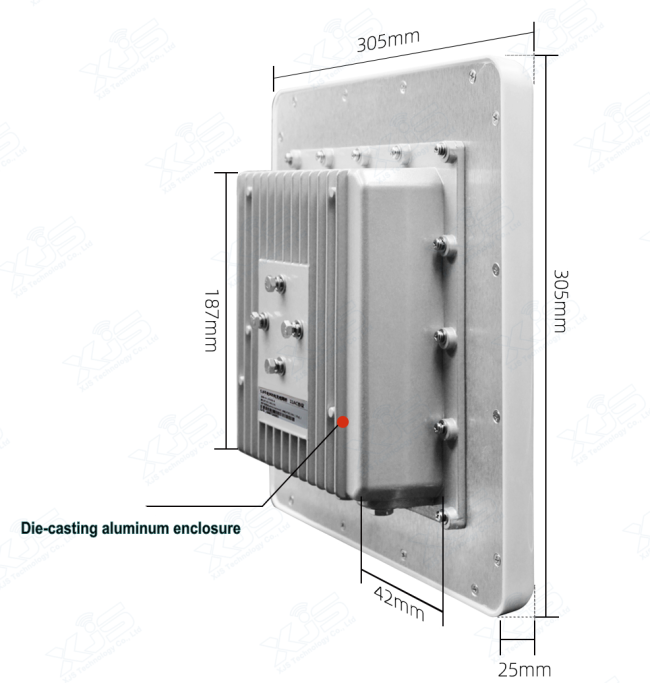

The weatherproof aluminum die-casting enclosure provides an enclosed space to mount radios, amplifiers, and other electronic equipment directly behind the panel antenna. Standoffs are provided to help mount equipment securely into the equipment bay.
Features
- Heavy duty all weather radome
- Can be mounted for horizontal or vertical polarization
- DC ground lightning protection

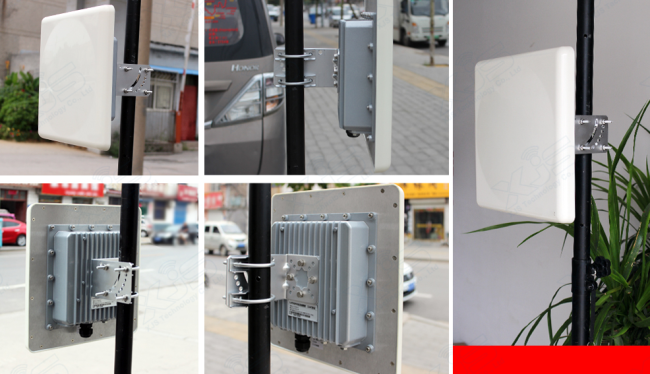

- Includes tilt and swivel mast mount
- N-Female connector
Application
- 2.4 GHz Indoor/Outdoor Wireless LAN systems
- Subscriber sites and CPE applications
- Supports IEEE 802.11b/g/n applications
- WiFi and 2.4 GHz wireless video systems
- Public wireless hotspots
Electrical Specifications
| Frequency Range | 2400-2500 MHz |
| Gain (dBi) | 18 dBi |
| Horizontal Beamwidth | 20° |
| Vertical Beamwidth | 20° |
| VSWR | <1.5 |
| Polarization | Vertical |
| F/B Ratio | ≥25db |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | N-female |
| Dimensions | 306 x 306 x 30mm |
| Weight (Kg) | 2.6 kg |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |
| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |

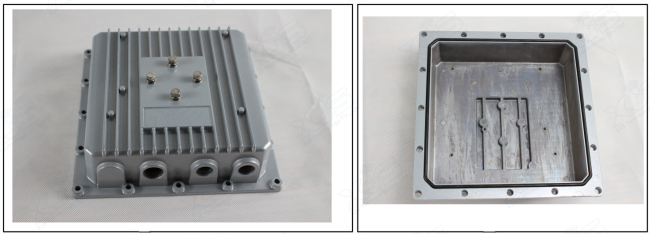

Enclosure Specification
| Outer Dimension: | 220*220*60mm |
| Inner Dimension: | 190*190*50mm |
| Number of ports: | 4 |
| Max Port size: | 21mm |
