Wind Resistant WiFi Wlan 4G LTE Antennas 24dBi Grid Parabolic Antenna Feeder
Features
* 24dBi directional operation, ideal for extraordinary long-distance outdoor directional connection
* Weather proof design, suitable for all weather conditions
* N Female connector, applicable in most outdoor solutions
Application
* 2.4 GHz ISM band
* 1700-2700MHz band
* IEEE 802.11b/g/n Wireless LAN applications
* WiFi systems and long range directional applications
* Point to Point systems and Point to Multi-Point systems
* Wireless bridges, backhaul applications and wireless video systems
Electrical Specifications
| Frequency Range | 1700-2700 MHz |
| Gain (dBi) | 2×24 dBi |
| Horizontal Beamwidth | 10°~15° |
| Vertical Beamwidth | 10°~15° |
| VSWR | <1.8 |
| Polarization | Horizontal+Vertical |
| F/B Ratio | ≥30db |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | 2×N-female |
| Dimensions | 60×90cm |
| Weight (Kg) | 2kg |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |
| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |
Product Images

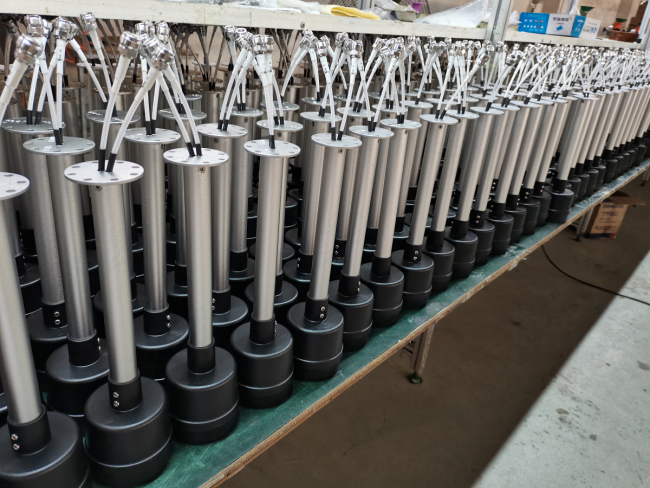

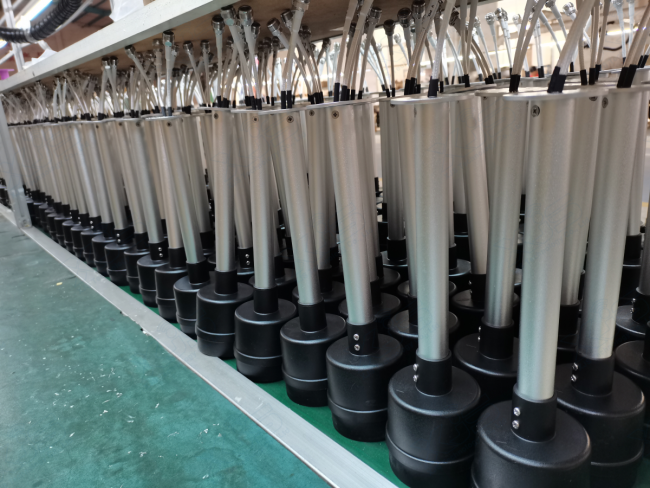

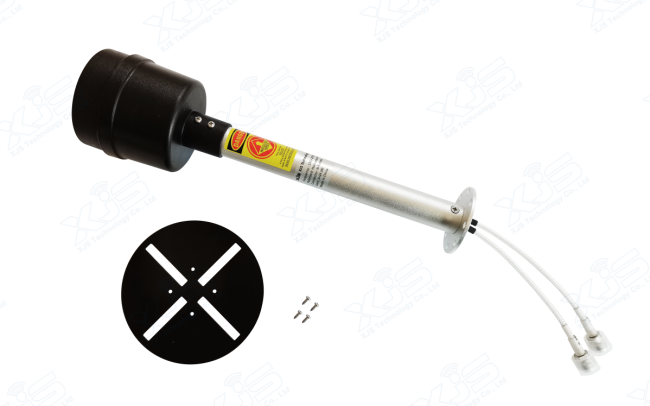

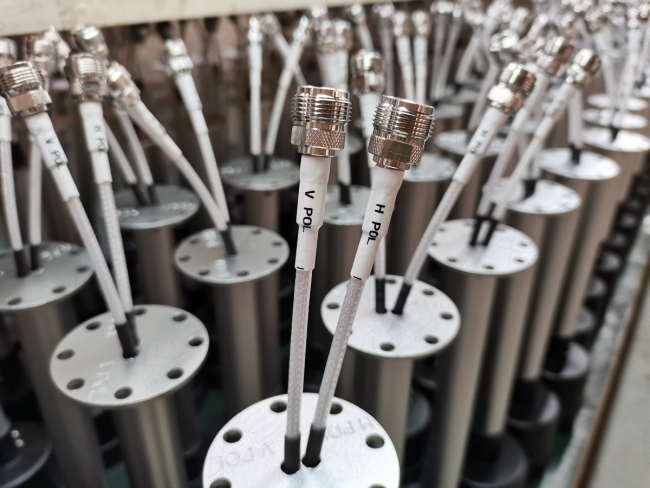

XJS's 1700-2700MHz 24dBi antenna feed horn uses pure copper connectors, which are better than other zinc alloy connectors on the market, ensuring the performance of the antenna so that it can work well.
 |
 |

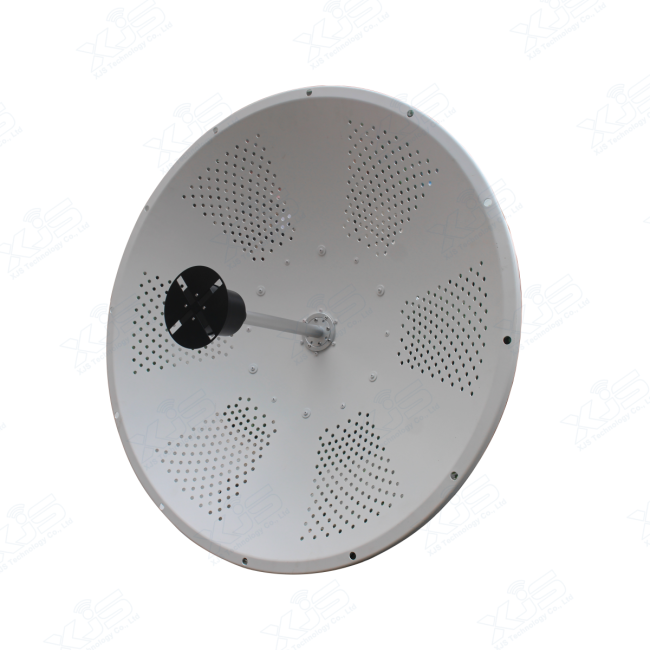

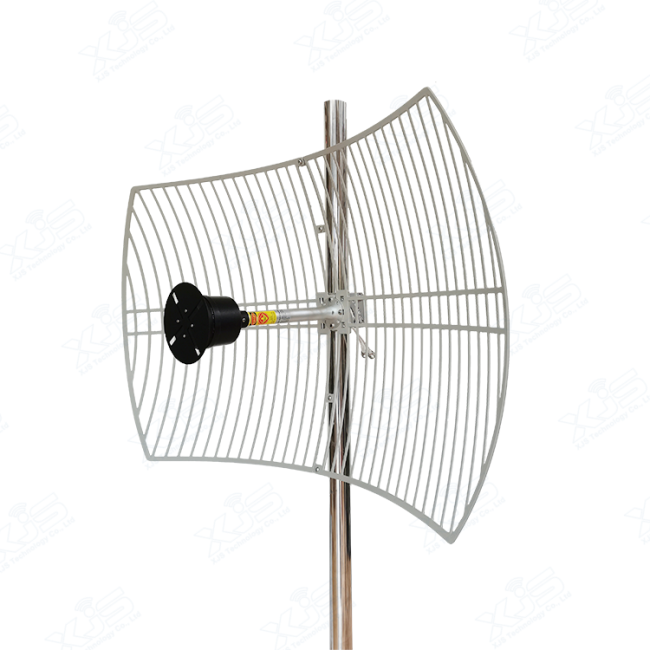

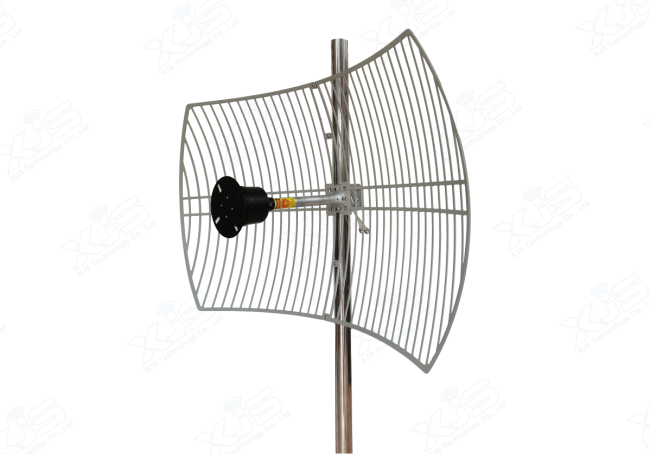

The 1700-2700MHz 24dBi MIMO antenna feed horn is compatible with Dia.90cm dish or 60×90cm grid.
