High Gain PtP 5GHz 29dBi 2x2 Mimo Wifi Antenna For WISP Base Station
Price:
$56~60/piece
MOQ:
2
Delivery Time:
5~15 work days
Brand:
XJS
Product Description
5 GHz 29dBi Long Range WiFi 2×2 MIMO Dish Antenna
This is a High Gain PtP Antenna Dual Polarized 2x2 MIMO Parabolic Dish Antennas
It is a perfect match for 802.11a MIMO access points and bridges. It also supports the new 6.2 GHz and 6.4 GHz radios now available. Both ports support 4.8 GHz - 6.5 GHz operation.
Features
- Expanded Coverage: 4800 MHz to 6500 MHz
- 2 ports, Suits for Radio like RocketM5, Mimosa C5c
- Cross Polarized, ±45° Polarization (Polarization Diversity)
- All-Weather Outdoor Operation
- MIMO Applications
- 5 GHz 802.11a
- Wi-Fi Hotspots
- WISP Base Station
- WiMAX
Electrical Specifications
| Frequency Range | 4800-6500 MHz |
| Gain (dBi) | 29 dBi |
| Horizontal Beamwidth | 6.5° |
| Vertical Beamwidth | 6.5° |
| VSWR | <1.8 |
| Polarization | ±45° |
| F/B Ratio | ≥30 dB |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | Customized |
| Dimensions | 420*420*120 mm |
| Weight (Kg) | 20kg/4pcs |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |
| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |

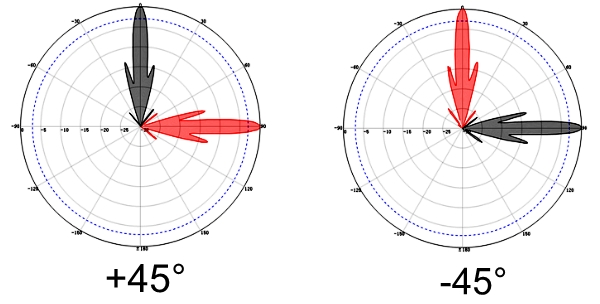

RF Antenna Patterns
Details
Package Included
Installation Guide
