34dBi 720mm Parabolic Ultra Wideband Mimo Antennas With SMA*2 Connector
Price:
USD 72-82
MOQ:
2
Delivery Time:
15-20 wroking days
Brand:
XJS
Product Description

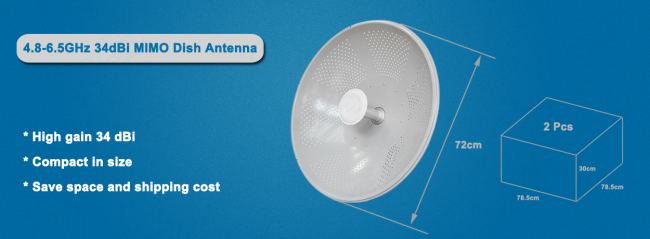

Long range 4.9-6.5GHz 34dBi 720mm WiFi Wlan mimo dish antenna
New Arrival TDD-4965-34 is a ultra performance wideband dual polarized solid dish antenna with ultra electrical performance and mechanical stability, the parabolic dish antenna can be used in a wide variety of 4.9GHz and 6.5 GHz range (4.9/5.1/5.3/5.4/5.8/6.5GHz) wireless applications.
Applications
- 5 GHz ISM and UNII band
- 802.11n MIMO and WiMax
- Long-range applications
- Point-to-point
- Point-to-multipoint
- Backhaul/client antenna
Features
- Dual polarity feed
- Aluminum reflector dish
- UV stable light gray polymer finish
- All weather operation
- Includes tilt and swivel mast mount kit
Electrical Specifications
| Frequency Range | 4900-6500 MHz |
| Gain (dBi) | 34 dBi |
| Horizontal Beamwidth | 3.4° |
| Vertical Beamwidth | 3.4° |
| VSWR | <1.8 |
| Polarization | ±45° |
| F/B Ratio | ≥45db |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | 2*SMA |
| Dimensions | Φ720mm |
| Weight (Kg) | 7 kg |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |
| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |
RF Antenna Patterns
Compare With Current Exist Dish Antenna In The Market
| Picture |  |
 |
 |
| Item | Rocket Dish | Current exist dish | XJS New Design dish |
| Freq. | 4.9-5.8 GHz | 5.1-5.8 GHz | 4.9-6.5 GHz |
| Gain | 34dBi | 32dBi | 34dBi |
| Dimension | Φ1050mm | Φ900mm | Φ720mm |
| Weight | 13kg | 12kg | 7kg |
| F/B Ratio | ≥42db | ≥38db | ≥45db |
XJS NEW Design Dish Antenna Advantage:
- Compact in size
- Ultra high gain
- Amazing F/B Ratio
Product Details
Package Included
Packing
- 1 pcs or 2 pcs in one carton is available.
- Compact in packing size, save your delivery cost
- Foam packing, strong protection during delivery.
Installation Guide
