Long Range 4.9GHz To 6.5GHz 5ghz Mimo Dish Antenna 32dbi 900mm
Price:
USD 72-82
MOQ:
20
Delivery Time:
Negotiable
Brand:
XJS
Product Description

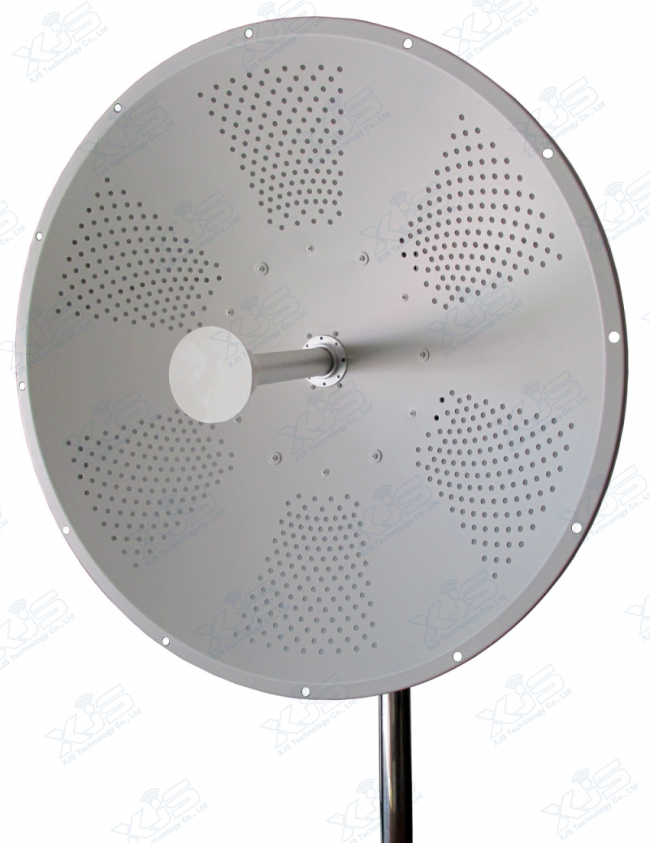

Long Range 4.9-6.5GHz 5ghz 32dBi 900mm WiFi Wlan Mimo Dish Antenna
TDD-4965-32HV is a ultra performance wideband dual polarized solid dish antenna with ultra electrical performance and mechanical stability, the parabolic dish antenna can be used in a wide variety of 4.9GHz and 6.5 GHz range (4.9/5.1/5.3/5.4/5.8/6.5GHz) wireless applications.
Applications
- 5 GHz ISM and UNII band
- 802.11n MIMO and WiMax
- Long-range applications
- Point-to-point
- Point-to-multipoint
- Backhaul/client antenna
Features
- Dual polarity feed
- Aluminum reflector dish
- UV stable light gray polymer finish
- All weather operation
- Includes tilt and swivel mast mount kit
Electrical Specifications
| Frequency Range | 4900-6500 MHz |
| Gain (dBi) | 32 dBi |
| Horizontal Beamwidth | 3.5° |
| Vertical Beamwidth | 3.5° |
| VSWR | <1.8 |
| Polarization | Horizontal+Vertical |
| F/B Ratio | ≥38dB |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | 2*N-female |
| Dimensions | Φ900mm |
| Weight (Kg) | 13kg |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |
| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |

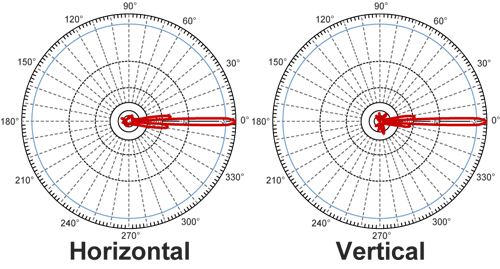

RF Antenna Patterns

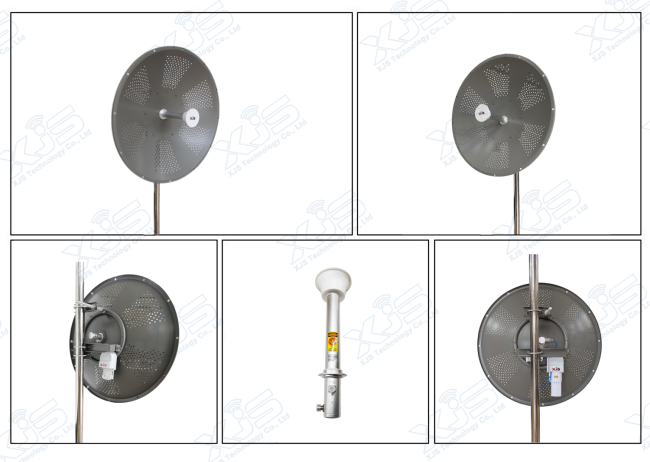

Details

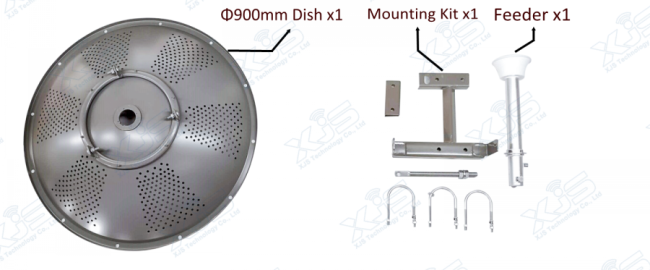

Package Included

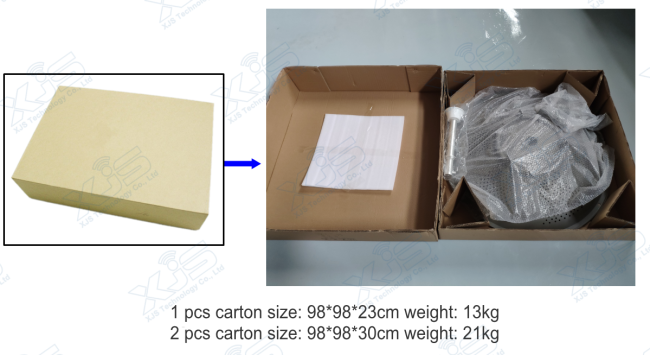

Packing
Packing Details
