2.4/5.8GHz 14dBi 17dBi WiFi WLAN MIMO Sector Antenna Dc Ground
2.4/5.8GHz 14dBi 17dBi WiFi WLAN MIMO Sector Antenna
Dual band sector antenna containing one 14 dBi 2.4 GHz antenna in horizontal polarization and one 17 dBi 5.8 GHz antenna in vertical polarization.
The TDS-2458-17 is a high performance dual-band panel antenna. Its dual-band design makes it suitable for applications in the 2.4GHz (2400-2500 MHz) and 5.8 GHz (5725-5850 MHz) band which and eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications.
Features
- Dual band: 2.4 GHz and 5.8 GHz
- Dual feed via (2) Integral N-Female Connectors

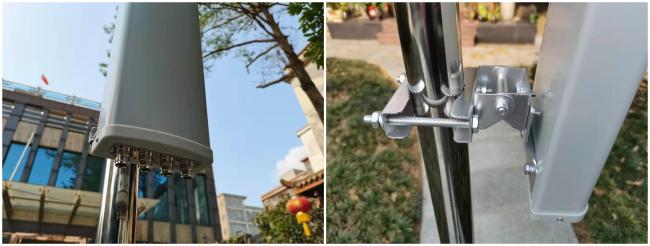

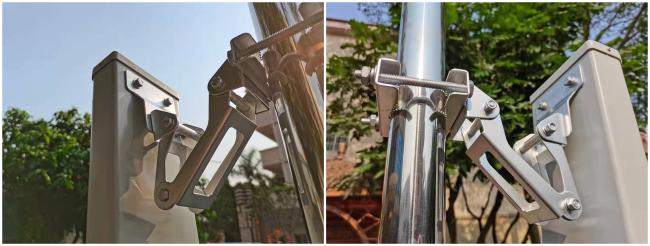

- Includes mast mounting hardware
- All weather operation
Application
- Homeland Security and Public Safety Services: Fire, Police, Security
- 802.11a, 802.11b, 802.11g, 802.11n and 802.11ac access points and routers
- WiFi Systems
- WiMAX Technology
- Wireless Internet Provider "cell" sites
Electrical Specifications
| Frequency Range | 2400-2500 MHz |
| Gain (dBi) | 17 dBi |
| Horizontal Beamwidth | 90° |
| Vertical Beamwidth | 7° |
| VSWR | <1.5 |
| Polarization | H+V |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | Customized |
| Dimensions | 960*128*58 mm |
| Weight (Kg) | 3.2 kg |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |

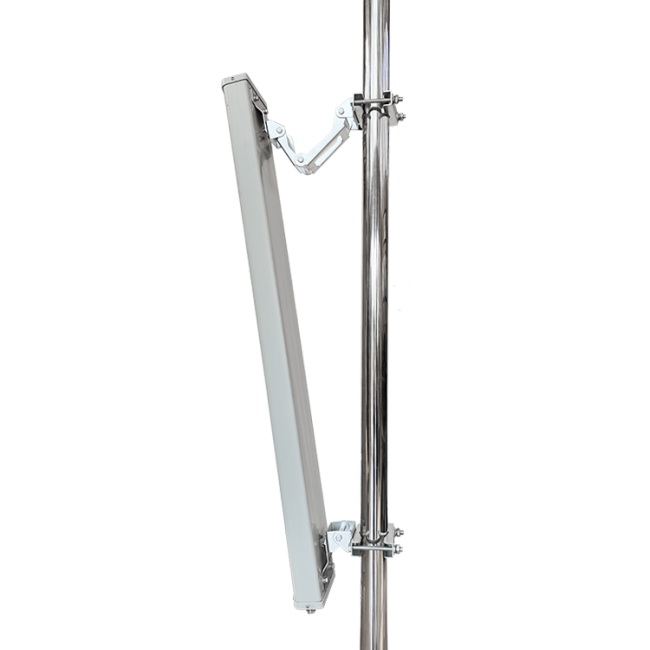

| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |

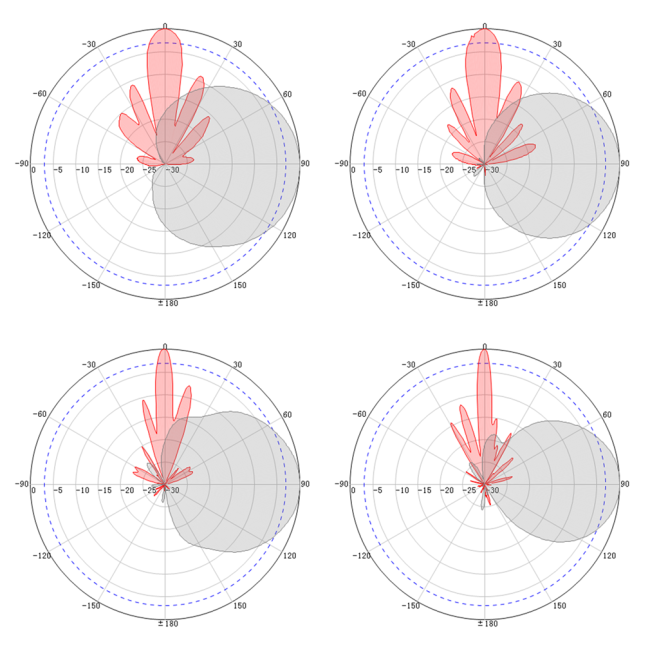

RF Antenna Patterns
