3200-4200MHz 3.5GHZ Antennas Parabolic 30dBi Dish Antenna
Price:
USD 59-65
MOQ:
20
Delivery Time:
15-20 working days
Brand:
XJS
Product Description

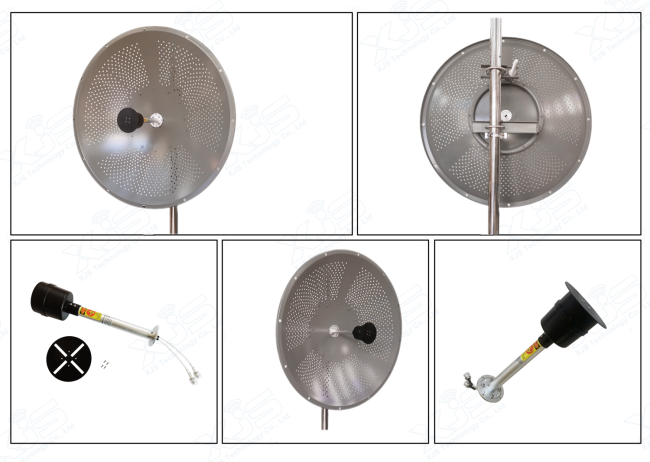

5G Long Range 3.5GHz 30dBi WiFi Wlan Mimo Dish Antenna
3.5 GHz Parabolic Dish Antenna features excellent front to back ratio. It is ideally suited for directional applications, backhaul applications and point to point systems. Typical applications include IEEE 802.16e, WiMAX and Mobile WiMAX applications.
Features
- Superior performance
- All weather operation
- UV stable powder coat finish
- Die-cast aluminum construction
- Easy to assemble
Application
- 3.5 GHz Wireless access system
- Point to Point (PtP) and Multi-point to Point (MPtP) Systems
- Wireless Bridges
- Long-range Directional Applications
Electrical Specifications
| Frequency Range | 3200-4200 MHz |
| Gain (dBi) | 30 dBi |
| Horizontal Beamwidth | 4° |
| Vertical Beamwidth | 5° |
| VSWR | <1.8 |
| Polarization | Horizontal+Vertical |
| F/B Ratio | ≥28db |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | 2*N-female |
| Dimensions | Φ900mm |
| Weight (Kg) | 13.5kg |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |
| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |

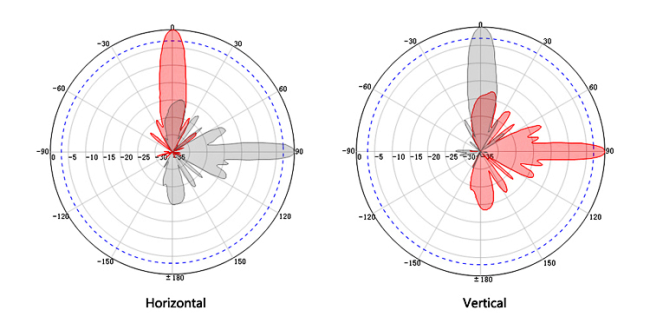

RF Antenna Patterns
