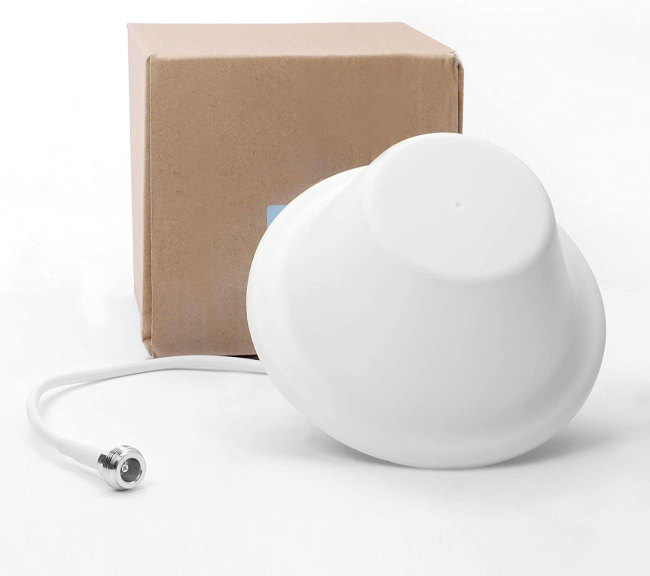

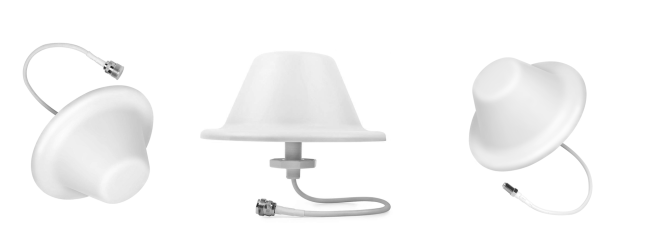

3dBi Multi Band DAS Distributed Antenna For Indoor Wireless Network
2G 3G 4G LTE GSM WiFi RFID 698-2700MHz Indoor dome omni ceiling Antenna For Communication

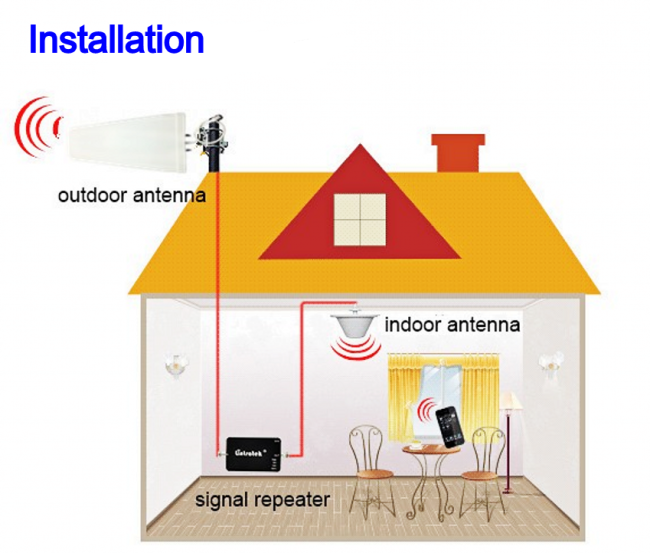

This is high performance omni directional ceiling antenna specifically designed for indoor wireless networks such as DAS (Distributed Antenna Systems) which are used to distribute Cellular and WiFi signals throughout a building or area. The Multi-Band design of this antenna eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of indoor wireless applications where wide coverage is desired.
Applications:
• Full Band (698 – 2700 MHz) Broadband
• 2G/3G/4G and WLAN systems
• Omni-directional antenna broadcasts signal in all directions
• 3 dBi Gain
• Mounts to ceiling
• Easy to install
Electrical Specifications
| Frequency Range | 698-960 | 1700-2700 | |
| Gain (dBi) | 3 dBi | 5 dBi | |
| Horizontal Beamwidth | 360° | ||
| Vertical Beamwidth | 60° | ||
| VSWR | <1.5 | ||
| Polarization | Vertical | ||
| Impedance | 50Ω | ||

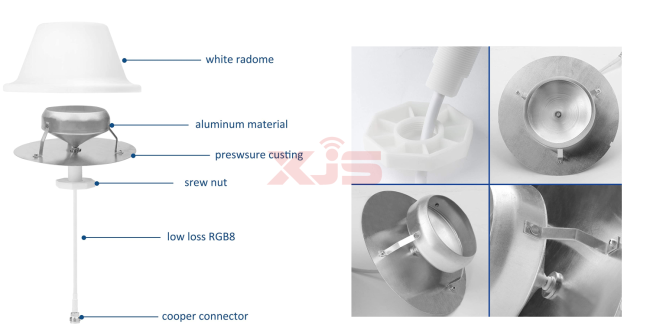

Mechanical Specifications
| Connector | Customized |
| Dimensions | Φ 185*90mm |
| Weight (Kg) | 0.3 kg |
| Lightning Protection | Dc Ground |
