Dia 75mm 5150-5850MHz Long Range WiFi Antenna MIMO Point To Multipoint Antenna
Price:
Negotiable
MOQ:
2
Delivery Time:
Negotiable
Brand:
XJS
Product Description
Omni Directional 5.8 GHz 12 dBi WiFi Dual Polarizedmimo Omni antenna

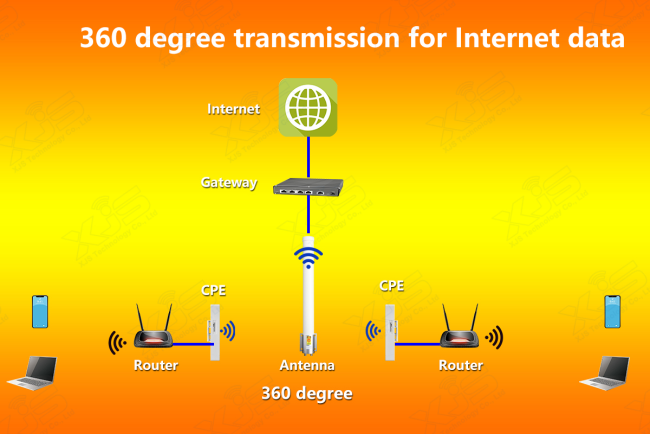

This Omni directional Antenna combines vertical and horizontal polarization with high gain in a single enclosure. It is a professional quality antenna designed primarily for MIMO point-to-multipoint applications in the 5.1-5.8 GHz frequency band.
Applications
- 5.1-5.8 GHz Outdoor Wireless LAN systems
- Supports 1x2 and 2x2 MIMO AP/Routers
- IEEE 802.11a/n applications
- WiMax, WISP, WiFi, Communication
Features
- MIMO - Multiple-Input and Multiple-Output
- UV-resistant radome for all-weather operation
- Includes mast mounting hardware
Electrical Specifications
| Frequency Range | 5150-5850 MHz |
| Gain (dBi) | 12 dBi |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 7° |
| VSWR | <1.8 |
| Polarization | Horizontal and Vertical |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | Customized |
| Dimensions | Φ75*765mm |
| Weight (Kg) | 2.5 kg |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |
| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |

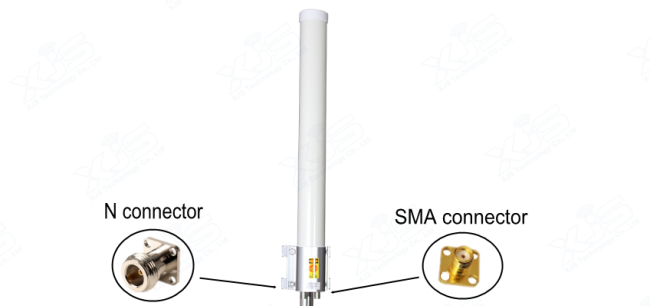

Antenna Connector is Customized
