China 2.4/5GHz 14dBi Directional Panel Antenna MIMO High Gain Dual Band WiFi Antenna for sale

2.4/5GHz 14dBi Directional Panel Antenna MIMO High Gain Dual Band WiFi Antenna

Price Negotiable

Price: USD 72-82

MOQ: 20

Delivery Time: Negotiable

Brand: XJS

Product Description

Dual Band 2.4/5GHz 14dBi Directional Panel Antenna Outdoor MIMO High Gain Dual Band WiFi Antenna

The TDP-2458-14 is a high performance dual-band external panel antenna which combines high gain 14dBi. Its dual-band wifi design makes it suitable for applications in the 2.4GHz (2400-2500 MHz) and 5.8 GHz (5725-5850 MHz) band which and eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications.

We welcome customized dual band wifi antenna SMA or N-Female connector type!

Features

Dual band: 2.4 GHz and 5.8 GHz
Dual feed via (2) Integral N-Female Connectors

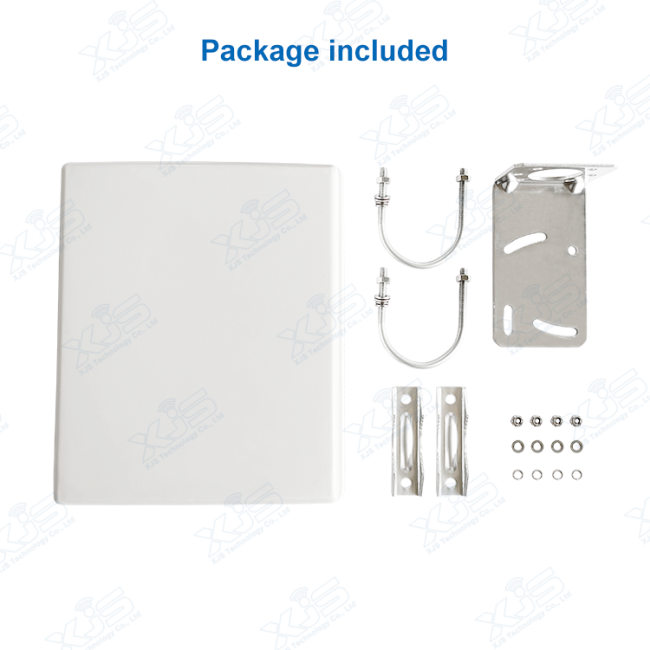

Includes mast mounting hardware
All weather operation

Application

Homeland Security and Public Safety Services: Fire, Police, Security
802.11a, 802.11b, 802.11g, 802.11n and 802.11ac access points and routers
WiFi Systems
WiMAX Technology
Wireless Internet Provider "cell" sites

Electrical Specifications

Frequency Range	2400-2500/5725-5850 MHz
Gain (dBi)	14 dBi
Horizontal Beamwidth	68°/15°
Vertical Beamwidth	65°/15°
VSWR	<1.5
Polarization	Vertical
F/B Ratio	≥25db
Impedance	50Ω

Mechanical Specifications

Connector	N-female

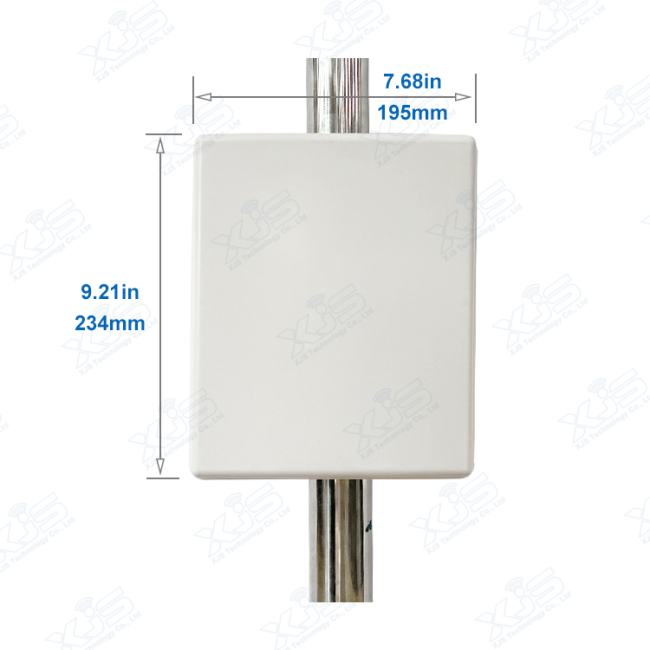

Dimensions	234 x 194 x 35mm
Weight (Kg)	1.6 kg
Lightning Protection	Dc Ground
Rated Wind Speed	126/ms

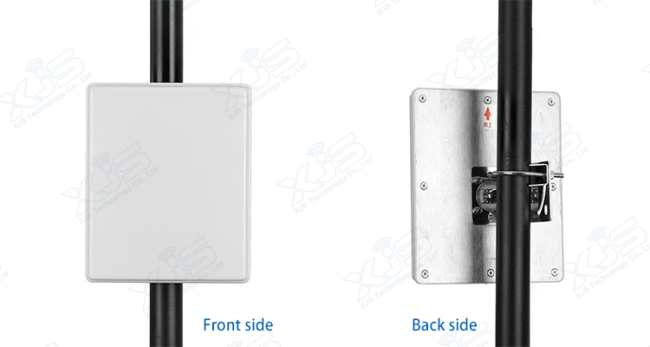

Mounting Type	Pole Mount
Suitable pole diameter	Ф30-80mm
