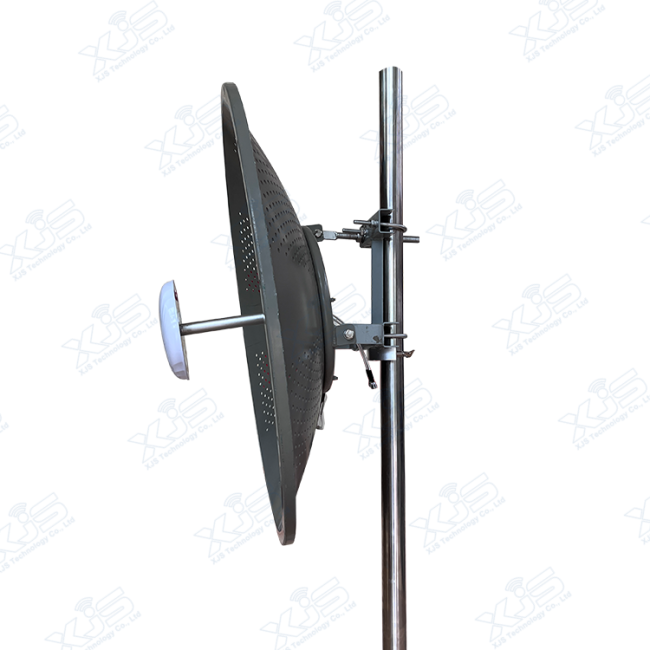

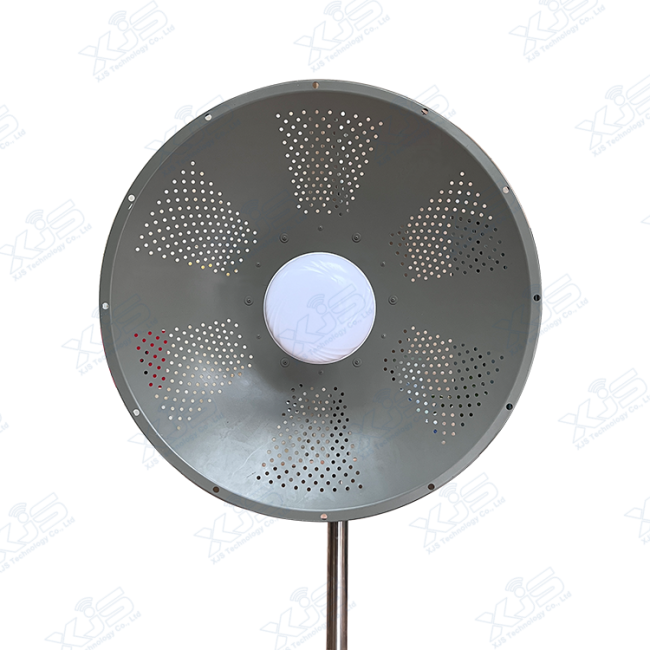

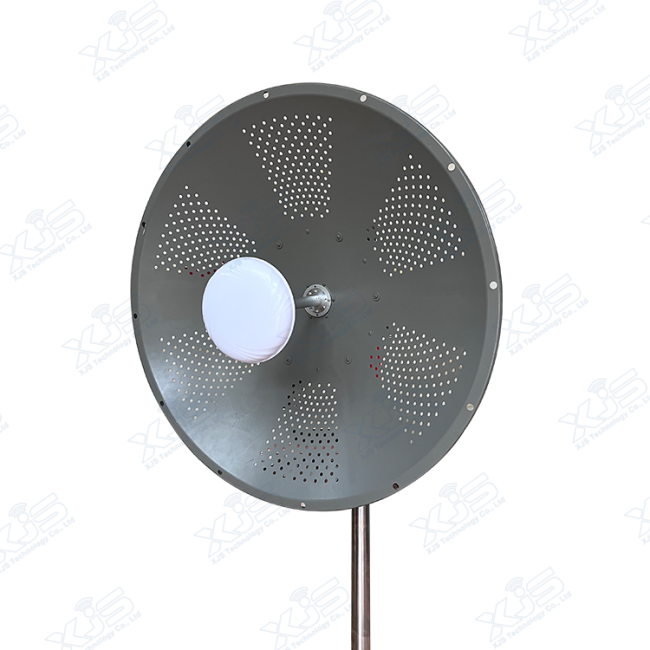

Aluminum Reflector Parabolic Dish 5G Communication Antenna Dia 900mm 698-3800MHz
Price:
USD 79-95
MOQ:
20
Delivery Time:
Negotiable
Brand:
XJS
Product Description
Ultra Performance 698-3800MHz 30dBi 5G Communication Antenna Dia 900mm Aluminum Reflector Parabolic Dish Antenna
TDD-0638-30HV is a ultra performance wideband dual polarized solid dish antenna with ultra electrical performance and mechanical stability, the parabolic dish antenna can be used in a wide variety of GSM 698-960MHz, 4G LTE 1710-2700MHz and 5G 3300-3800MHz wireless applications.
Applications
- 698-960MHz GSM wireless applications
- 1710-2700MHz 4G LTE wireless applications
- 3300-3800MHz
- Long-range applications
- Point-to-point
- Backhaul/client antenna
Features

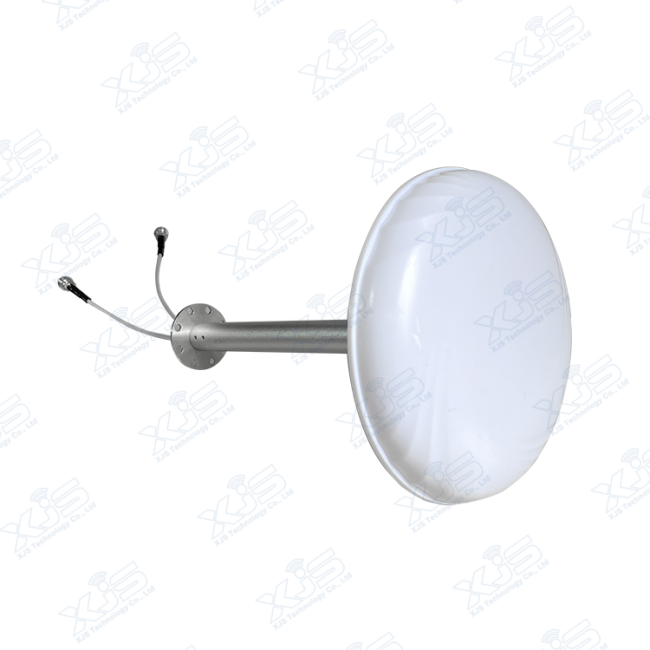

- Dual polarity feed
- Aluminum reflector dish
- UV stable light gray polymer finish
- All weather operation
- Includes tilt and swivel mast mount kit
Electrical Specifications
| Frequency Range | 698-3800 MHz |
| Gain (dBi) | 30 dBi |
| Horizontal Beamwidth | 3.5° |
| Vertical Beamwidth | 3.5° |
| VSWR | <1.8 |
| Polarization | Horizontal+Vertical |
| F/B Ratio | ≥38dB |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | 2*N-female |
| Dimensions | Φ900mm |
| Weight (Kg) | 13kg |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |
| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |
Details
Package Included
Packing
Packing Details
