No Scarring Minimally Invasive Laser Harlas Varicose Veins Medical Devices

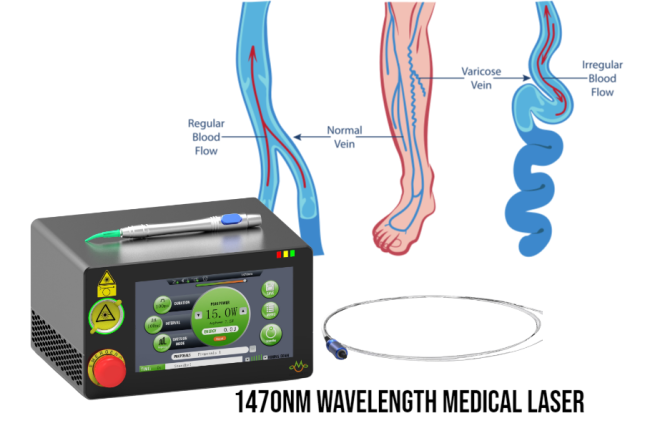

Harlas dual wavelength 1470nm Minimally invasive laser for Vericose Vein
Venous disease is a common occurrence. The long-term effects can have serious consequences if not treated properly. Advancements in medical technology have made older, formerly extensive, surgically invasive venous surgery done in the hospital a rare occurrence. Present day office-based technology allows most venous treatments to be done in a less invasive fashion with faster recovery. Many of the venous procedures are performed in less than an hour with little or no discomfort. Most patients return directly to work.
Harlas dual wavelength 1470nm Minimally invasive laser is an outstanding surgical laser machine designed for endovenous laser treatment. It has a compact and modular design mainly in silver aluminum alloy housing and black tempered glass panel, exuding soft luster, aesthetic feeling and delicate texture. It has a light weight and small size,which is easy to carry and easy in cleaning.
980nm achieving high absorption simultaneously through hemoglobin and water, due to its wavelength, thus with a high ablation capacity which leads to complete clusure of treated vein . The 1470nm wavelength,cooperating with a radial, is very precise and additionally protects the patient against excessive heating of the tissues surrounding the removed vein.
Technical Specifications Of Harlas Surgical Laser
| Laser Type | GaAIAs Diode Laser | ||||
| Wavelength | 980nm | 1064nm | 1470nm | 980nm+1470nm | 650nm+810nm+980nm+1064nm |
| Maximum Power | 30W/45W | 30W | 15W | 15W+10W | 2mW+15W+15W+15W |
| Operation Mode | CW, Single or Repeat Pulse | ||||
| Pulse Duration | 10us -3s | ||||
| Repetition Rate | 0.2Hz – 50KHz | ||||
| Pilot Beam | Red Diode Laser of 650nm, Power <5mW | ||||
| Control Mode | True Color Touch Screen (7 inches, resolution 1024*600px) | ||||
| Transmission System | Medical Fibers with SMA905 Connector | ||||
| Dimensions | 230(W) * 180(L) * 135(H)mm | ||||
| Weight | 3.5KG | ||||
Sensitive Touch Screen And Easy-To-Use Interface
- Harlas surgical laser gets a 7-inch color touch screen with high resolution 1024*600px that users can easily perform various kinds of surgical treatments or make various settings in a few taps.
- The intuitive operation system with power level, three operating mode (cw, single pulse, repeat pulse) and timer selections allows the user to use, adjust and save protocols easily.
- The screen brightness can be customized and adjusted for each operating environment.
0.1W~45W Surgery Laser Machine Of Different Wavelengths
Harlas surgical laser offers various wavelengths such as 650nm, 810nm, 980nm, 1064nm, 1470nm and etc. for doctors to select in line with the clinic treatment. Different wavelengths have different absorption capability and penetration characteristics, meeting a variety of actual clinical needs such as ablation, coagulation, vaporization and etc. Harlas surgical laser is developed with a wide selection of output powers from 0.1W to 45W, providing high flexibility for surgery doctors to choose according to the practical surgery and therapy application requirements.
Providing A Complete Set Of Accessories
Harlas surgery laser equipment is specially developed with a full set of accessories which makes it available for multiple surgery and therapy treatment uses. Its accessories include safety goggles, fiber cutter, fibers, footswitch, surgical handpieces, fiber stripper, therapy handpieces. The full-range of accessories and our comprehensive services will bring you a convenient one-stop experience.
Stable Working Performance, Long Stability And Competitive Price
Harlas surgical laser is designed with enhanced internal hardware structure and optimized software programs that it can be applied in various surgery and therapy scenarios for a long time with optimal performance and reliability. We also provide excellent after-sales service, free-warranty service and custom service for our customers. While maintaining the Germany quality, we provide competitive price for wholesalers and distributors!
