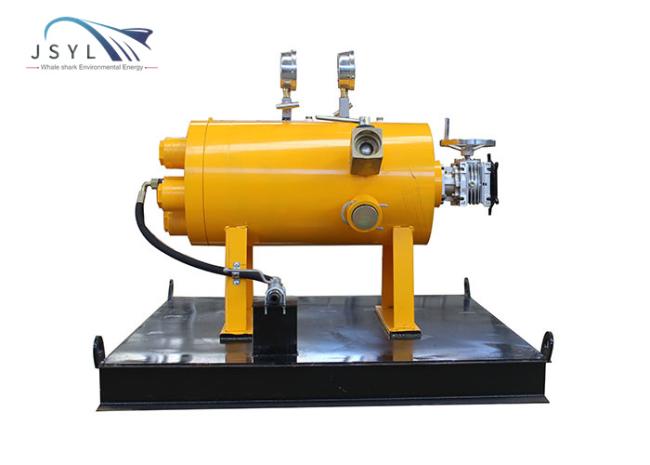

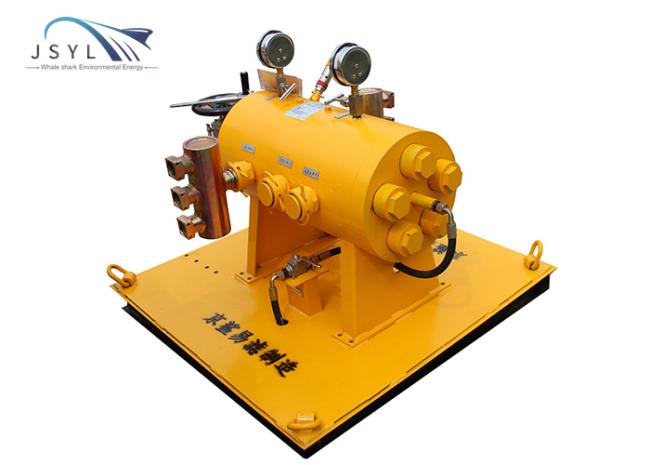

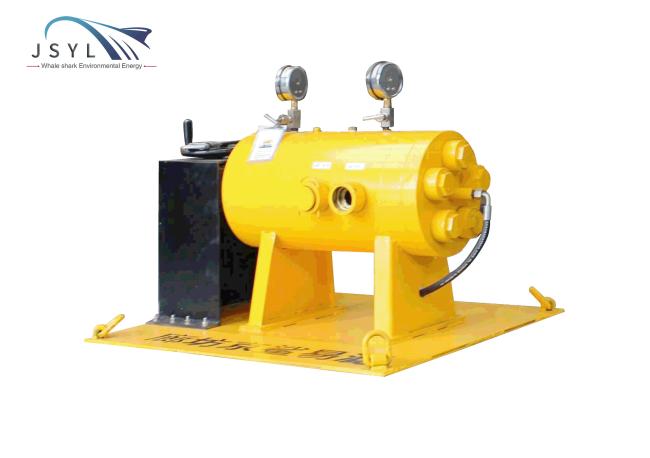

1000L manual high pressure backwash filter station

Introduce:

The equipment can meet the cleanliness requirements of the hydraulic fluid for system operation and downstream processes, and can also be used to protect key downstream equipment from particle blockage, abrasion or fouling, improve the operating efficiency and service life of key equipment, and ensure the safe operation of the system. The machine can continuously filter on-line, backflush and discharge the sewage without stopping; continuous flow; high precision; large effective area; high pressure resistance and other advantages.

Principle:
The same equipment can achieve three filtration precisions of coarse, medium and fine; the liquid enters the body through the inlet for filtration, and the impurities are deposited on the stainless steel filter screen. When the inlet pressure and outlet pressure reach the set value; manually open the drain valve and turn the hand wheel of the reducer, As a result, the backwashing node plate rotates 360 degrees, and the high-pressure filter element is sequentially backwashed, and the online backwashing will not stop and flow continuously.

Applicable fields:
It is mainly used to filter the emulsion of hydraulic support underground in coal mines, filter out metal particles and rubber impurities of seals in the hydraulic system, and keep the liquid flowing back to the tank clean.
