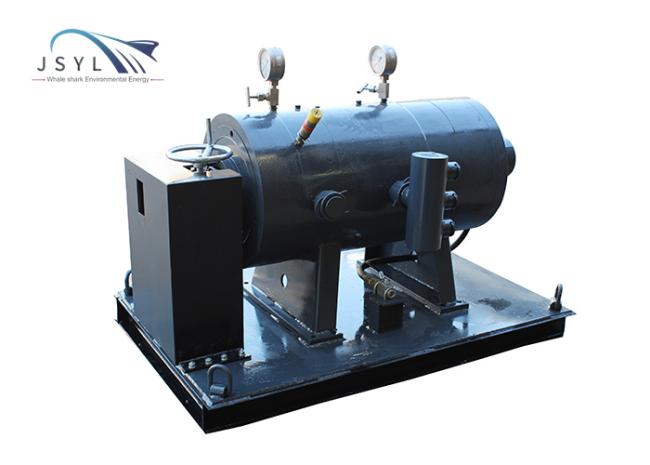

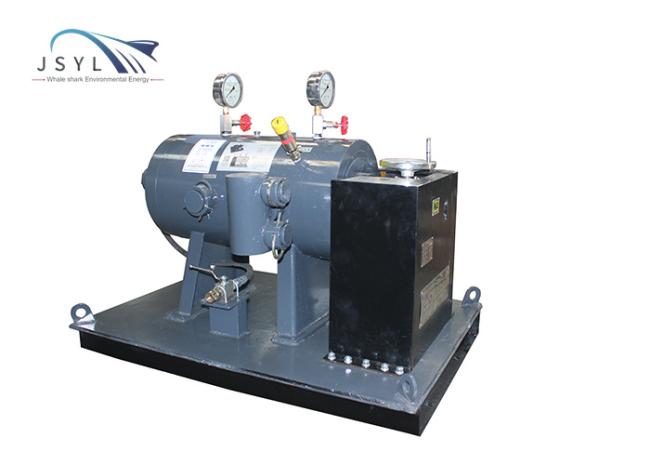

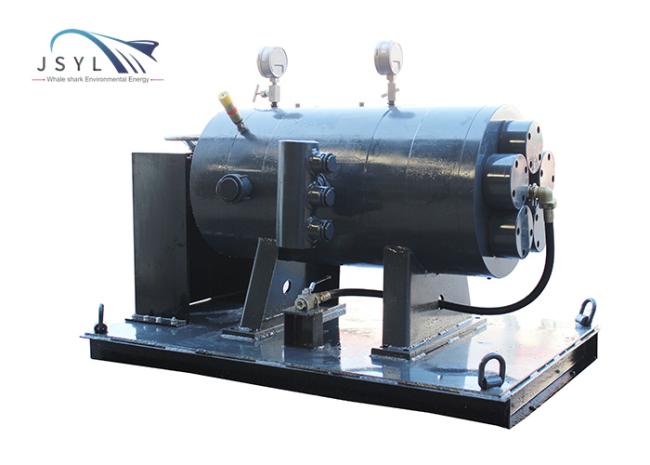

Manual mine high pressure backwash filter station

Introduce:

The equipment can meet the requirements of system operation and the cleanliness of the hydraulic fluid in the next process, and can also be used to protect downstream key equipment from particle blockage, abrasion or fouling, improve the operating efficiency and service life of key equipment, and ensure the safe operation of the system. The machine can continuously filter on-line, backflush and discharge the sewage without stopping; continuous flow; high precision; large effective area; high pressure resistance and other advantages.

Applicable scope/field:

It is mainly used for the filtration of emulsion and emulsified oil of hydraulic supports. The emulsion tank and hydraulic pump are used together as the first-stage filter at the outlet of the pumping station to protect the supports and hydraulic equipment for coal mining.

Features:

The same equipment can achieve three filtration precisions of coarse, medium and fine; the liquid enters the body through the inlet for filtration, and the impurities are deposited on the stainless steel filter screen. When the inlet pressure and outlet pressure reach the set value; manually open the drain valve and turn the hand wheel of the reducer, As a result, the backwashing node plate rotates 360 degrees, and the high-pressure filter element is sequentially backwashed, and the online backwashing will not stop and flow continuously.
