DN300 100 Micron Simplex Multi Core Backwash Filter

Price Negotiable
Price: Negotiable
MOQ: 1 set of
Delivery Time: generally 35 days
Brand: JSYL
Product Description

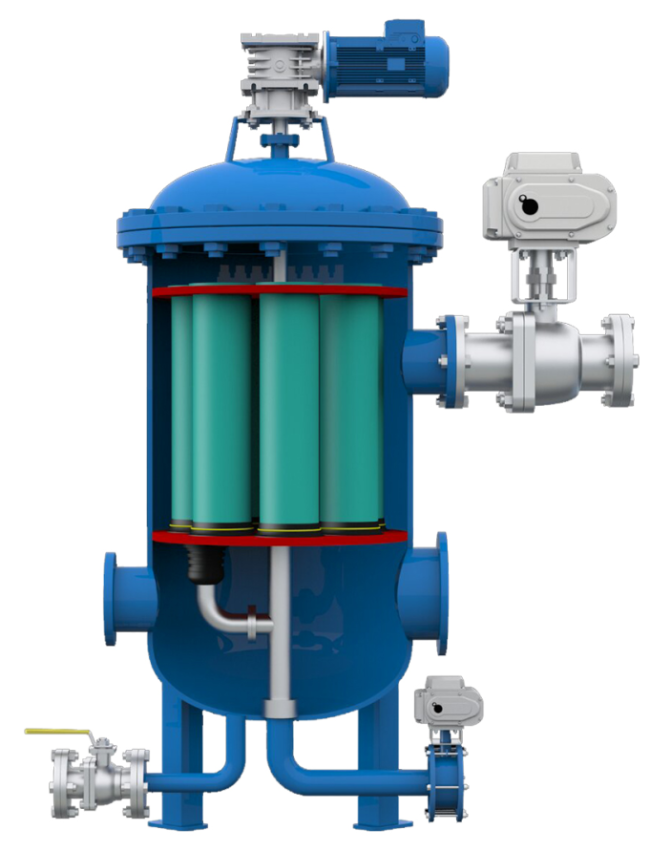

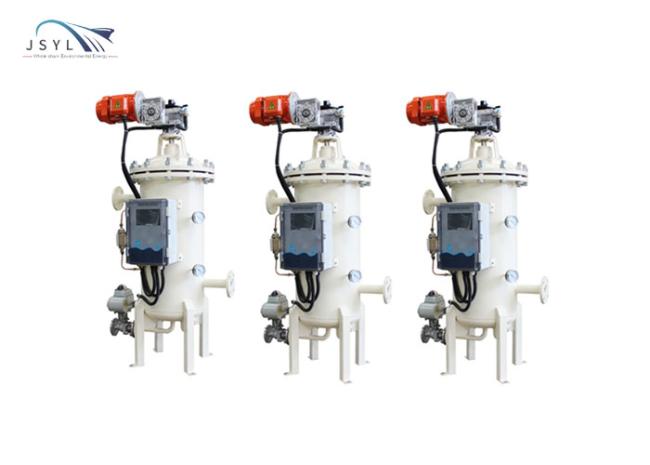

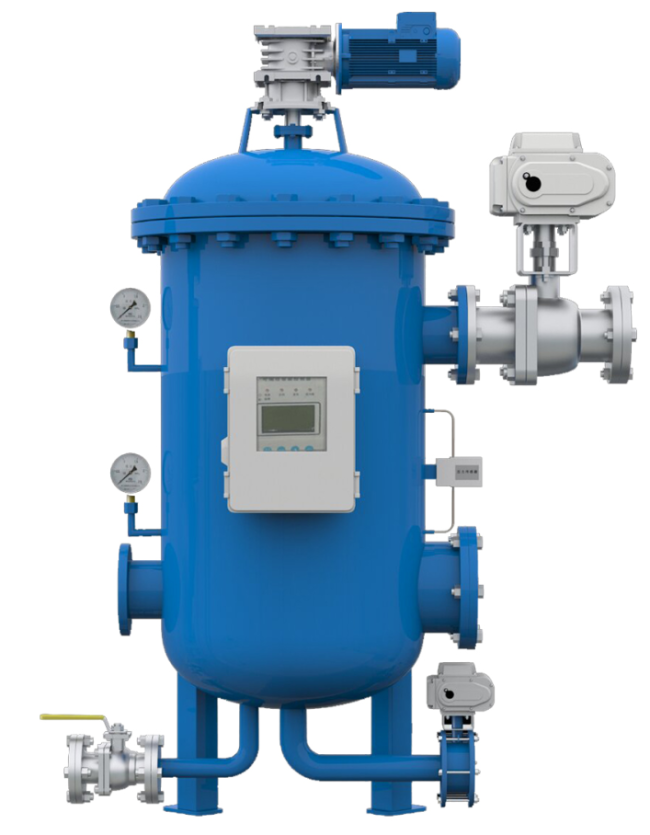

DN300-100 micron simplex multi-core backwash filter




Describe
JSYL series simplex multi-core backwash filter is equipped with an automatic cleaning control system, integrated pressure difference control and time control parallel control function, can control the filter to run efficiently according to the working conditions, intelligent control can be remote; support on-site control and adjustment.





PRODUCT PARAMETER
Specifications Equipment parameters Specifications Equipment parameters
Equipment model

JSYL-DDX-ZD-DN300

Cleaning method Equipment's own filter element backwash
Shell selection Carbon steel/stainless steel Filter element form Multi-layer woven mesh sintered
Single machine flow
600-700 m3/h
Number of filter elements
7 elements
Rated pressure 1.6MPa/2.5MPa/4.0MPa Filtration accuracy 100 μm
Applicable viscosity (cp) 1-40cp Applicable temperature (°C) 0-95°C
Operation mode Fully automatic intelligent control Filter element replacement Large cover flange replacement filter element
Backwashing components
304 stainless steel Filter element design Cover replacement
Power unit Compound reducer Position proximity switch Inductive
Backflushing node Seven-star node disk Pressure gauge Seismic pressure gauge
Filter replacement cycle Half a year/more than one year Installation method Vertical





After-sales service:
1. The product implements three guarantees, the quality period is one year, and the technical service is provided for life.
2. The supplier provides the basic drawings of the product and is responsible for providing technical guidance when making the foundation.
3. During the commissioning and equipment commissioning warranty period, if the equipment is damaged due to our responsibility, we will repair and replace it free of charge. If the equipment is damaged due to improper transportation and delivery management, we have the responsibility to cooperate with the buyer. Do a good job in service.
4. After the contract is signed, we will train the demand-side operation and maintenance personnel for free.
5. During the commissioning and equipment commissioning warranty period, if the equipment has quality problems, we guarantee to reply immediately after receiving the notice from the demander, and send technicians to the scene to deal with the problem within 4 hours.
