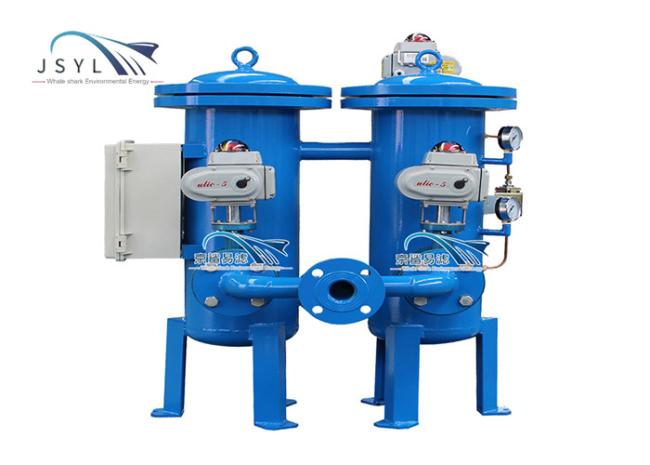

JSYL-S5-DN100 double complementary backwash filter


Introduction

The double-pass complementary backwash filter operates on pure mechanical principle; it automatically discharges sewage; it flows continuously during the backwash. The cleaning cycle can be adjusted (10-3000s), the filtration accuracy is 1-3000um; the working pressure: 0.3-4.0Mpa; the water filtration capacity of a single unit: 1-500m3/h; It is manufactured with vacuum sintering and other processes; it has high mechanical strength and overall rigid structure; the reasonable structure of the filter element and advanced production technology enable it to have good filtration accuracy, filtration resistance, mechanical strength, wear resistance, and heat resistance Sex and many other advantages

Application industry:
1. Food and beverage: security filtration before filling; industrial food production process water; syrup and other raw material filtration; removal of impurities generated in the blending process; process filtration of chocolate, jelly, beer, etc.; filtration of suspended solids and sediments in beverages .
2. Automobile manufacturing, electrophoresis paint, metal paint, varnish filtration; engine processing coolant filtration; welding part cooling water filtration; electronics industry pure water; removal of impurities in the copper foil electrolytic stabilization tank, wafer cutting and grinding wastewater circulation filtration;
3. Water quality treatment: filtration of sand, algae and silt deposits in raw water; filtration of steel industry, air conditioning systems, compressor circulating cooling water and frozen water; filtration of removing scale and calcification in water pipes; pre-filtration of membrane purification liquid , Intercept ion exchange resin and so on.
4. Energy and chemical industry: The traditional energy chemical industry is a high-consumption, high-emission, and high-pollution industry; to solve the environmental protection problems of energy and chemical industry, the first thing to do is to solve the problems of recycling and recycling of sewage and discharge management in the production process; so industrial sewage Treatment and sewage recycling are the goals pursued by the company; the dual-pass complementary backwash filter has achieved the goals pursued by energy and chemical companies.
5. Petrochemical industry: oil well water injection, process circulating water, cooling water filtration; lubricating oil, jet fuel and other oil filtration.
6. Fine chemical industry: Resin raw material filtration, remove fibers, gels, and filter solvents in paint; large particles of impurities in ink and particles of substandard grinding fineness, remove agglomerated impurities after mixing reaction; filter large particles of carbon black in adhesives And filler.
7. Industrial manufacturing: lubricating oil filtration, cooling water circulation filtration, heavy metal recovery filtration, ultra-fine grinding oil filtration, cutting fluid, cleaning fluid, filtration of impurities in recycling; used for water treatment filtration in raw material yard, sintering pellet plant, blast furnace , Rolling mill, continuous casting machine and other systems cooling water filtration.
8. Papermaking industry: filtration of all kinds of papermaking water, filtration of raw water, high and low pressure spray water, jet water, white water, sealing water, bearing cooling water, cooling tower water, high and low pressure clean water, etc., filtration of papermaking paint filter aids, Polymers, bentonite, starch liquid, defoamers, sizing agents, lubricants, water repellents, fuels, fillers, pigments, calcium carbonate, latex, etc.
9. Mines: Filter the sprinkling water underground to ensure the normal operation of the system.
10. Power plant: used for the precision pretreatment part of high-purity water preparation of power plant boilers, and filtration of generator cooling water and sealing water;
11. Agricultural gardens: In sprinkler and nozzle systems, equipment blockage and wear caused by impurities should be reduced. Therefore, it is necessary to choose high-precision and high-automated filtration products to ensure the normal operation of the sprinkler irrigation system.

Advantage
1. Fully automatic intelligent control
2. Small size, large flow, high precision
3. Intelligent online backflushing does not stop and flow continuously;
4. The body replaces the filter element, quick-plug design, easy to replace;
5. Multi-filter element structure; precision can be adjusted;
6. It can be installed vertically/horizontally, which significantly saves installation space
7. The filter element has an online recoil precision of 5 microns, which can be used repeatedly.
