H-3566 Smart HMI Mainboard RK3566,quad-core Cortex-A55,Clock up to 1.8GHz Standard 8GB EMMC

H-3566 Smart HMI Motherboard

Overview

     The H-3566 Smart HMI Motherboard brings next-generation edge intelligence to compact form factors, powered by the Rockchip RK3566 quad-core Cortex-A55 processor running at up to 1.8GHz. What sets this board apart is its built-in 1 TOPS NPU — enabling on-device AI inference for face verification, object detection, and intelligent decision-making without cloud dependency. The board supports up to 8GB LPDDR4 memory and features a dual MIPI-CSI camera interface for high-quality image capture, making it ideal for compact smart self-service terminals, face verification devices, service robots, and edge computing applications. With four display interfaces (LVDS up to 1080P, HDMI 2.0a up to 4K, MIPI-DSI, and eDP up to 1080P), Gigabit Ethernet, USB 3.0, SATA 3.0 for mass storage, and 5× configurable serial ports (4 TTL/RS-232 + 1 TTL/RS-485), the H-3566 delivers exceptional versatility in a compact 100mm × 90mm footprint. Ships with Android 11, with Linux Buildroot/Debian 10/Ubuntu 18.04 options available.

Key Advantages

• Built-in 1 TOPS NPU for Edge AI: On-device AI inference for face verification, object detection, and intelligent decision-making — no cloud latency, no external accelerator, lower bandwidth costs, and enhanced privacy.

• Dual MIPI-CSI Camera Interface: 40-pin FPC dual MIPI-CSI port supports stereo vision and dual-camera setups — ideal for face verification with liveness detection, depth sensing, and advanced computer vision applications.

• Compact Form Factor with Big-Board Features: At just 100mm × 90mm, the H-3566 packs 4 display interfaces, 5 serial ports, SATA 3.0, USB 3.0, Gigabit Ethernet, and dual MIPI-CSI — a feature set typically found on much larger boards.

• Massive Memory Support: Supports up to 8GB LPDDR4 memory — ample capacity for AI model loading, multitasking, and memory-intensive applications like face recognition databases and video analytics.

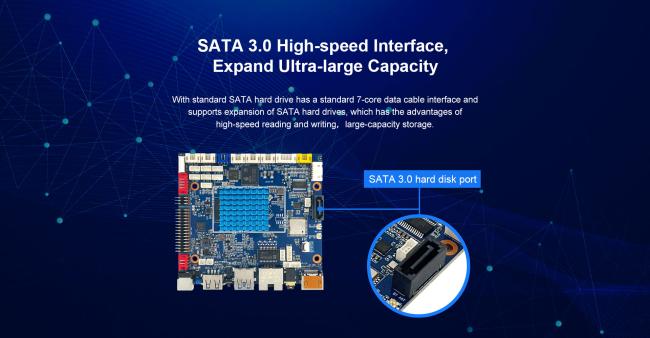

• SATA 3.0 for Large-Scale Storage: Standard SATA 3.0 port with power header enables connection to 2.5" or 3.5" HDDs/SSDs — perfect for local data logging, video storage, and large AI model datasets.

• USB 3.0 + Gigabit Ethernet: USB 3.0 delivers 10× faster data transfer than USB 2.0 for high-speed camera uploads and firmware updates, while Gigabit Ethernet ensures fast, reliable network connectivity.

Why Choose This Board?

• AI at the Edge, Not in the Cloud: The built-in 1 TOPS NPU enables face verification, object detection, and intelligent decision-making directly on the device — no cloud dependency, no latency, no recurring API costs, and user privacy is preserved.

• Dual Cameras for Advanced Verification: The dual MIPI-CSI interface supports stereo vision and liveness detection — essential for secure face verification applications where photo spoofing must be prevented.

• Compact Size, Maximum Capability: The H-3566 delivers enterprise-grade features — 4 displays, 5 serial ports, SATA 3.0, USB 3.0, Gigabit Ethernet, and dual cameras — in a 100mm × 90mm footprint. Perfect for space-constrained designs like compact self-service terminals and service robots.

• Future-Ready Memory Capacity: With support for up to 8GB LPDDR4, the H-3566 can handle demanding AI models, large face recognition databases, and complex applications without memory constraints — future-proof your product for evolving requirements.

• AI + Storage + Connectivity — All in One: The combination of NPU, SATA 3.0 for mass storage, USB 3.0 for fast data transfer, and Gigabit Ethernet for network connectivity makes the H-3566 a complete edge computing platform. No external modules needed for AI, storage, or high-speed networking.

• Delivery & Packaging





  Item	Details
  Packaging	Anti-static bag + foam padding + industrial carton
  MOQ	1 piece (sample order), 100+ for volume pricing
  Lead Time	3–5 working days for samples; 15–20 working days for bulk orders
  Shipping	DHL, FedEx, UPS, or by sea (customer's choice)
