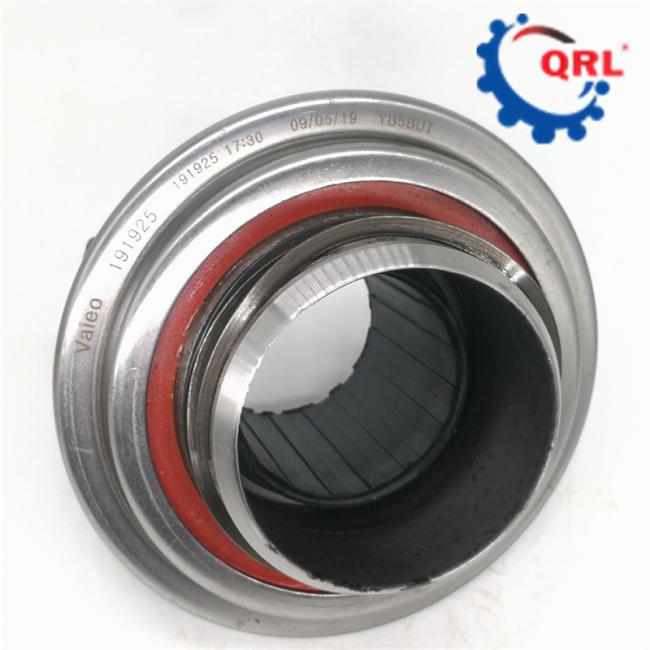

AZ9114160030 Clutch Release Bearing 191925 3.2KG For Howo
AZ9114160030 Clutch Release Bearing 191925 3.2KG For Howo
Clutch Release Bearing Specification
Part No.:AZ9114160030
Product Name:Clutch Release Bearing
Product Model:191925
Product specification:3.2KG
After Service:3 month Warranty
Product Material: Bearing Steel
Product Unit:Pcs
Product Advantages:Original quality standard
Clutch Release Bearing Description
Step on the clutch master cylinder - the hydraulic oil is escorted from the master cylinder cylinder to the clutch wheel pump - the wheel pump pushes the push rod forward when it is under pressure - resists the shift fork - the shift fork pushes the clutch pressure plate - (note that at this time, if the shift fork is different from If the clutch pressure plate that is rotating at high speed is combined, a bearing must be needed to eliminate the heat and resistance generated by direct friction, so the bearing installed in this position is called a release bearing) - The release bearing pushes the pressure plate to separate it from the friction plate and then cuts off power from the crankshaft.
Clutch Release Bearing Product number
| QRL No. | Parts No. | NSK | NTN | KOYO | NACHI |
| QRLMSB/1 | MD702241 | TK45-4BU3 | SF0914/4E | RCT45-1S | 45TMK-1 |
| QRLMSB/2 | MD701283 | 24TK308B2 | SF0816/2E | RCT38SL1 | BC12S4SB |
| QRLMSB/3 | MD706180 | 48TKA3201 | FCR48-11/2E | RCT322SA | 48SCRN32K |
| QRLMSB/4 |
MD719469 MR195689 |
FCR55-17-8.9.10. 11/2E |
RCTS325SA | ||
| QRLMSB/5 | MD703270 | 55TKA3201 | FCR55-1/2E | RCTS324SA | |
| QRLMSB/6 |
ME602710 ME600576 ME605584 |
58TKA3702U3 58TKA3703/B |
RCT371SA | ||
| QRLMSB/7 | ME620330 | TK55-1A1U3 | 55TMK804X/2E | CT55BL1 | 55TMK804 |
| QRLMSB/8 | 03452-21001/3/84/85 | TK70-1A1U3 | SF1412/2E | CT70B/L1 | 70TNK-1 |
| QRLMSB/9 | MR145619 |
FCR54-60-10/2E FCR54-60-13/2E |
|||
| QRLMSB/10 | ME615140 | RCT4700SA | |||
| QRLMSB/11 | MN171419 | RCT3200SA1 |
Clutch Release Bearing Delivery
business scope includes trucks, buses, construction machinery and construction machinery.
The models involved include Sinotruk, Shaanxi, Dongfeng, FOTON, CAMC, Beiben, FAW, Kinglong, Yutong, Higer, Xugong, Lonking, Shantui, Liugong, XGMA, SDLG, Zoomlion, etc.At the same time, has long-term and in-depth cooperation with a large number of OEM manufacturers in China.
