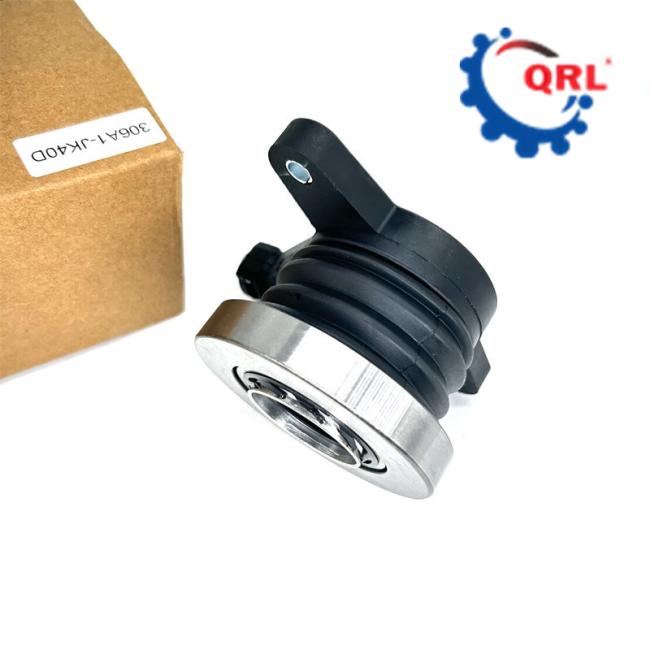

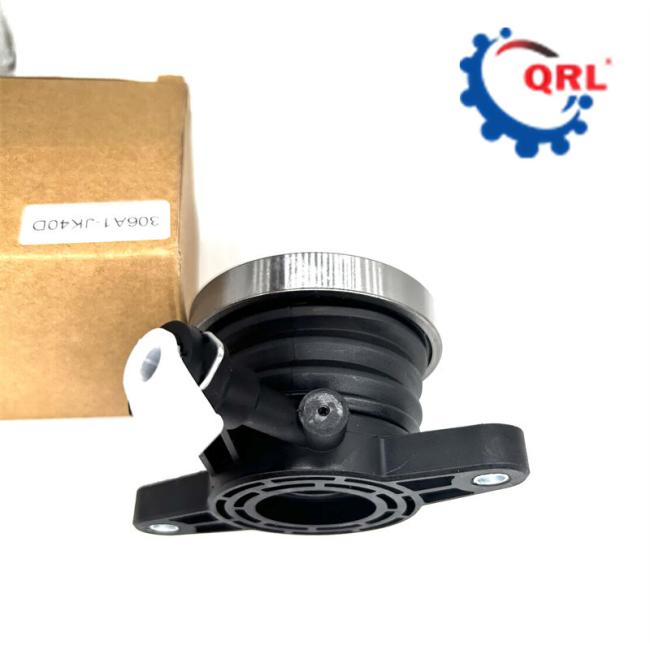

306A1-JK40D Clutch Release Bearing And Slave Cylinder Assembly For Nissan
For Nissan 306A1-JK40D Clutch Release Bearing and Slave Cylinder Assembly
Clutch Release Bearing And Slave Cylinder Specification
Part Number: 306A1-JK40E
Supersession(s): 306A1-JK40A; 306A1-JK40C; 306A1-JK40D; 306A1JK40E
Clutch Release Bearing And Slave Cylinder Description
Clutch Release Bearing And Slave Cylinder Description
Step on the clutch master cylinder - the hydraulic oil is escorted from the master cylinder cylinder to the clutch wheel pump - the wheel pump pushes the push rod forward when it is under pressure - resists the shift fork - the shift fork pushes the clutch pressure plate - (note that at this time, if the shift fork is different from If the clutch pressure plate that is rotating at high speed is combined, a bearing must be needed to eliminate the heat and resistance generated by direct friction, so the bearing installed in this position is called a release bearing) - The release bearing pushes the pressure plate to separate it from the friction plate and then cuts off power from the crankshaft.
Clutch Release Bearing And Slave Cylinder Product number
| QRL No. | Parts No. | NSK | NTN | KOYO | NACHI |
| QRLMSB/1 | MD702241 | TK45-4BU3 | SF0914/4E | RCT45-1S | 45TMK-1 |
| QRLMSB/2 | MD701283 | 24TK308B2 | SF0816/2E | RCT38SL1 | BC12S4SB |
| QRLMSB/3 | MD706180 | 48TKA3201 | FCR48-11/2E | RCT322SA | 48SCRN32K |
| QRLMSB/4 |
MD719469 MR195689 |
FCR55-17-8.9.10. 11/2E |
RCTS325SA | ||
| QRLMSB/5 | MD703270 | 55TKA3201 | FCR55-1/2E | RCTS324SA | |
| QRLMSB/6 |
ME602710 ME600576 ME605584 |
58TKA3702U3 58TKA3703/B |
RCT371SA | ||
| QRLMSB/7 | ME620330 | TK55-1A1U3 | 55TMK804X/2E | CT55BL1 | 55TMK804 |
| QRLMSB/8 | 03452-21001/3/84/85 | TK70-1A1U3 | SF1412/2E | CT70B/L1 | 70TNK-1 |
| QRLMSB/9 | MR145619 |
FCR54-60-10/2E FCR54-60-13/2E |
|||
| QRLMSB/10 | ME615140 | RCT4700SA | |||
| QRLMSB/11 | MN171419 | RCT3200SA1 |
Clutch Release Bearing And Slave Cylinder Delivery
Dets vigtigste produkter er koblingsudløsningsleje, remstrammer, central slavecylinder og vakuumpumper. Produkterne indeholder tusinder af sorter, der imødekommer behovene i indenlandske, europæiske, amerikanske, japanske, koreanske systemer osv. QRL rked ved eksporterer til 65 lande og regioner.
