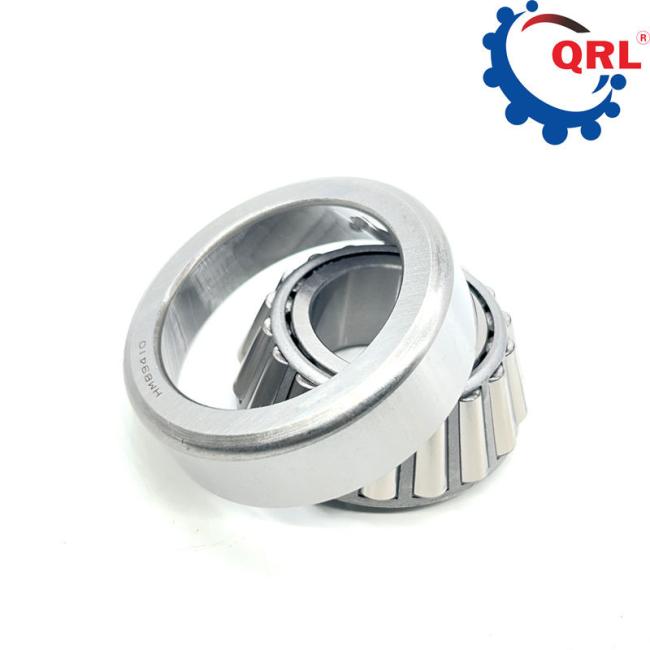

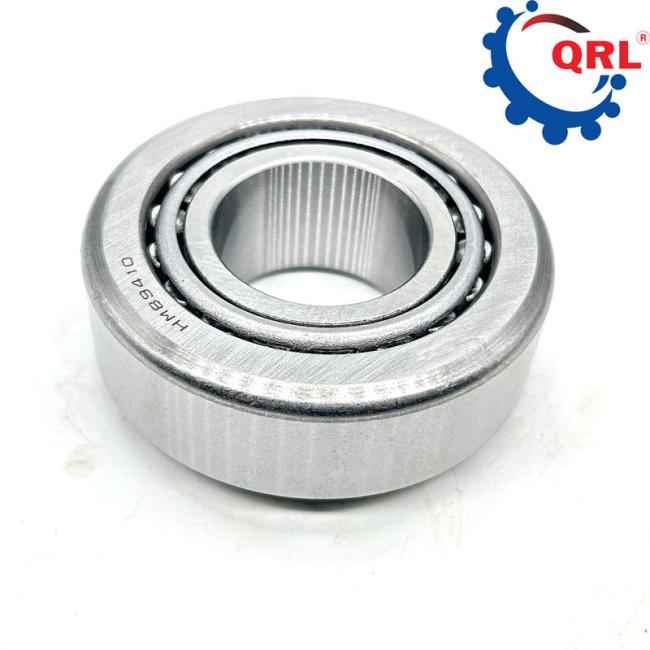

HM89446-HM89410 HM89446/10 Tapered Roller Bearing For Machinery
HM89446-HM89410 HM89446/10 Tapered Roller Bearing with Quality OEM-QRL
Tapered Roller Bearing Specification
| Main dimensions: | |||||
| d mm⁄inch | D mm⁄inch | T mm⁄inch | B mm⁄inch | Mass kg⁄lb | |
| 34.925 | 76.2 | 29.37 | 28.575 | 0.65 | |
| 1 3⁄8 | 3 | 1 5⁄32 | 1 1⁄8 | 1.433 | |
359A/354X Tapered Roller Bearing – TS (Tapered Single) Imperial. This is the most basic and most widely used type of tapered roller bearing.
It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring).
It is typically mounted in opposing pairs on a shaft.
Tapered Roller Bearing Product number
| TOYOTA | 90366-40016 | KOYO | 33008 JR |
| TOYOTA | 90366-40016 | KOYO | TRA 080702 |
| TOYOTA | 90366-40059 | KOYO | ST4090-N |
| TOYOTA | 90366-40064 | NACHI | 40KB681A1 |
| TOYOTA | 90366-40064 | KOYO | 33008 JR |
| TOYOTA | 90366-40077 | NSK | R 40-24SB |
| TOYOTA | 90366-40088 | KOYO | 30308 DJR |
| TOYOTA | 90366-40094 | NACHI | 40KB722 |
| TOYOTA | 90366-40094 | TIMKEN | NP014119/NP419902 |
| TOYOTA | 90366-40097 | NACHI | 40KC683 |
| TOYOTA | 90366-44001 | NACHI | 44KB721 |
| TOYOTA | 90366-45001 | KOYO | 30309DJR |
| TOYOTA | 90366-45016 | KOYO | 32211JR |
| TOYOTA | 90366-45035 | NSK | R45-33g |
| TOYOTA | 90366-48001 | KOYO | ST4890 |
| TOYOTA | 90366-48002 | KOYO | ST4870 |
| TOYOTA | 90366-50001 | NACHI | 50 KB8301 |
| TOYOTA | 90366-50007 | KOYO | TR100802-2 |
| TOYOTA | 90366-50054 | NACHI | 32010 JA1 |
| TOYOTA | 90366-50087 | KOYO | 32010JA1/50KB102 |
| TOYOTA | 90366-51001 | KOYO | ST5186LFT |
| TOYOTA | 90366-54011 | KOYO | ST5487-N |
Taper Roller Bearings Applications
Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing application can be achieved.
