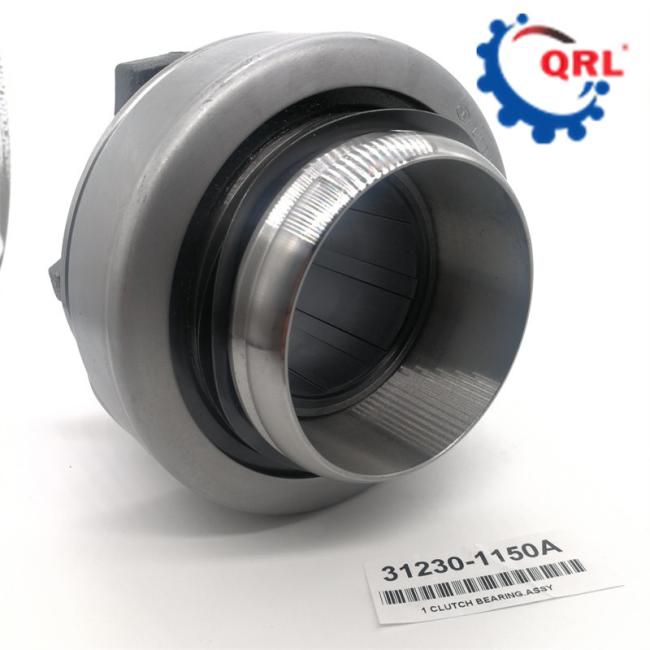

Clutch Release Bearing 31230-1150A 31230-E0030 For HINO 700 For DAF XF105
Clutch Release Bearing 31230-1150A 31230-E0030 For HINO 700 For DAF XF105
Clutch Release Bearing Specification
| Type | 3151000034 truck clutch release bearing 31230-1150A for DAF |
| Size | Inner Diameter: 60.8 mm Contact Dia. D0: / Contact Outer Dia. D1: / Contact Inner Dia D2: / Assemble Height T0: 88.5 mm Total Height T1: 110 mm Shift fork length L: 77.8 mm Weight : 2.85 kgs |
| Brand | SI, PPB |
| Place of Origin | Zhejiang, China |
| Certification | ISO9001, TS16949 |
| Warranty | 12 months or 30,000 Kms |
| Application | DAF, HINO, MAN, VAN, HOOL |
Clutch Release Bearing Description
Step on the clutch master cylinder - the hydraulic oil is escorted from the master cylinder cylinder to the clutch wheel pump - the wheel pump pushes the push rod forward when it is under pressure - resists the shift fork - the shift fork pushes the clutch pressure plate - (note that at this time, if the shift fork is different from If the clutch pressure plate that is rotating at high speed is combined, a bearing must be needed to eliminate the heat and resistance generated by direct friction, so the bearing installed in this position is called a release bearing) - The release bearing pushes the pressure plate to separate it from the friction plate and then cuts off power from the crankshaft.
Clutch Release Bearing Product number
| QRL-1044 | 09269-33001 | SKF=VKC3564 |
| 09269-33002 | BCA=614056 | |
| 09269-33003 | LUK=500032960 | |
| 09269-35004 | NTN=FCR50-30-2 | |
| 23265-77D00 | ||
| 23265-77500 | ||
| QRL-1066 | 09269-35003 | SKF=VKC3509 |
| 09269-35005 | BCA=613001 | |
| 09269-53003 | LUK=500030260 | |
| NSK=35TMK29B2 | ||
| QRL-1081 | 09269-28004 | SKF=VKC3567 |
| 09269-28005 | BCA=614050 | |
| 09269-53004 | LUK=500032560 | |
| KOYO=RCT283SAF |
Clutch Release Bearing Delivery
Before the contract is placed, the Payment, LASER MARK, plastic bag, box, sticker, carton, carton mark, pallet should be discussed into details. After the order is placed, the products must be manufactured as description. Best quality with acceptable price is our service for all customers. as the deadline is coming, after the payment, the packed goods would be sent to the right place.
