304 2205 904L ERW Stainless Steel Pipe Large Diameter 150mm
304 stainless steel pipe large diameter 304 stainless steel pipe ERW stainless steel pipe
Stainless steel pipe is a hollow elongated round steel material, which is widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial pipelines and mechanical structural components. In addition, when the bending and torsional strength are the same, the weight is lighter, so it is also widely used in the manufacture of mechanical parts and engineering structures. It is also commonly used as furniture and kitchen utensils.
| Product Name | Stainless steel pipe |
| Standard | ASTM AISI DIN, EN, GB, JIS |
| Steel Grade | 200 Series: 201,202 300 Series: 301,304,304L,316,316L,316Ti,317L,321,309s,310s 400 Series: 409L,410,410s,420j1,420j2,430,444,441,436 Duplex Steel: 904L,2205,2507,2101,2520,2304 |
| Outer Diameter | 6-2500mm(as required) |
| Thickness | 0.3mm-150mm (as required) |
| Length | 2000mm/2500mm/3000mm/6000mm/12000mm(as required) |

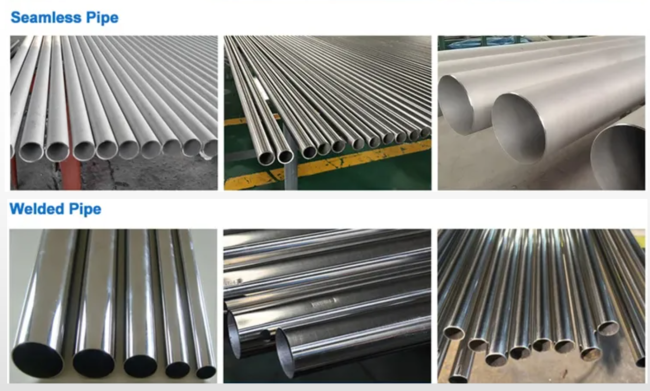

| Technique | Seamless/Welded |
| Surface | No.1 2B BA 6K 8K Mirror No.4 HL |
| Tolerance | ±1% |
| Price Terms | FOB,CFR,CIF |
The company's main business is: stainless steel plate, stainless steel pipe, stainless steel bar, round steel, angle steel, channel steel, square steel, hexagonal steel, I-beam, flange, head, valve, valve welding material, decorative material, various stamping and Various pipe fittings such as screw fittings can be made without calibration.
| Description | ||
| Standard | ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605, GB13296 |
|
| Material | 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201, 202 |
|
| Surface | Polishing,annealing,pickling,bright | |
| Type | hot rolled and cold rolled | |
| stainless steel round pipe/tube | ||
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 6mm-2500mm (3/8"-100") | |
| stainless steel square pipe/tube | ||
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 4mm*4mm-800mm*800mm | |
| stainless steel rectangular pipe/tube | ||
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 6mm-2500mm (3/8"-100") | |
| Length | 4000mm,5800mm,6000mm,12000mm,or as required. | |
| Trade terms | Price terms | FOB,CIF,CFR,CNF,Ex-work |
| Payment terms | T/T,L/C,westen union | |

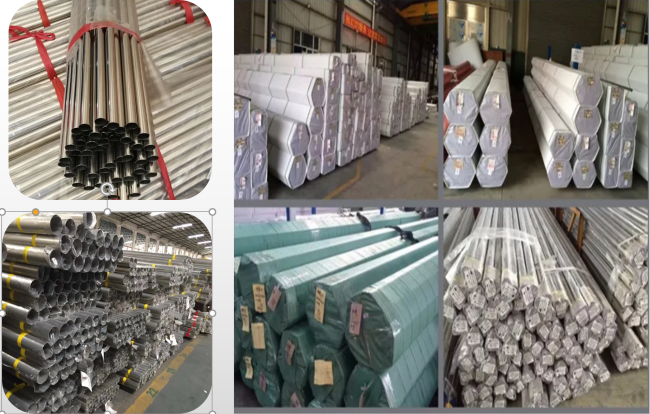

| Package | Standard export seaworthy package,or as required. | |
| Application | Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields. Pipes also can be made according to the customer's required. |
|
| Container size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
|
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Guide to ordering products
Users need to provide the following information when placing an order
01. Product Name (Stainless Steel Sheet or Stainless Steel Coil)
02. Product standard number
03. Steel grade
04. Product specification and dimensional accuracy (including thickness, width and length)
05. Edge status
06. Surface quality level
07. Plate shape accuracy
08. Type, coat weight and surface treatment in the case of coated products
09. Surface structure in the case of hot dip galvanized products
10. Weight
11. Packaging method
12. Application
13. Other special requirements
EDEST STEEL CO.,LTD is located in Wuxi City, Jiangsu Province, China, nearly to Shanghai. We are a professional manufacturer of stainless steel, carbon steel, tinplate and related products. We have been deeply involved in the steel industry for more than 20 years and has rich industry experience. Integrates production, processing, trade, warehousing, distribution and after-sales service. Over the years, the company has been adhering to the principle of "Quality First, Honesty First", and has established good cooperative relations with many domestic and foreign customers.
Our company mainly engaged in stainless steel plates, stainless steel coils, stainless steel pipes, stainless steel strips, stainless steel profiles, and other stainless steel products, as well as carbon steel pipes, carbon steel coils, (SMLS pipe/ERW/LSAW/SSAW), tinplate (TFS/ETP), petrochemical steel pipes, Heat-resistant steel, super duplex steel, copper, aluminum and other products.
