Cylindrical Lithium Ion Bike Battery , 3.2V 3400mAh Low Temperature Lifepo4 Battery
Lifepo4 Lithium Iron Phosphate Low Temperature Lithium Ion Battery
1. Description :
- Cylindrical LiFePO4 cells/lithium battery’s nominal capacity 3400mAh which means 0.5C constant current discharge to 2.0V, Minimum capacity 3350mAh which means 0.5C constant current discharge to 2.0V.
- Charge method is CC-CV,it means constant current and constant voltage charging. Standard charging current 3400mA (1.0C) while temperature between 0～45℃
2. Applications: e-bike,e-scooter and other circumstances
3. Specifications:
| Item | Feature | Remark |
| Nominal capacity | 3400mAh | 0.5C constant current discharge to 2.0V |
| Minimum capacity | 3350mAh | 0.5C constant current discharge to 2.0V |
| Nominal voltage | 3.2V | Single cell |
| Charge cut-off voltage | 3.65V | Single cell |
| Discharge cut-off voltage | 2.0V | Single cell |
| Charge method | CC-CV | Constant current and constant voltage charging |
| Standard charging current | 3400mA (1.0C) | 0～45℃ |
| Maximum continuous charge current | 17000mA(5.0C) | Room temperature |
| Maximum continuous discharge current | 17000mA (5.0C) | Room temperature |
| Operation temperature |
Charging temp 0～45℃ Discharging temp –40～60℃ |
Ambient temperature |
| Storage temperature |
Within 1 month 10～25℃ Within 6 months 10～25℃ |
Humidity: RH60±15% in a cool and dry environment |
| Internal impedance | ≤15mΩ | 1KHz AC method measurement |
| Weight | ≤86.0g | |
| Storage voltage | 3.25-3.35V | 40%～60 charged electricity |
4. Feature advantages :
1. Excellent performance: lifepo4 battery has long cycle span, with 2000-5000 cycles times.
2. Durable: lifepo4 battery have about 6-10 years using period, and all Elite batteries have more than 3 years warranty.
3. High safety: Even at high temperature or overcharge, lithium iron phosphate will not collapse and heat or form strong oxidizing substances like lithium cobaltate.
4. No toxic material contained,which is environmentally friendly.
5. Without memory effect, with high retention rate and low-self discharge rate.

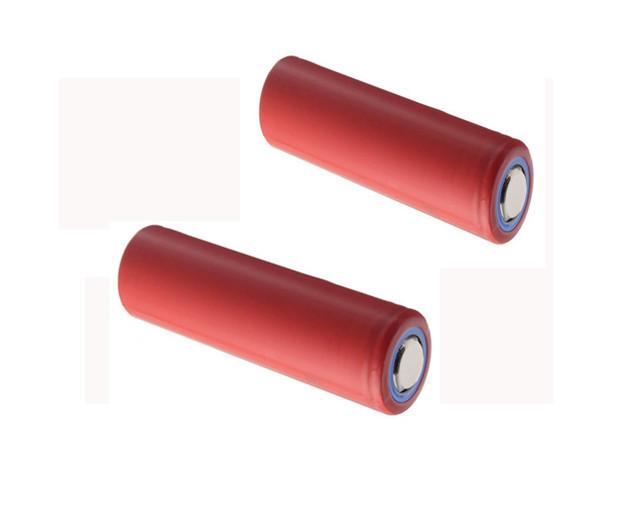

5. Picture
