Model Airplanes NMC 3C Lithium Ion Battery Cell 18650 3.7v 2500mAh A Grade
Price:
negotiable
MOQ:
100pcs
Delivery Time:
based on the quantity
Brand:
JW
Product Description
3C High Rate Power Lithium Ion Battery Cell 18650 3.7v 2500mAh
1. Description :
- high-quality A-grade batteries, high capacity, low internal resistance, and can be discharged with high current
- long cycle life, after 500 times of continuous charge and discharge, the battery capacity is not less than 85% of the rated capacity, no memory effect, can be charged and discharged at any time
- overcharge and overdischarge protection, PTC resistance protection, explosion protection
2. Applications : electronic cigarettes, mobile power supplies, power tools, model airplanes, household products, electronic products, medical equipment, instruments, etc.
3. Specifications :
|
Items
|
Specifications
|
|
Size
|
18*65(mm)
|
|
Charge voltage
|
4.2V
|
|
Nominal voltage
|
3.7V
|
|
Nominal capacity
|
2500mAh
|
|
Charge current
|
Standard Charging::0.5C
|
|
Rapid charge:1.0C
|
|
|
Standard Charging method
|
0.5C CC(constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to≤0.05C
|
|
Charging time
|
Standard Charging:2.0hours(Ref.)
|
|
Rapid charge:1hours(Ref.)
|
|
|
Max.charge current
|
1C
|
|
Max.discharge current
|
3C
|
|
Discharge cut-off voltage
|
2.75V
|
|
Operating temperature
|
Charging:0℃~45℃
|
|
Discharging:0℃~45℃
|
|
|
Storage temperature
|
-20℃~ +60℃
|
|
Cell Weight
|
Approx:46g
|
4. Feature advantage :
- high quality
- quality assurance
- stable performance
- high safety
- low internal resistance
- long cycle life

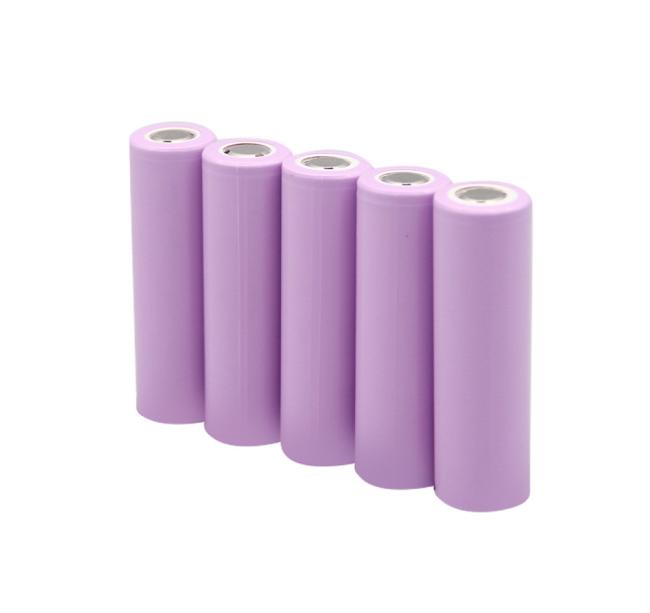

5. Picture
