3C Lithium Ion Battery Cell
Price:
negotiable
MOQ:
100pcs
Delivery Time:
based on the quantity
Brand:
JW
Product Description
3C High Charge Rate Lithium Ion Battery Cell Lifepo4 Pouch Cell
1. Description :
- The below technical specification represents a parameter of how long it takes to fully charge a normal and a high c-rate battery. A high c-rate battery fast charging at 3C. It takes one hour to fully charge. The fastese charge time is only 19 minutes.
- Most consumer applications require only 0.5C from their batteries. If you need higher discharge rates and faster charging times, you should definitely choose a high rate battery instead.
2. Applications :
High-rate batteries are widely used in a variety of fields, such as with drones for aerial and agricultural plant protection purposes,emergency power supplies, model aircraft(RC), power tools and more.
3. Specifications :
|
No.
|
Item
|
General Parameter
|
Remark
|
|
1
|
Model
|
282138P
|
|
|
2
|
Nominal Capacity
|
10Ah
|
|
|
3
|
Nominal Voltage
|
3.2V
|
|
|
4
|
Weight
|
258g
|
|
|
5
|
Dimension
|
12*82*138 mm
|
|
|
6
|
Charge
|
Standard Charge Current 10.0A
Maximum Charge Current 30.0A
Charge Cut-off Voltage 3.6V
|
Charge time : Approx 1h,fast charge approx 0.3hours
|
|
7
|
Discharge
|
Continuous Discharge Current 30.0A
Fast Discharge Current 100.0A(10min)
Purlse Discharge Current:300.0A(5S)
Discharge Cut-off Voltage 2.0V
|
|
|
8
|
Operation Temperature
|
Charge Temperature 0~45℃
Discharge Temperature-15~60℃ |
4. Feature advantage :
- high charge rate 1C 3 C
- fast charge
- Good safety performance and safety tests
- low internal resistance
- widely usable situaltion , tools and equipments

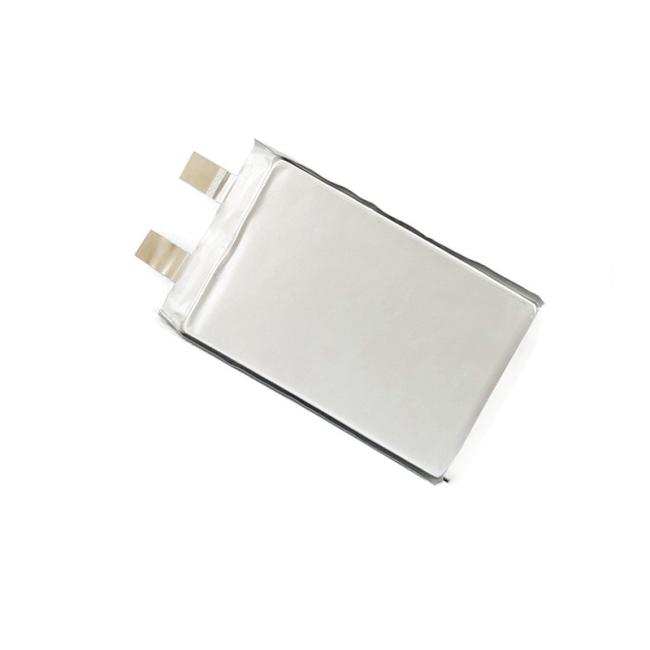

5. Picture
