China Prismatic Lithium Iron Phosphate Battery for sale

Prismatic Lithium Iron Phosphate Battery

Price Negotiable

Price: negotiable

MOQ: 100pcs

Delivery Time: based on the quantity

Brand: JW

Product Description

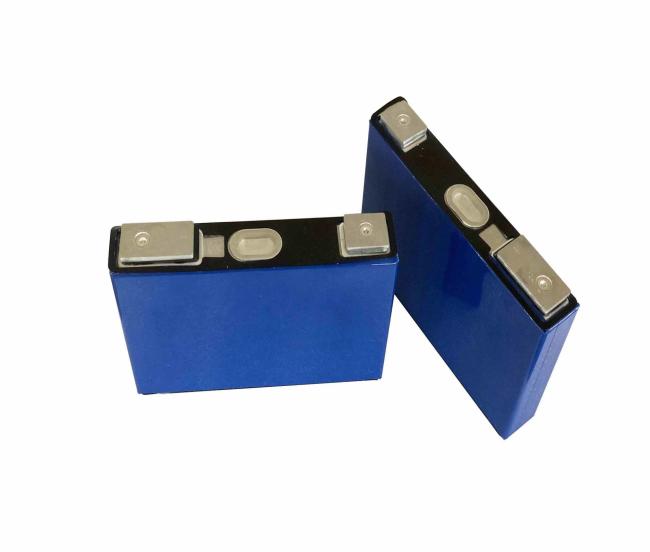

High Energy Density Lfp Lithium Ion Battery Prismatic Lifepo4 3.2v 52ah

1. Description :

We sells and distributes large format Lithium Ion batteries with phosphate based chemistry, which is well accepted as the safest chemistry in the industry. And compared to NMC chemistry based, the lithium iron phoshate have safety natural feature.
Unique safety valve design allows cells to instantly release internal pressure in abuse conditions, such as nail penetration and short circuit conditions. The cells are fully tested and certified per UL, CE and SAE standards. Large form factor makes battery formation simple and low cost.

2. Applications :

Widely used in a variety of fields, such as with drones for aerial and agricultural plant protection purposes,emergency power supplies, model aircraft(RC), power tools and more.

3. Specifications :

Item	Parameters
Nominal Capacity	52Ah
Nominal Voltage	3.2V
Weight	0.97kg
AC Impedance	≤0.80mΩ
Cycle Life	>2000 times
Self-discharge Rate	≤5%
Charging Mode	CC&CV
Standard Charge Currrent	10.4A
Max. Continuous Charge Current	1C(52A)
Limited Voltage	3.65V
Cut-off Charge Current	3.2A
Standard Discharge Current	26A
Max. Continuous Discharge Current	1C(52A)
End Voltage	2.5V
Operation Temperature	Charge: 0℃~45℃
Operation Temperature	Discharge: _20℃~55℃
Storage	-10~45℃
Storage	25%~85%RH
