China 3000mAh 12v 18650 Lithium Ion Battery Pack Electric Tools Use for sale

3000mAh 12v 18650 Lithium Ion Battery Pack Electric Tools Use

Price Negotiable

Price: negotiable

MOQ: 500pcs

Delivery Time: based on the quantity

Brand: JW

Product Description

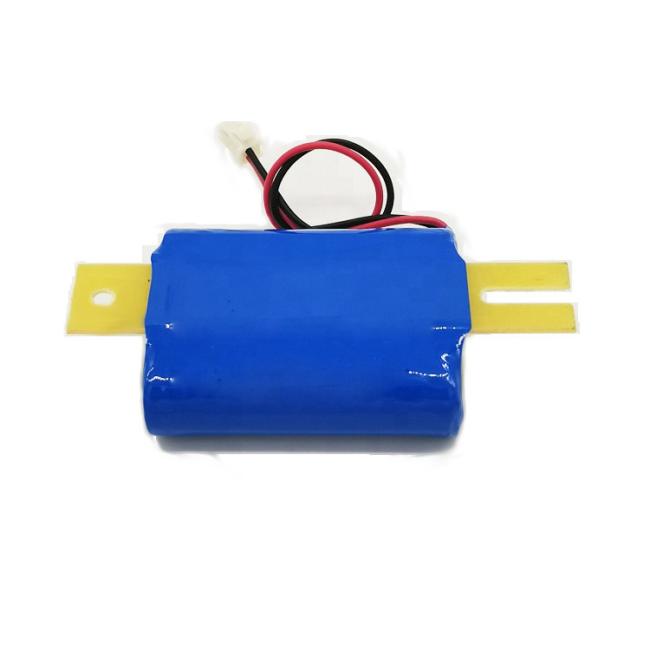

18650 Battery Pack 12v Lithium Ion Battery Pack For Electric Tools

1. Description :

The size of 18650 battery is 18mm in diameter, 65mm in height, capacity from 1300MAH to 3200MAH, it can be produced, 1C-5C current discharge, small internal resistance, light weight, stable performance, sufficient capacity, long cycle life and many other excellent properties. The nominal voltage of a single cell is generally: 3.6V or 3.7V. The charging voltage is generally: 4.20V, and the minimum discharge termination voltage is generally 2.75V. Lower than this voltage will easily cause a serious drop in battery capacity or even scrap. The maximum charge termination voltage is 4.20V.
In order to adapt to more products and ensure the appearance of the whole battery is better, and the battery is more resistant to falling, we have a variety of solutions equipped with protective plates. The protection board and the battery cooperate closely, which effectively ensures that the electronic components on the protection board will not be squeezed by the battery when the battery is dropped. Specially equipped with pointed 18650 battery for lamps and lanterns users.

2. Applications :
It can be used alone or combined according to customer requirements (such as two combinations of 7.4V, 11.4V, 14.8V, etc.), especially suitable for LED flashlights, stage lighting equipment, laptop batteries, portable DVD power supplies, and miner’s lamps , Audio, model aircraft, power tools, toy cars, backup power supplies and other high-tech digital products.

3. Specifications :

Product Name	Lithium ion battery pack (could be customized)
Model	18650
Rated Capacity	3000mAh
Nominal Voltage	11.1V
Working Current	2.0-5.0A
Over discharge protection voltage	2.50V ± 0.025V /CELL
Over charge protection voltage	4.25V ± 0.025V /CELL
MAX Charge voltage	12.60-12.90V
charge current	0.8-2.0A
Charge temp.	0~45℃,45~85%RH
Discharge temp.	-20~55℃,45~85%RH
Storage temp. Humidity	Short-term: more than one month -20~+55℃, 45~85%RH Mid-term: more than three months -20~+45℃, 45~85%RH Long term: within one year
Weight	Approx 0.15kg
Cycle Characteristic	over 800 times
Product Size	18X20X195MM
