Mini Shipping Lipo 5ah 12v Lithium Ion Battery For Ups Light Weight
12 V Mini Ups 5ah Lipo Battery 12v 5ah Lithium Pin 12v 5ah Lithium Ion Battery
1. Description:
- our elite lithium ion battery has a nominal voltage at 12.8V, nominal capacity 5Ah, low internal resistance less than 10mΩ,a long cycle life which longer than 2000 cycles. Low self discharge rate monthly less than 3%, high charge efficiency at 100%.
- Discharge Cut-off Voltage 10V,Charge Temperature 0℃ to 45℃(32F to 113F)@60±25% Relative Humidity. Discharge Temperature -10℃ to 60℃(-4F to 140F)@60±25% Relative Humidity.Storage Temperature 0℃ to 40℃(32F to 104F)@60±25% Relative Humidity.
- Bluetooth function is optional.
2.A pplications: Home Appliances,Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Folk-lifts, electric vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
3. Specifications:
| Electrical Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | 5Ah | |
| Energy | 64Wh | |
| Internal Resistance | ≤10mΩ | |
| Cycle Life | >2000 cycles@1C 100% DOD | |
| Monthly Self Discharge | <3% | |
| Efficiency of Charge | 100%@0.5C | |
| Efficiency of Discharge | 96-99% @1C | |
| Standard Charge | Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) | |
| Recommend Charge Current | 1A | |
| Max. Charge Current | 5A | |
| Standard Discharge | Max. Discharge Current | 5A |
| Max. Pulse Current | 10A(10S) | |
| Discharge Cut-off Voltage | 10V | |
| Environmental | Charge Temperature | 0℃ to 45℃(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -10℃ to 60℃(-4F to 140F)@60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 40℃(32F to 104F)@60±25% Relative Humidity | |
| Water Dust Resistance | IP56 | |
| Mechanical | Cell&Method | 4S |
| Plastic Case | PVC | |
| Dimensions(in./mm.) | Customized | |
| Weight(lbs./kg.) | 0.7kg | |
| Terminal | M6 | |
| Bluetooth | Option |
4. Feature advantages:
1. Safety: safest Lithium battery, certificates approved
2. Clean and Green energy, no toxic material contained
3. Long life cycle:> 2000 times, 6-8 times of lead acid battery
4. No memory effect, highly efficient, charge anytime
5. Small size and light weight: 1/2 size& weight of lead acid battery
6. Good performance at high temperature
7. Low self-discharge rate: < 3% monthly

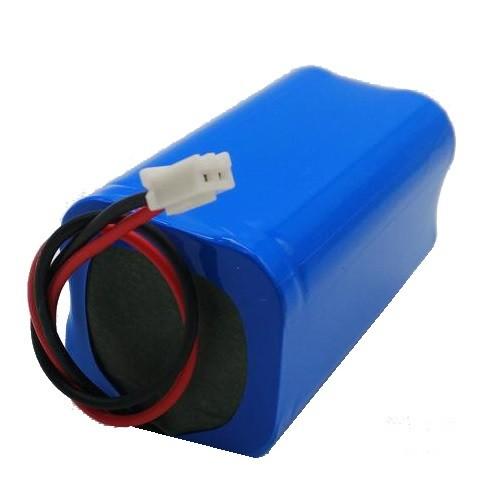

5. Picture
