RV Lithium Ion Golf Cart Battery , Lifepo4 12v 100ah Lithium Ion Battery
12V 100ah Lifepo4 Lithium Battery For RV/Solar System/Yacht/Golf Carts
1.Description:
1.Top quality ,best quality cell.
2.We offer Interconnects and screws.
3.Last over 3000 cycle times.
2.Applications:
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker ,electric forklift,motor tricycle ,electric tricycle,Yacht,Boat etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)
Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
Other Applications
♦ Security and Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
3.Specifications:
| Product name | Deep Cycle 12V 100ah Lifepo4 Lithium Battery for RV/Solar System/Yacht/Golf Carts Storage and Car |
| Model number | JW12100 |
| Weight | 11.5KG (24.5 lbs) |
| Size | 235*195*175mm (9.25*7.7*6.9 inches)(L*W*H) |
| Nominal Voltage | 12.8V |
| Nominal Voltage | 100Ah |
| Charge Voltage | 14V - 14.6V |
| Components | 4S2P or 4S1P or 4S4P |
| Peak Discharge (8 Seconds) | 200A |
| Continuous Charge / Discharge Rate | 100A |
| Capacity (amp hours) | 200AH |
| Capacity (watts) | 1280W |
| Chemistry | Lithium Iron Phosphate (LiFePO4) Cell |
| Cycle life | 2500 times 80%dod |
| Depth of Discharge | 100% DOD |
| Self Discharge | ≤3% per month |
| Cell Type | Prismatic or Pouch cell LifePO4 Type |
| Modular | Parallel Connection or Series Connection |
| Connector | M8 M6 SCREWS or Aderson Connector with Cable |
| Display | Voltage V /Capacity % with button available |
|
Discharge Temperature Charge Temperature Storage Temperature Water Dust Resistance |
0℃ to 45℃(32℉ to 113℉) 20℃ to 60℃(-4℉ to 140℉) 0℃ to 45℃(32℉ to 113℉) IP56 or IP67 available |
| BMS Function |
Battery Protection Management System Automatic Low Voltage Disconnect Short Circuit Protection Over Voltage Protection Over Current Protection Over Charge Protection Over Discharge Protection Over Temperature Protection Internal Cell Balancing |
4.Feature advantages:
1. Longer life cycle;
2. Portable with Small size and light weight;
3. Good discharge performance;
4. More safe and environmental protection;
6. Higher power discharge;
7.Higher temperature resistance.

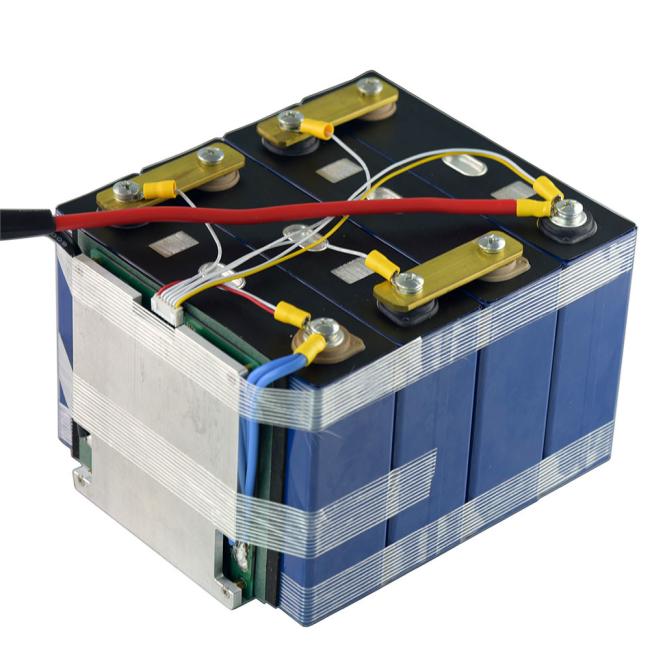

5.Picture:
