Lifepo4 Bms Lithium Ion Golf Cart Battery , ISO9001 48v 30ah Lithium Battery
Golf Cart Li Ion Battery Pack 48v 30ah Lifepo4 Battery Bms 48v
1. Description:
1. the groove design can be easily carried with its grooves on both side of the upper cover
2. the positive and negative terminals are glued and well sealed.
3. Pure brass terminals are rust resistence and power supply guarantee.
2. Applicaitions:Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
3.Specifications:
| Battery Model | 48v 30ah |
| Nominal Voltage (V) | 48v |
| Nominal Capacity (AH) | 30ah |
| Source Resistance (mΩ) | about 20 |
| Cell Specification | 3.2V 12.5AH |
| Cell Combination | 3-parallel 16-series |
| Cell Size | 32138 |
| Cell Quantity (parallel*series) | 48pcs |
| Discharge Cutoff Voltage (V) | 40+/- 1V |
| Charge Cutoff Voltage (V) | 58.4v |
| Rated Discharge Current (A) | 20A |
| instantaneous Maximum Discharge Current (A) | 20A |
| Maximum Continuous Discharge Current (A) | 20A |
| Maximum Continuous Charge Current (A) | 5A |
| Charge Mode | CC-CV |
| Standard Charge Current (A) | 5A |
| Charge Time under Standard Charge Current | 5hours |
| Fast Charge Current (A) | 5A |
| Charge Time under Fast Charge Current | 2hours |
| Charge Temperature Range | -20-55°C |
| Cell Size (L*W*T ) | 405*175*240 |
| Battery Weight | About 16KG |
| Battery Power | 1440W |
4. Feature advantages:
1. Cells - A grade cells to make sure batteries in high and full capacity
2. Protection - Dual IC chips, that can anti-short circuit, anti-over charge,anti-over current, anti-overload
3. Compose Type : Injection Technology to make battery more stable.
4. Certifications : CE,UL,FCC, RoHS, ISO9001
5. Long life cycle, No memory, environment friendly.

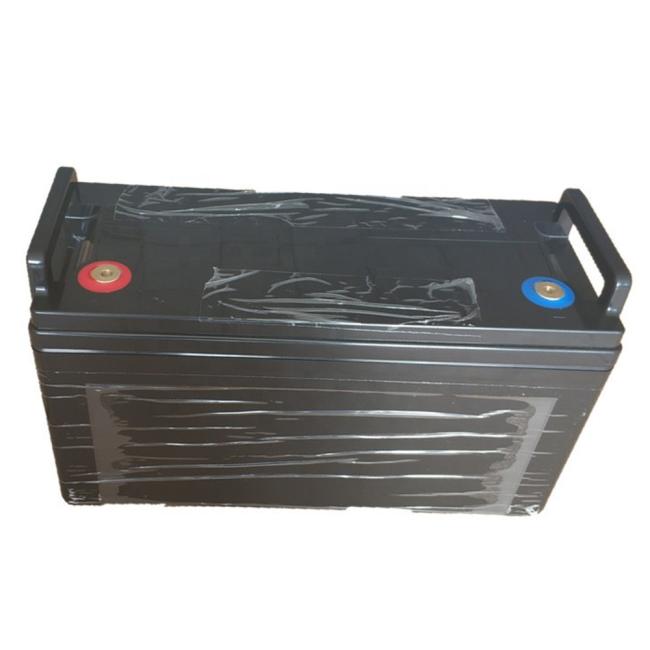

5.Picture:
