NCM Electric Tricycle Battery , 153Ah 3.7V High Capacity Lithium Ion Cells
High Capacity Lithium Ion Battery For Tricycle Motorcycle
1.Description:This Lithium ion battery with light weight and small size convenient to move ,low internal resistence rate. JW also provides customized batteries with different capacity, dimension and functions according to customer's specific requirements.
2.Applications:Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
3.Specifications:
| Rechargeable LiFePO4 Prismatic Battery For Solar/Wind/UPS/EV/Inverter/Backup Power Storage | |
| Model | 7914897-153Ah |
| Nominal Voltage | 3.7V |
|
Capacity |
Max: 153Ah Min : 150Ah |
| Charging Current |
Standard Charging: 0.2C Max. Charging: 1C |
| Max. Discharging Rate |
Max. Continuous Discharging: 2C Max. Peak Discharging: 5C |
| Cut-off Voltage |
Charging: 4.20V Discharging: 2.75V |
| Internal Resistance | ≤ 1mΩ (At 0.2C rate, 2.0V cut-off) |
| Dimensions | 79*148*97mm |
| Working Temperature |
Charging: -10℃~45℃ Discharging: -20℃~60℃ |
| Storage Temperature |
≤1month: -10–45℃ ≤3month: 0–30℃ ≤6month: 20±5℃ |
| Life Cycle | >2300 times (80% of initial capacity at 0.2C rate, IEC Standard) |
4.Feature advantages:
1. Longer life cycle;
2. Portable with Small size and light weight;
3. Good discharge performance;
4. More safe and environmental protection;
6. Higher power discharge;
7.Higher temperature resistance.

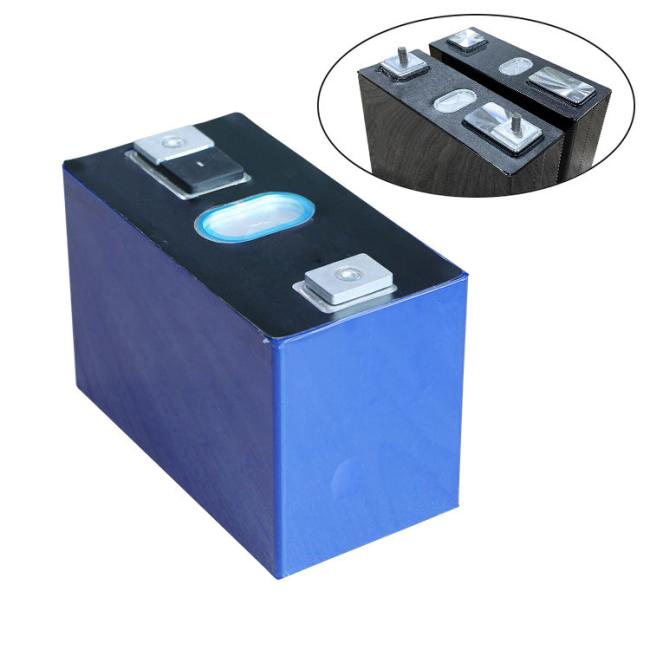

5. Picture:
